WARNING LAMPS AND BUZZERS

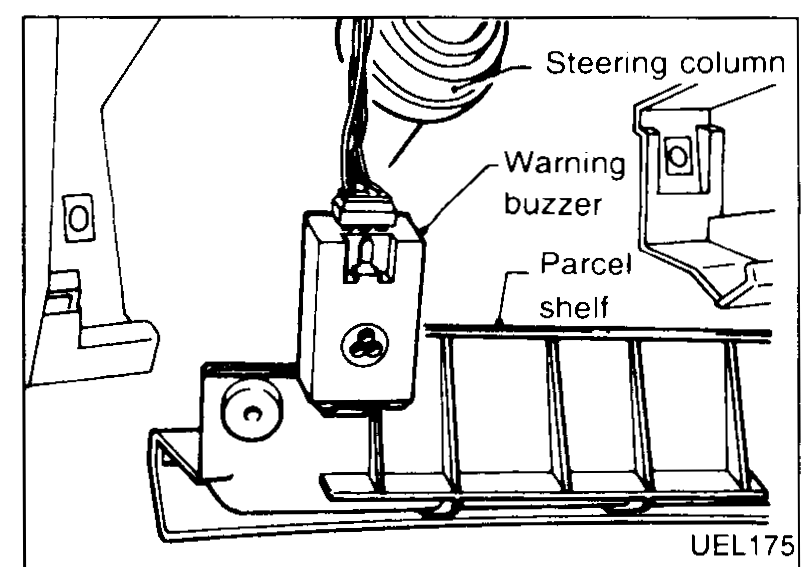

EL-95prose procedureWarning Buzzer — Location
The "Lights ON" and "N·CVT" Warning Buzzers are attached to the back of the instrument console parcel shelf, below the steering column.
NOTE
The Buzzer contains no serviceable parts, replace as a complete unit.
Warning Buzzer — Replacement
- 1Disconnect battery negative cable from battery.
- 2Remove screws (2 off) from driver side parcel shelf. (Refer to BF section)
- 3Pull shelf forward.
- 4Remove buzzer from bracket at rear of shelf.
UEL175 - 5Disconnect connector.
- 6Refit new buzzer in reverse sequence to removal.
