Exterior Lamps - Driving/Fog Lamp - Bulb Replacement / Replacement / Aiming
EL-66prose procedureDriving/Fog Lamp - Bulb Replacement
Driving/fog lamp bulb replacement
- 1
- 2

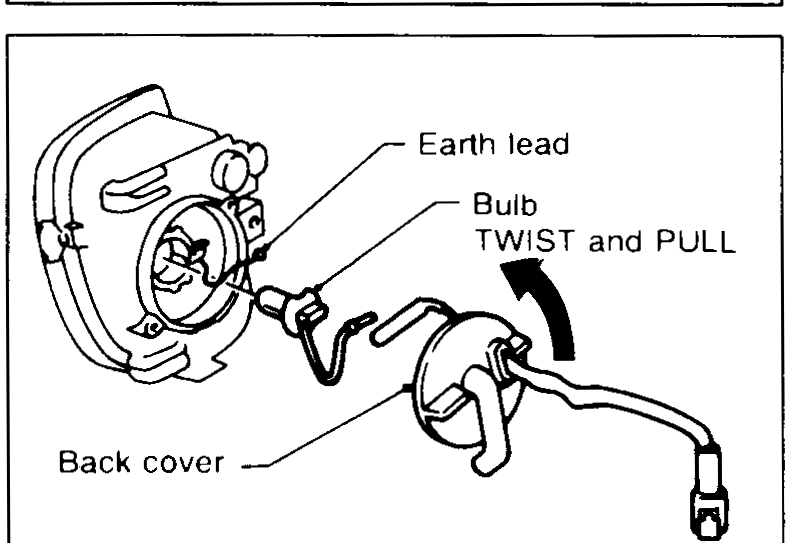

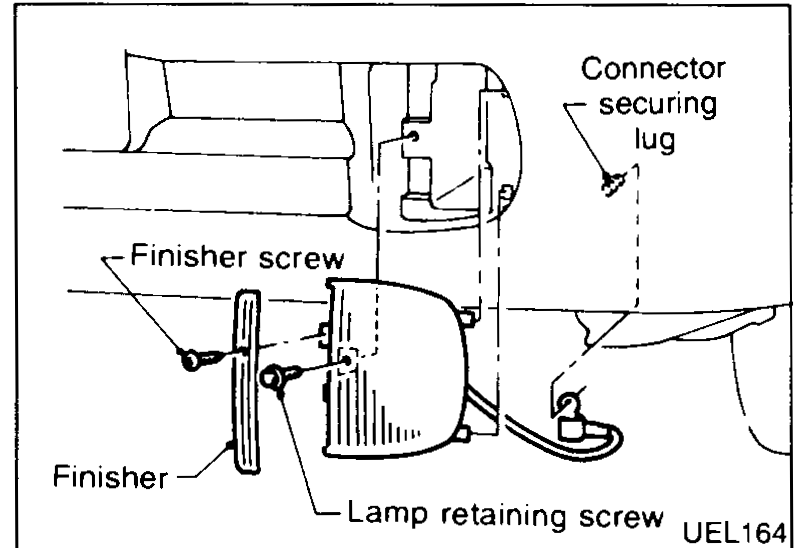

UEL164 - 3
- 4
- 5
UEL165 - 6
- 7
CAUTION
• Do not touch bulb directly.
• When re-fitting sealing cap on back of lamp, ensure it is in correct orientation to prevent water ingress.
| Specification | Value |
|---|---|
| Bulb | H4 12V 55W |
Bulb
H4 12V 55W
Driving/Fog Lamp - Replacement
Driving/fog lamp replacement
- 1
- 2
- 3
- 4
- 5
- 6
WARNING
• Refit new unit in reverse order to the above.
• Do not stick items onto lens.
• Do not allow plastic areas of lamp to come into contact with chemicals.
Driving/Fog Lamp - Aiming
Driving/fog lamp aiming
- 1
- 2

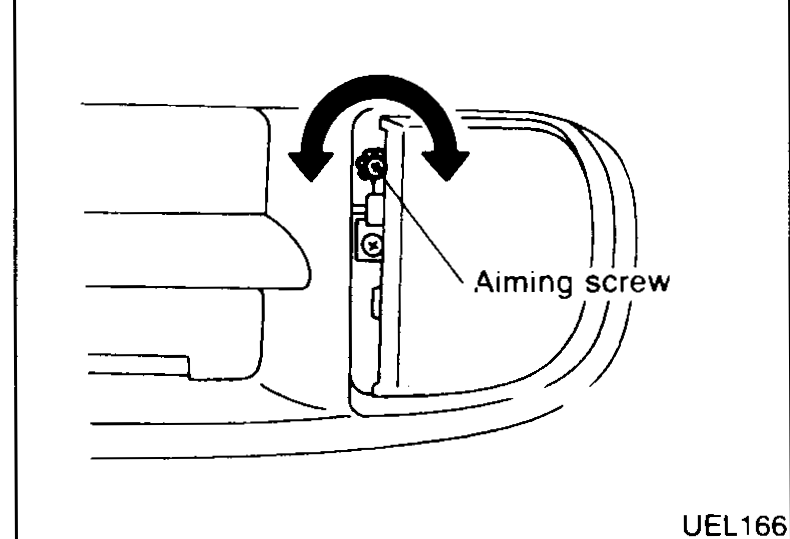

UEL166 - 3
NOTE
• When aiming the lamp do not cover any part of the lens.
