METER AND GAUGES — Fuel Tank Gauge Unit Check / Fuel Warning Lamp Sensor Check
EL-90prose procedureLow-fuel sensor is a thermistor that self-heats above ambient when uncovered — explains the 'short delay' before the lamp lights. Immersion in fuel cools it, dropping the lamp current.
Fuel Tank Gauge Unit Check
NOTE
• For removal of Fuel Tank Sender Unit, refer to FE section.
Check the resistance between terminals 1 and 2.
1
Ohmmeter (-)2
Float positionFull
Float position (mm)82.4
Resistance value (Ω)Approx. 4 - 6
1
Ohmmeter (-)2
Float position1/2
Float position (mm)29.4
Resistance value (Ω)32 - 34
1
Ohmmeter (-)2
Float positionEmpty
Float position (mm)-21.1
Resistance value (Ω)80 - 83
Fuel Warning Lamp Sensor Check

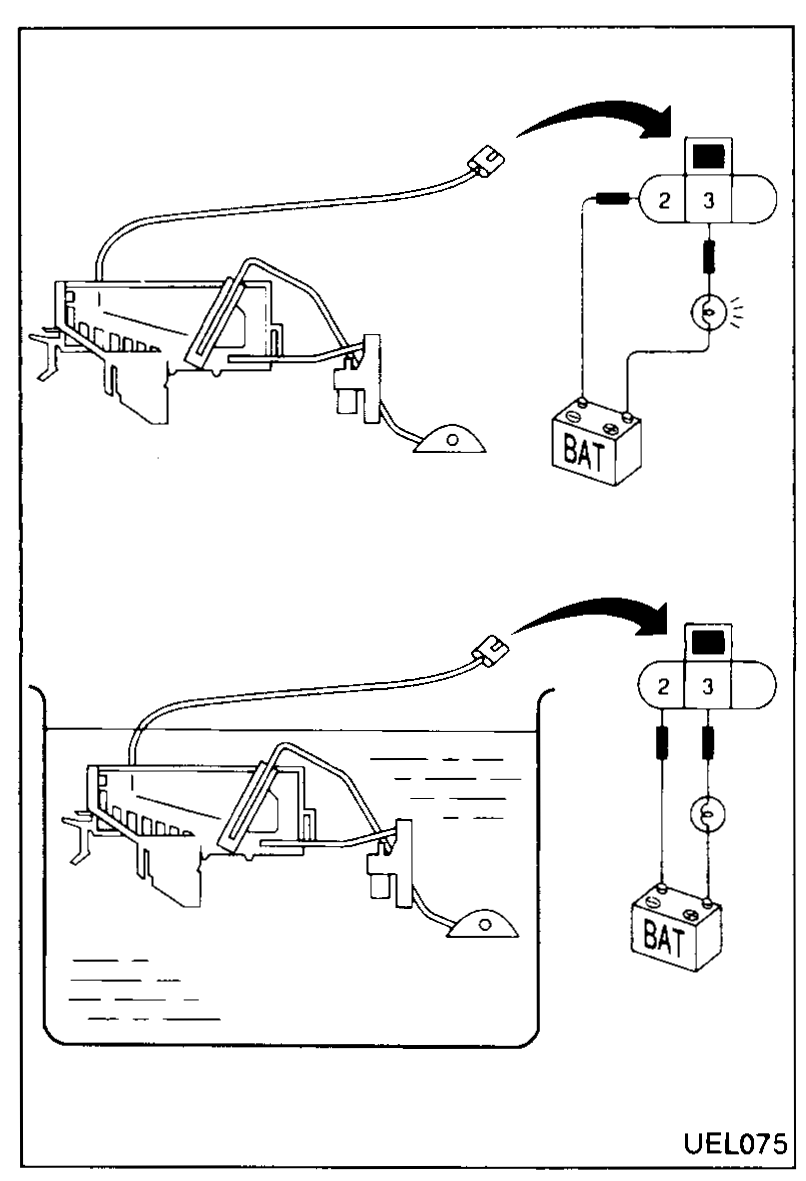

- 1Place a 12V - 3.4W test lamp from the battery positive terminal to terminal 3, with the Fuel Tank Sender Unit removed (refer to FE section), and a connecting wire from terminal 2 to battery − ve.
- The test lamp should light after a short delay.
UEL075 - 2Immerse the fuel tank sender unit so that the fuel low sensor is covered.
- The test lamp should be extinguished.
