POWER SUPPLY PROTECTION
EL-1002prose procedureFuses
- aIf fuse is blown, be sure to eliminate cause of problem before installing new fuse.

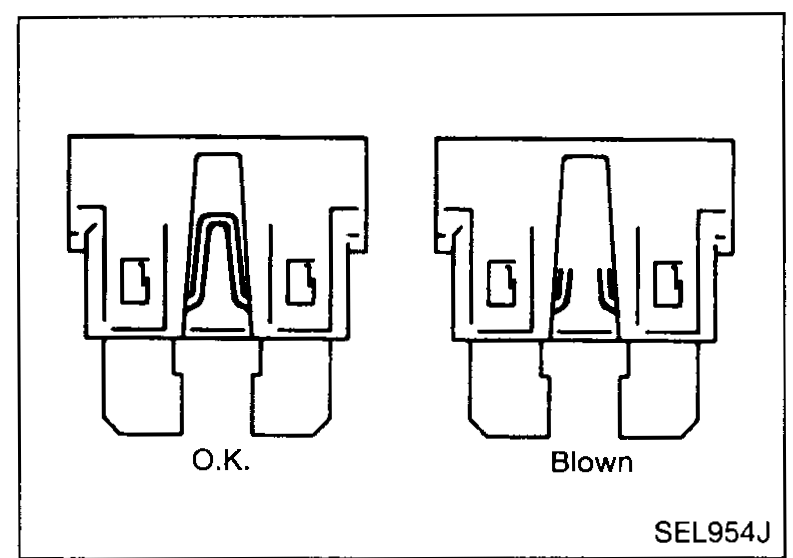

SEL954J - bUse fuse of specified rating. Never use fuse of more than specified rating.
- cDo not install fuse in oblique direction; always insert it into fuse holder properly.
- dRemove fuse for clock if vehicle is not used for a long period of time.
- eUse fuse puller provided in fuse box to remove fuses.
FUSE LOCATION
NOTE
Power Supply Fuses are located in fuselink box at front of engine compartment.
Component protection fuses are located in main fuse box situated in lower driver-side dash panel.
FUSE RATINGS
| Specification | Value |
|---|---|
| RED | 10A |
| BLUE | 15A |
| YELLOW | 20A |
RED
10A
BLUE
15A
YELLOW
20A
