WIPERS AND WASHERS — Rear Washer Nozzle — Replacement / Front Washer Spray Pattern / Rear Washer Spray Pattern
EL-110prose procedureFront pattern is asymmetric in RHD vs LHD (mirror) — driver's-side measurements differ. Rear pattern is small (50 mm dia jet) and applies to stationary checks — moving wind disperses it.
Rear Washer Nozzle — Replacement
- 1Open Back Door.
- 2Remove Washer Tubing.

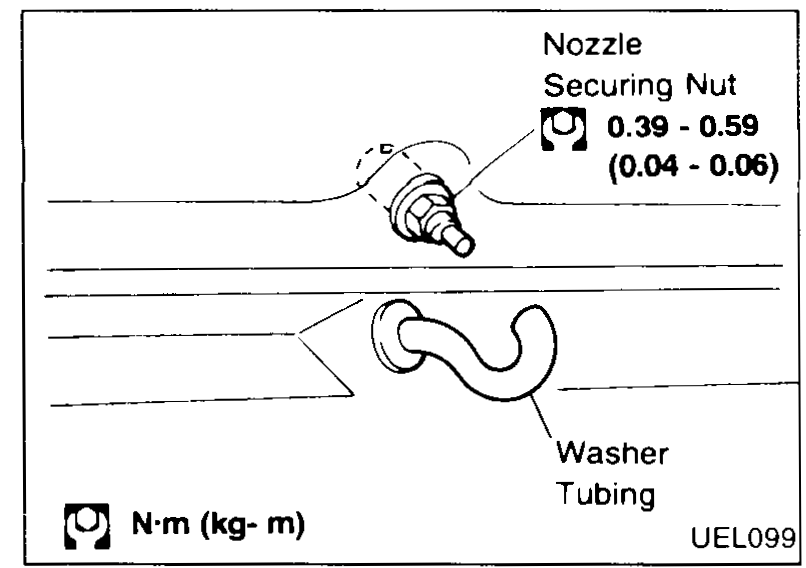

UEL099 - 3Undo and remove nozzle securing nut.
- Nut torque: 0.39 - 0.59 N·m (0.04 - 0.06 kg-m)
- 4Remove nozzle.
NOTE
• Refit using reverse procedure to removal.
• Adjust aiming to attain correct spray pattern.
Front Washer Spray Pattern
NOTE
• Ensure that washers operate correctly and that spray jets hit the screen within the specified areas so that washer fluid is contained within the wiper swept area.
∅A
Dimension (mm)80
∅B
Dimension (mm)80
∅C
Dimension (mm)80
∅D
Dimension (mm)80
1
Dimension (mm)163
2
Dimension (mm)419
3
Dimension (mm)292
4
Dimension (mm)467
5
Dimension (mm)121
6
Dimension (mm)118
7
Dimension (mm)374
8
Dimension (mm)238
Rear Washer Spray Pattern
NOTE
• Ensure that washer operates correctly and that spray jets hit the screen in the specified areas when the vehicle is stationary.
∅A
Dimension (mm)50
∅B
Dimension (mm)50
1
Dimension (mm)50
2
Dimension (mm)30
3
Dimension (mm)35
| Specification | Value |
|---|---|
| Rear washer nozzle securing nut | 0.39 - 0.59N·m (0.04 - 0.06 kg-m) |
Rear washer nozzle securing nut
0.39 - 0.59N·m (0.04 - 0.06 kg-m)
