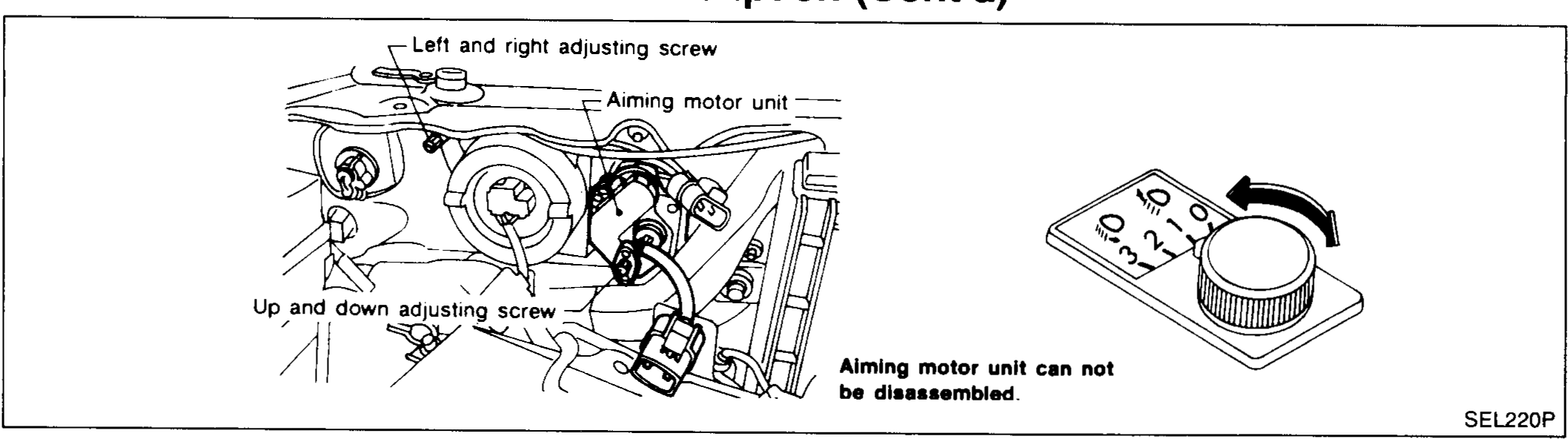

Headlamp - Headlamp Aiming Control - Description (Cont'd) / Circuit Operation / Adjust

[Example]

• When the aiming switch is set to "0", the motor will not start because the power terminals are positioned at the non-conductive section of the sensor's rotary unit.

• When the aiming switch is moved from "0" to "1", power is applied to the motor through the sensor's conductive section. The headlamps will then move in the "DOWN" direction. • The motor continues to rotate while the rotary unit of the sensor moves from point A to point B. • The power terminals will then be positioned at the nonconductive section, disconnecting the power to the motor. Then motor stops.

• When the aiming switch is moved from "1" to "0", power is applied to the motor through the conductive section of the sensor. The motor will rotate to move the headlamps in the "UP" direction. • When the rotary unit of the sensor moves from point B to point A, the motor will stop.
