Warning Lamps — Replacement / Flexible Printed Circuit Board — Replacement
EL-88prose procedureWarning-lamp wattage table includes ABS and N-CVT lamps applicable only to those equipped models.
Instrument warning bulbs can be replaced without disassembling the instrument pack.
Twist bulbholder anti-clockwise to remove.
Ensure correct wattage bulb is used when refitting.
Instrument warning lamp bulb wattages
3W
ApplicationFuel low, Battery Charge Warning Lamps
2W
ApplicationInstrument illumination
1-2W
ApplicationN-CVT, Main Beam, RH Turn, LH Turn, Brake, Oil and ABS Warning Lamps
Flexible Printed Circuit Board — Replacement
- 1Remove all warning lamps from rear of instrument pack.

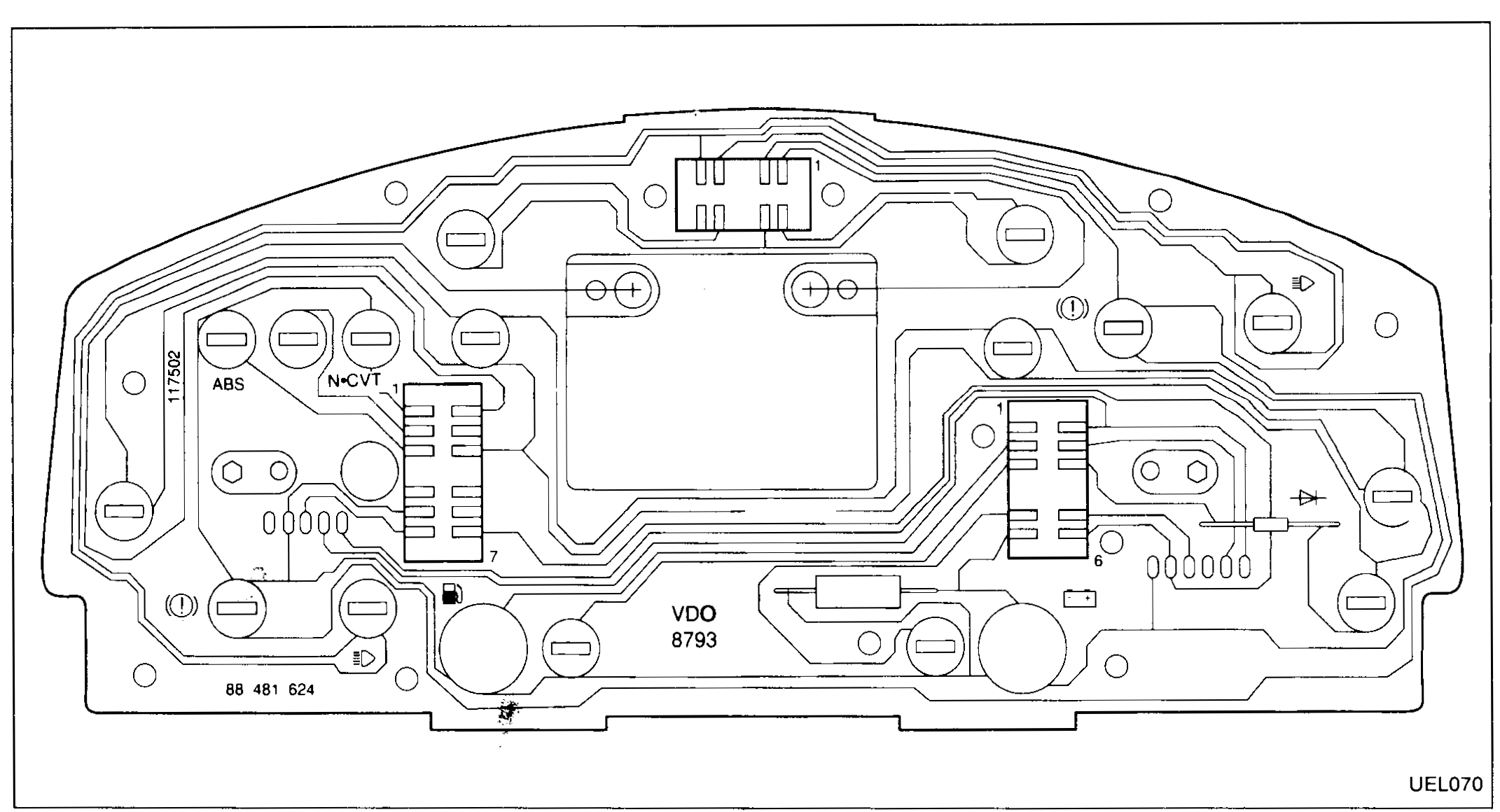

UEL070 - 2Remove 2 screws securing flexible printed circuit board (f.p.c.b.) to raised area of lower housing.
- 3Carefully peel f.p.c.b. from rear of lower housing retaining lugs.
Replace components in reverse order, taking care not to damage f.p.c.b. and inserting warning lamps of the correct wattage into the appropriate aperture.
IMPORTANT
Instrument Pack repair should be performed in a clean dust-free environment.
