Thermal Transmitter Check / Oil Pressure Switch / Speedometer Cable Removal and Installation / Speed Sensor Signal Check
EL-91spec tableCheck the resistance between the terminals of the thermal transmitter and body ground with the transmitter in situation.
For a more accurate test, remove thermal transmitter and immerse in a vessel of water.
Heat water, and test transmitter resistance at suitable temperatures to determine if transmitter resistance is changing correctly in accordance with temperature variation.
Thermal transmitter resistance vs temperature
52.5
Resistance (Ω)≈ 2100
65
Resistance (Ω)1175 - 1420
91
Resistance (Ω)470 - 570
119
Resistance (Ω)210 - 235
Apply sealant to screw threads when refitting.
| Specification | Value |
|---|---|
| Maximum installationThermal transmitter | ≈142N·m |
Maximum installationThermal transmitter
142N·m
Oil Pressure Switch
Check the continuity between the terminals of oil pressure switch and body ground.
Oil pressure switch continuity
Engine start
Oil pressure kPa (bar, kg/cm², psi)More than 4.9 - 24.5 (0.049 - 0.245, 0.7 - 3.6)
Resistance value∞
Engine stop
Oil pressure kPa (bar, kg/cm², psi)Less than 4.9 - 24.5 (0.049 - 0.245, 0.05 - 0.25, 0.7 - 3.6)
Resistance value≈ 0
Apply sealant to screw threads when refitting.
| Specification | Value |
|---|---|
| Maximum installationOil pressure switch | ≈120 - 168N·m |
Maximum installationOil pressure switch
120 - 168N·m
Speedometer Cable Removal and Installation
After disconnecting speedometer cable end from transaxle, push speedometer cable so that combination meter is pushed into passenger compartment. Disconnect speedometer cable end from combination meter as shown in the figure at left.
Speed Sensor Signal Check
- 0A speed sensor is built into the speedometer.

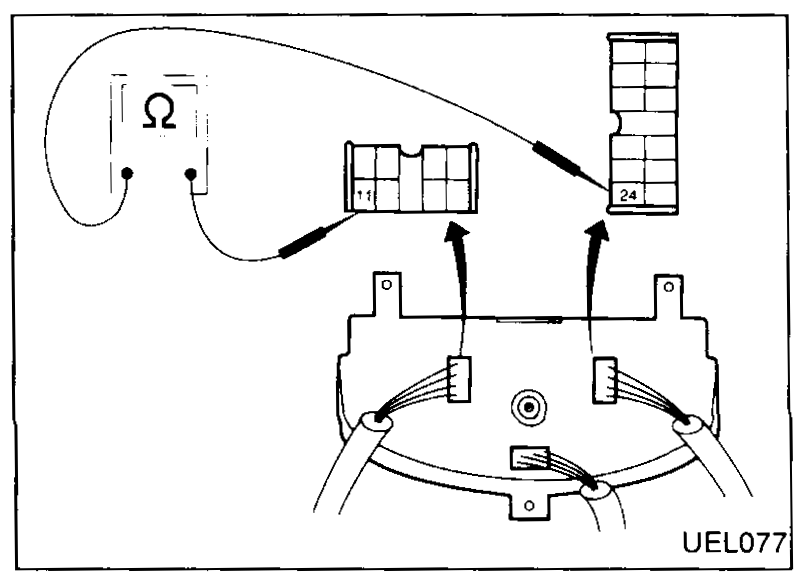

UEL077 - 1Turn speedometer slowly using a small screwdriver.
- 2Check continuity of speed sensor circuit. Continuity exists two times for each turn ... O.K.
