Wipers and Washers — Headlamp Wipers
EL-111prose procedureHeadlamp Wipers
Two motors are fitted, one under each headlamp. A wash nozzle is included on each arm supplied via tubing from a 2.0 l reservoir located in the engine bay.
Wiper Arm — Removal
- 1Ensure wiper arm is in the park position by switching headlamp wiper switch on and off.
- 2Remove battery negative cable from the battery.
- 3Lift wiper arm nut cover and remove nut.
- 4Remove wiper arm.
Wiper Arm — Installation
Installation is the reverse procedure to removal.
NOTE
Ensure the motor is in park position before refitting wiper arm, by switching headlamp wiper switch on and off.
When fitting the wiper arm/blade, tighten up the securing nut with the blade under the lower stop and then replace arm in the correct park position.

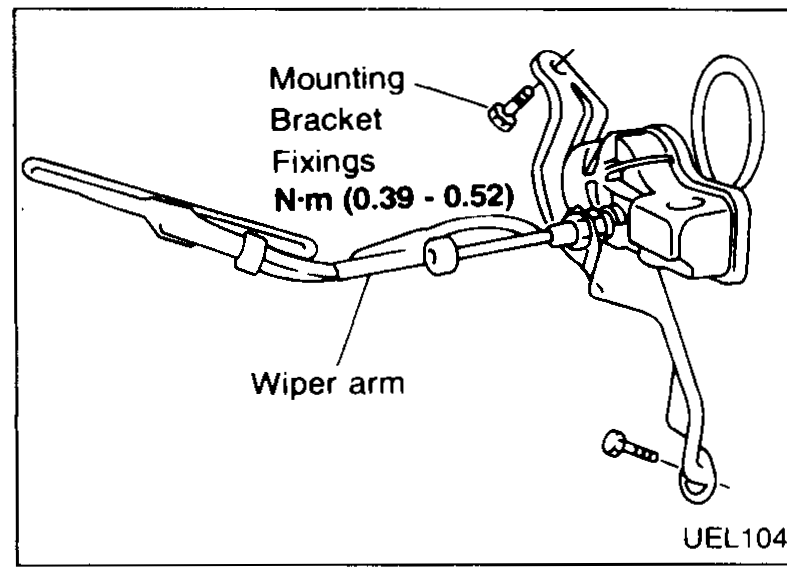

Wiper Motor — Removal
- 1Remove wiper arm as described above.
- 2Remove the Headlamp as described in "Headlamp section".
- 3Remove bolts from mounting bracket.
UEL104 - 4Disconnect harness connector.
- 5Remove wiper motor.
Wiper Motor — Installation
Wiper motor installation is the reverse procedure to removal.
NOTE
Fit wiper arm using procedure described above.
CAUTION
Take care not to damage finish of vehicle bumper, grille or fender during removal and installation.
NOTE
Check that wiper action operates normally without judder.
