Instrument Pack — Disassembly

EL-87prose procedure
Continued from EL-86
Component parts of the instrument pack which can be replaced are as follows:

Replaceable component parts

  1. 1
    Lower Housing.

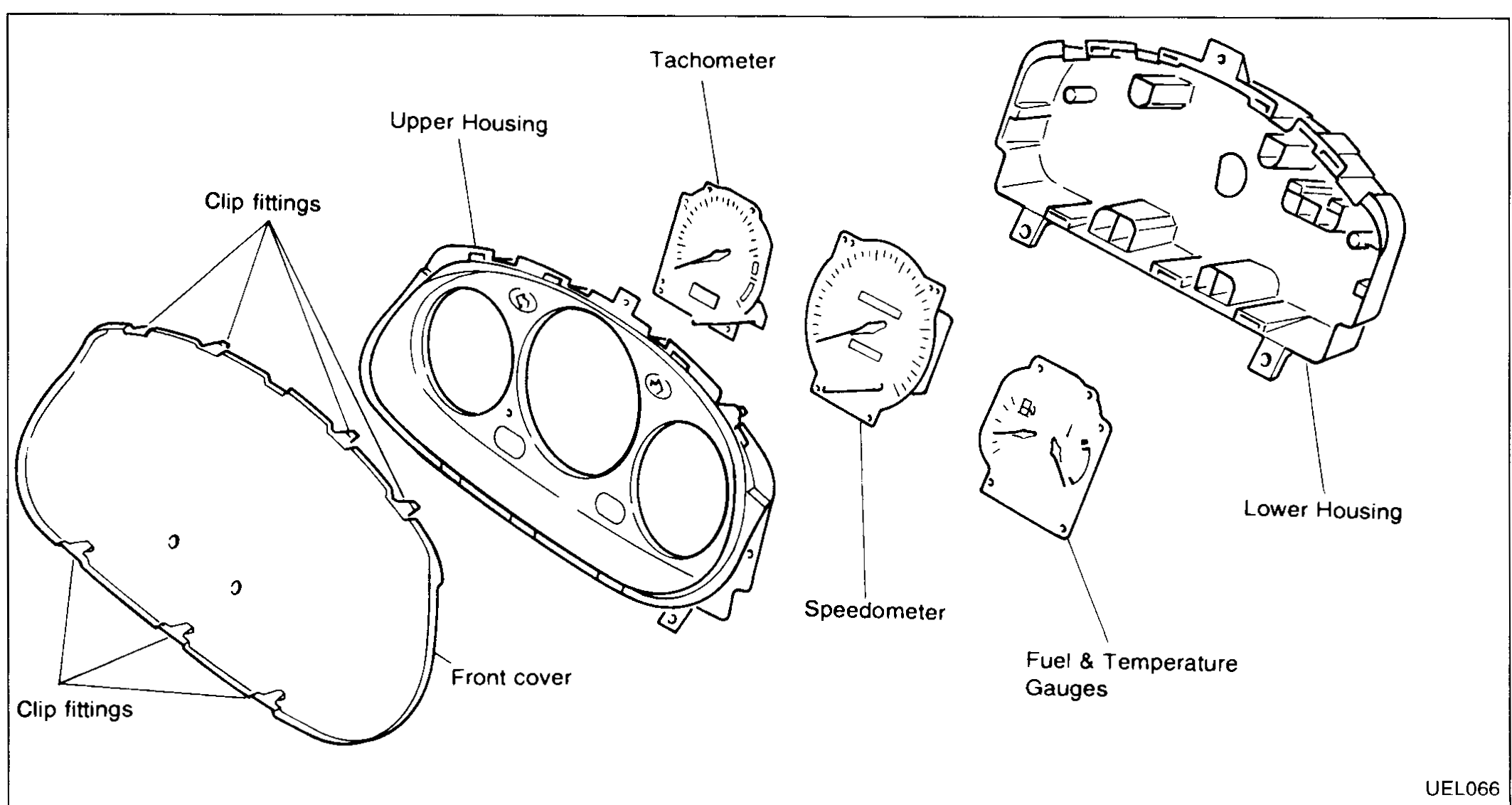

    Exploded view of the instrument pack showing the Front cover, Upper Housing, Tachometer, Speedometer, Fuel & Temperature Gauges, Lower Housing and Clip fittings. Leader lines identify each component and the clip fittings that retain the front cover.
    UEL066
  2. 2
    Upper Housing.
  3. 3
    Front Cover.
  4. 4
    Fuel Gauge.
  5. 5
    Coolant Temperature Gauge.
  6. 6
    Tachometer.
  7. 7
    Speedometer.
  8. 8
    Warning symbol lenses.

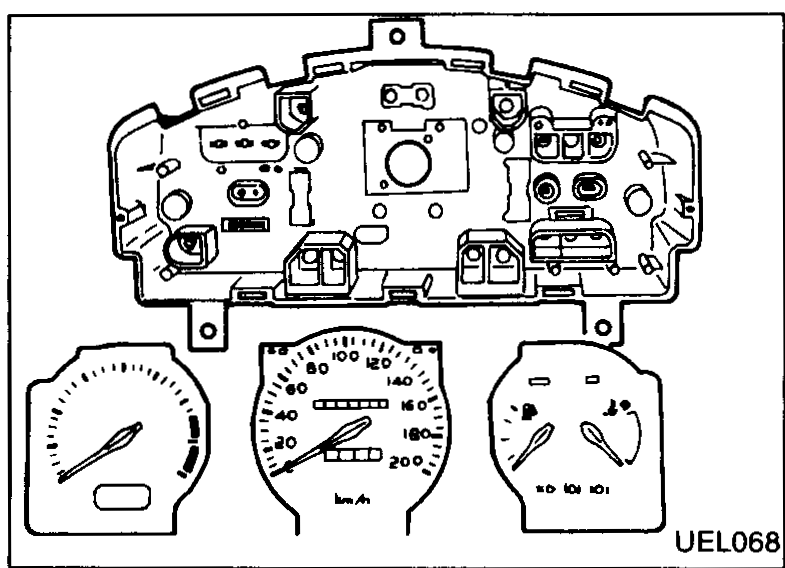

    Front view of the disassembled gauge faces (speedometer, tachometer, fuel and temperature gauges) with warning symbol lenses.
    UEL068
  9. 9
    Bulbs.
  10. 10
    Flexible Printed Circuit Board.
    Gauges, rigid pcbs, digital clock and pcb components are not serviceable and must be replaced as a complete unit.

To disassemble:

To disassemble

  1. 1
    Unclip and remove front cover and upper housing.
  2. 2
    Remove nuts from rear of meter to remove fuel, temperature and tachometer gauges.

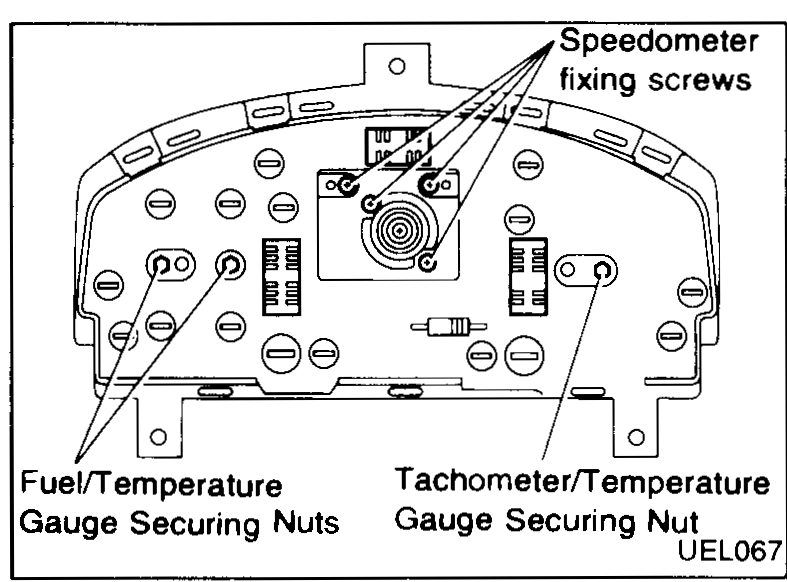

    Rear view of the instrument pack showing the Speedometer fixing screws, Fuel/Temperature Gauge Securing Nuts and Tachometer/Temperature Gauge Securing Nut locations.
    UEL067
  3. 3
    Remove 4 screws from raised area of rear of instrument pack to remove speedometer.
    Take care not to scratch faces of gauges or bend pointers. Do not place gauges face down.
  4. 4
    Warning lenses can be removed by unclipping from back of upper housing; take care not to damage lens surface when refitting.

Installation

Component parts can be fitted using the inverse procedure to removal.
