WIPERS AND WASHERS — Front Wipers — Removal / Installation
EL-104prose procedureTwo different nut torques on this page: 3.8-5.1 N·m (arm-to-spline) and 17-23 N·m (blade-to-arm) — easy to mix up. The park-stop clearance A is critical for blade life; running outside it scuffs the blade against the cowl trim.
FRONT WIPERS — Removal
NOTE

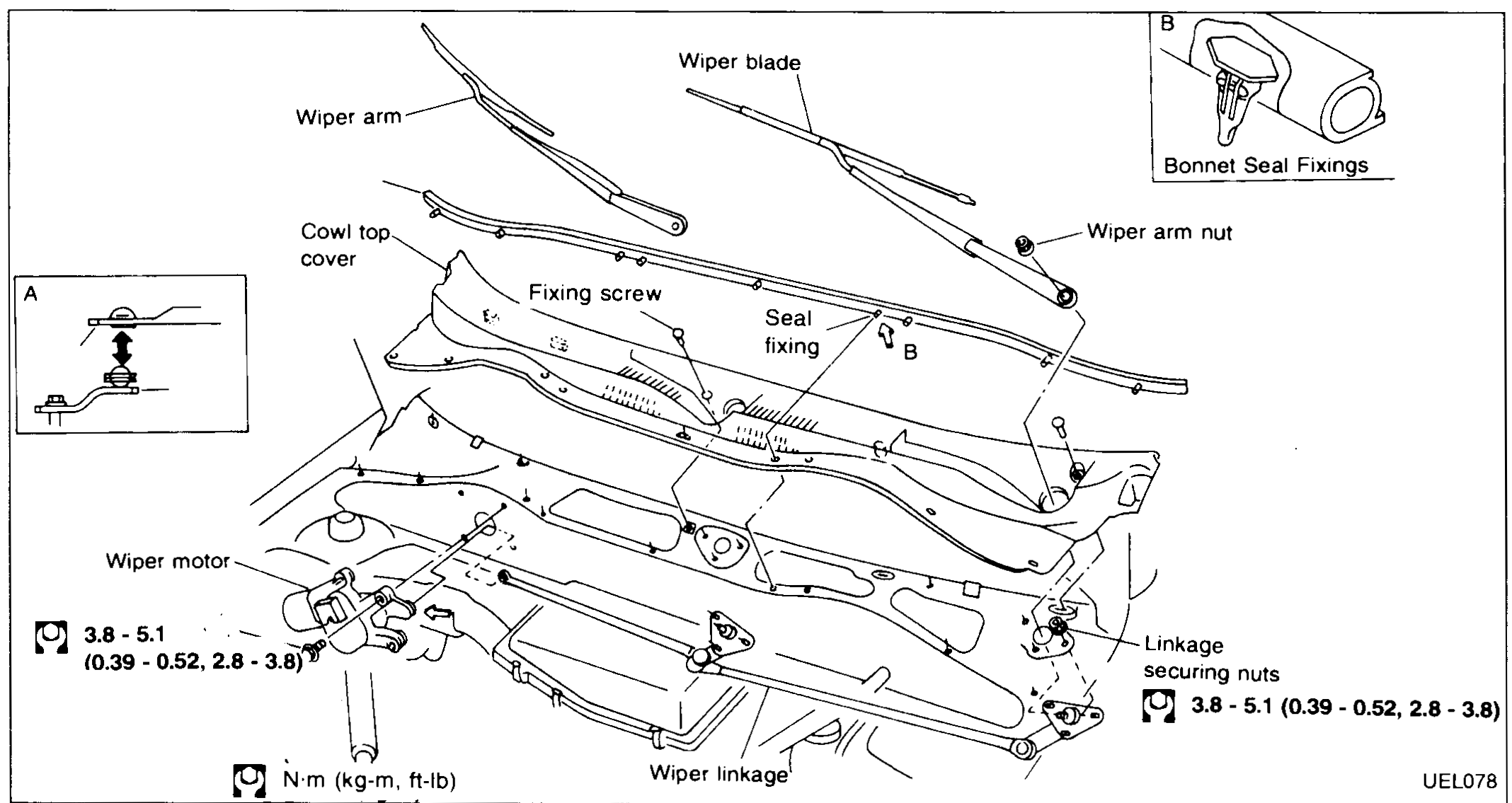

The above illustration shows an exploded view of the front windscreen wiper assembly for LHD vehicles; RHD vehicles have components fitted with the opposite orientation.
• Before removing wiper arms, ensure the wiper blades are in the park position.
- 1Lift plastic nut covers on wiper arms.
UEL078 - 2Remove wiper arm securing nuts and prise off wiper arms.
Installation

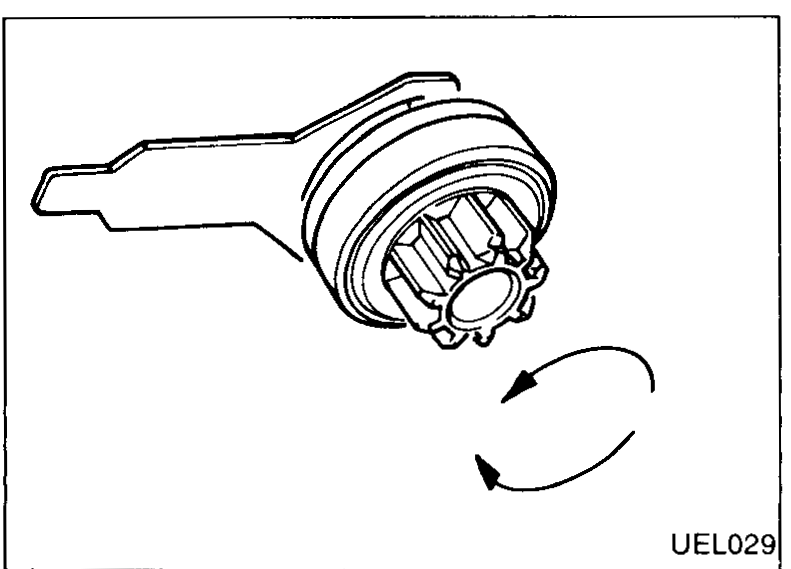

- 1Before replacing wiper arms, clean up the pivot splines with a stiff brush to reduce the possibility of wiper arm looseness.
UEL029 - 2Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (Auto Stop).

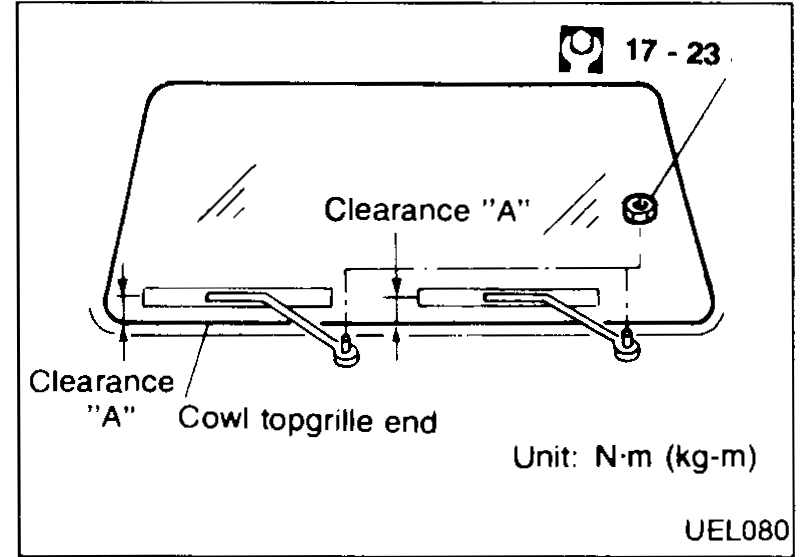

- 3Lift the blade up and then set it down onto surface of windscreen to set the blade center to clearance "A" immediately before tightening nut to torque figure indicated in illustration.
UEL080 - 4Eject washer fluid. Turn on wiper switch to operate wiper motor and then turn it "OFF".
- 5Ensure that wiper blades stop within clearance "A".
- 6Ensure that the wiper operates smoothly at all speeds and without judder or "screeching" when the screen is wet, and that all fluid is removed from the screen in one sweep of the wiper.
| Specification | Value |
|---|---|
| Wiper arm nut | 3.8 - 5.1N·m (0.39 - 0.52 kg-m, 2.8 - 3.8 ft-lb) |
| Linkage securing nuts | 3.8 - 5.1N·m (0.39 - 0.52 kg-m, 2.8 - 3.8 ft-lb) |
| Blade-end clearance A (park stop) | 17.5 - 32.5mm (0.7 - 1.3 in) |
| Wiper blade nut (final) | 17 - 23N·m |
Wiper arm nut
3.8 - 5.1N·m (0.39 - 0.52 kg-m, 2.8 - 3.8 ft-lb)
Linkage securing nuts
3.8 - 5.1N·m (0.39 - 0.52 kg-m, 2.8 - 3.8 ft-lb)
Blade-end clearance A (park stop)
17.5 - 32.5mm (0.7 - 1.3 in)
Wiper blade nut (final)
17 - 23N·m
