STARTING SYSTEM — Starter — Armature Check (Cont'd) / Bearing Check / Pinion Shaft Thrust Gap Check
EL-31prose procedureBush install requires 30-min engine-oil soak before pressing — porous bronze bush needs lubricant absorbed before crush-fit. Pinion-thrust 'ℓ' actual range on SDS page.
Armature Check (Cont'd)

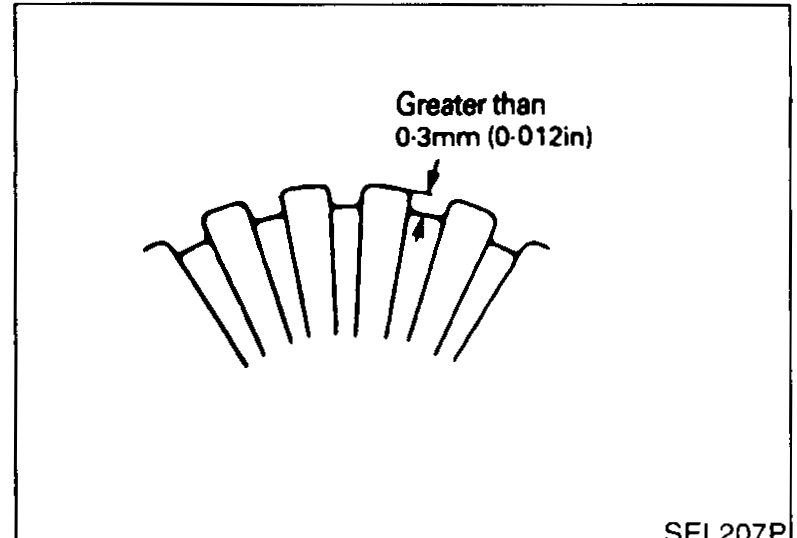

- 5Check depth of insulating mica from commutator surface. Less than 0.3 mm (0.012 in) ... Replace.
SEL207P
| Specification | Value |
|---|---|
| Insulating mica depth (min) | 0.3mm (0.012 in) |
Insulating mica depth (min)
0.3mm (0.012 in)
Bearing Check
NOTE
Renew bearing bushes if there is:
• evidence of armature fouling magnets.
• perceptible side play between bush and shaft.

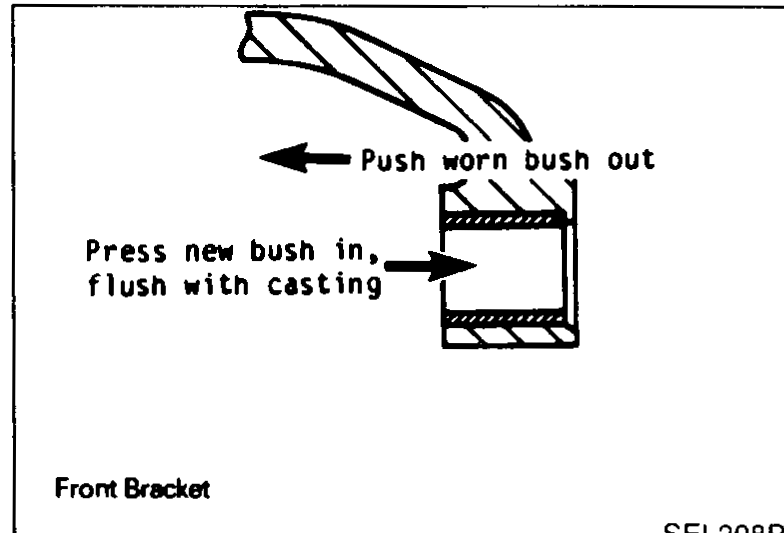

- 1Press worn out bushes from the Front and Intermediate brackets using lever/hand operated press and suitable mandrels.
- Soak new bushes in engine oil for 30 minutes before press fitting into position using a suitable press and mandrel.
SEL208P
Pinion Shaft Thrust Gap Check
NOTE
Check movement "ℓ" of pinion when it is pushed forward until it touches front bracket stopper.
Movement "ℓ": Refer to S.D.S.
If movement "ℓ" is not within specified range ... Adjust gap.
See also
S.D.S.
