INTERIOR LAMPS — Defogger/Hazard/Rear Fog Switch — Bulb Replacement / Headlamp Aim Switch etc. — Replacement / N·CVT Selector — Bulb Replacement

EL-77prose procedure

Aim/driving/fog/illumination switches don't have separately serviceable bulbs — full switch swap on a blown indicator. CVT selector illumination is a tiny socket bulb with a coloured filter cap.

Defogger/Hazard/Rear Fog Switch — Bulb Replacement

  1. 1
    Remove battery negative cable from battery.
  2. 2
    Remove screws securing front fascia to centre console. (Refer to BF Section.)
  3. 3
    Displace front fascia forwards for access to switch bodies.

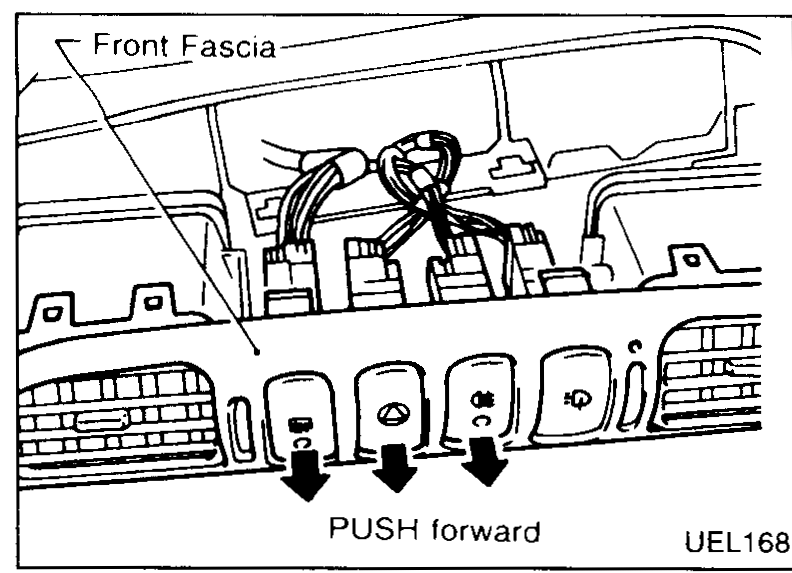

    Front fascia — three centre-console switches (defogger / hazard / rear fog) with PUSH forward arrow callouts to release.
    UEL168
  4. 4
    Remove connector from back of switch.
  5. 5
    Pinch fixing wings of switch and push through aperture in front fascia.
  6. 6
    Unscrew defective bulb and replace bulb and lamp holder.

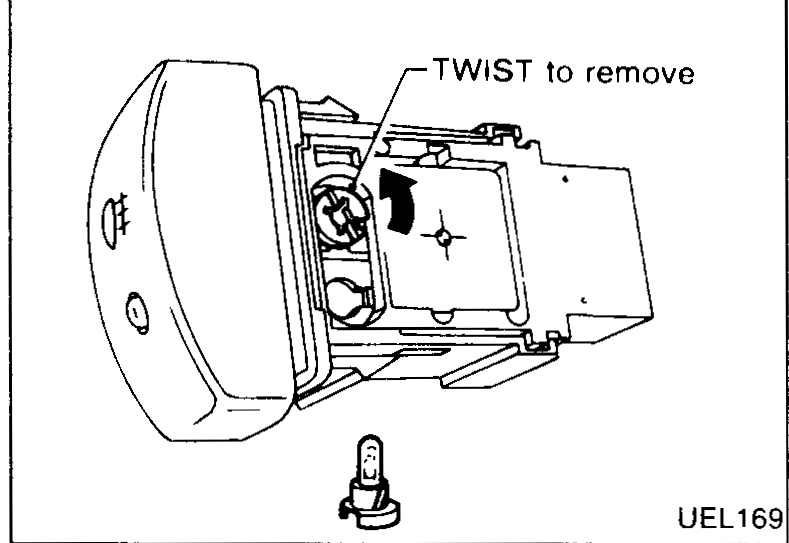

    Back of switch — TWIST to remove bulb holder.
    UEL169

Headlamp Aim Switch / Driving Lamp / Front Fog Lamp / Illumination Control Switch — Replacement

  1. 1
    Remove battery negative cable from battery.
  2. 2
    Remove screws from instrument pack cowl. (Refer to "Instrument Pack — Removal")
  3. 3
    Displace Instrument pack cowl.
  4. 4
    Remove connector from back of switch.
  5. 5
    Pinch fixing wings of switch and push through aperture in instrument cowl.
  6. 6
    Replace switch.

N·CVT Selector — Bulb Replacement

  1. 1
    Remove battery negative cable from battery.
  2. 2
    Prise off top cover of selector lever trim.

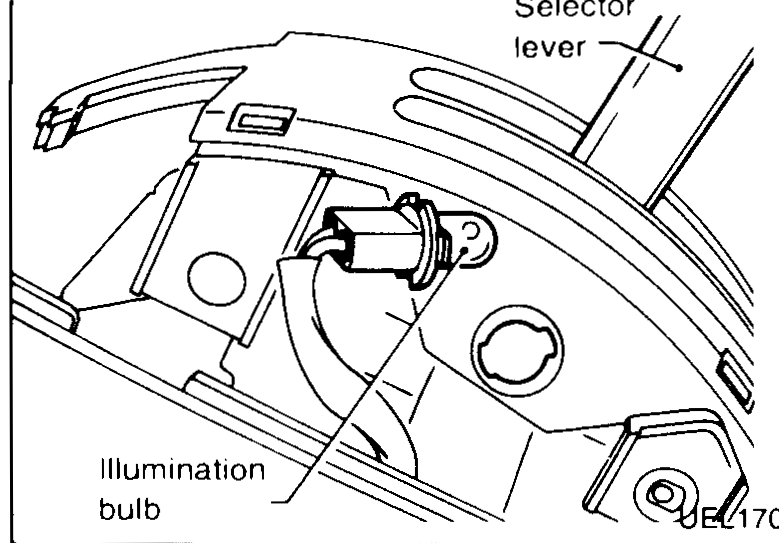

    N·CVT selector lever trim — illumination bulb beneath the selector window.
    UEL170
  3. 3
    Twist and pull out bulb holder.
  4. 4
    Pull bulb out of holder and replace bulb and filter cap.
