Location of Electrical Units - Passenger Compartment - L.H.D. Model
EL-1042component photoPassenger Compartment - L.H.D. Model
Component LocationFig. fig1

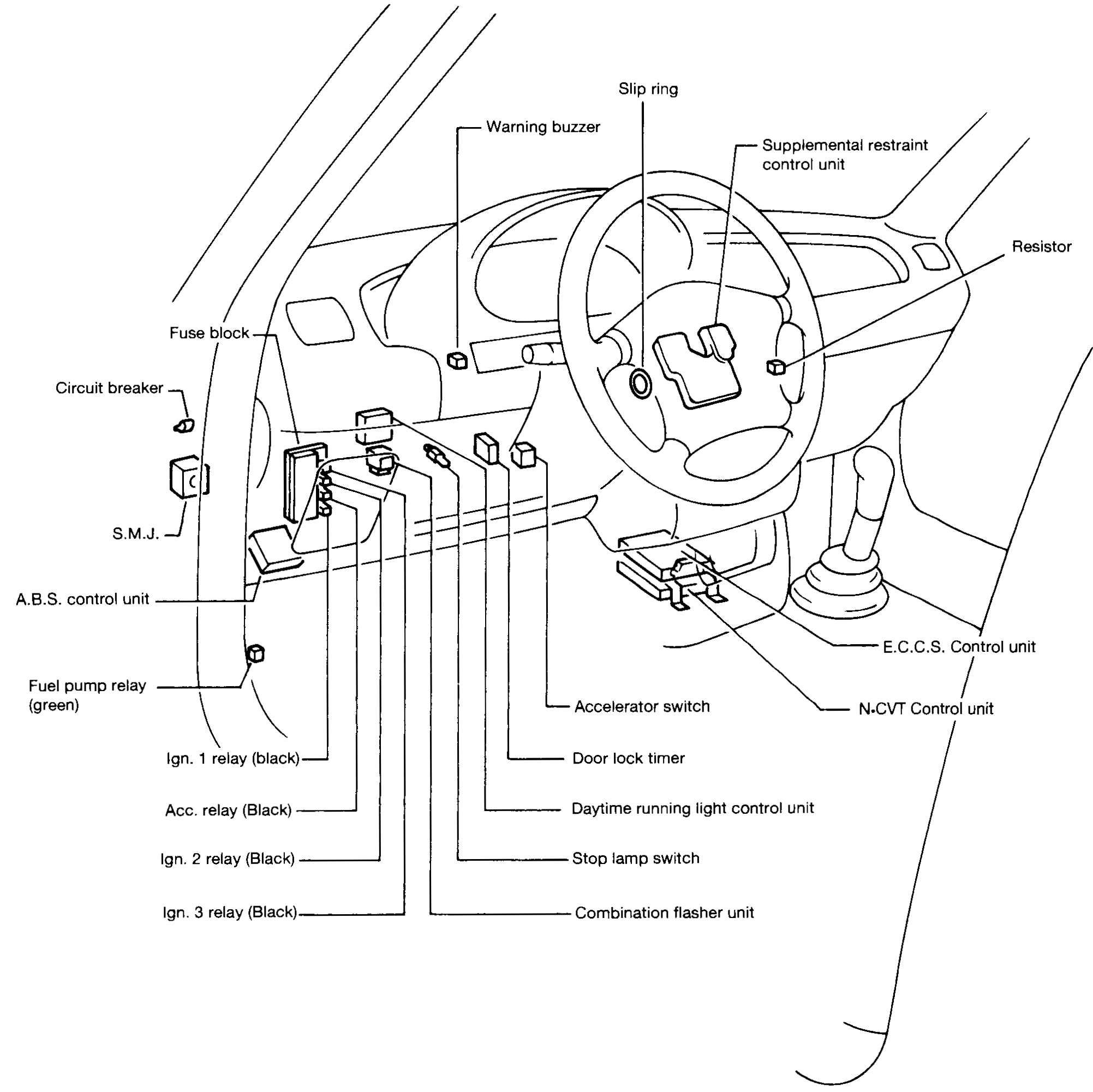

L.H.D. passenger compartment - location of electrical units
NEL066
1Slip ring(centre of steering wheel)
2Warning buzzer(upper steering column area)
3Supplemental restraint control unit(right of steering wheel, on dashboard)
4Resistor(far right of dashboard)
5Fuse block(left side of dashboard)
6Circuit breaker(far left, near fuse block)
7S.M.J.(below fuse block)
8A.B.S. control unit(lower left, behind dash)
9Fuel pump relay (green)(lower left, dash)
10Ign. 1 relay (black)(lower left relay cluster)
11Acc. relay (Black)(lower left relay cluster)
12Ign. 2 relay (Black)(lower left relay cluster)
13Ign. 3 relay (Black)(lower left relay cluster)
14Accelerator switch(centre lower dash)
15Door lock timer(centre lower dash)
16Daytime running light control unit(centre lower dash)
17Stop lamp switch(centre lower dash)
18Combination flasher unit(centre lower dash)
19E.C.C.S. Control unit(right of centre console, behind shifter)
20N-CVT Control unit(right of centre console, near shifter)
