Wipers and Washers — Washer Nozzle and Check Valve
EL-109prose procedureRear screen washer tubing routes differently for LHD and RHD vehicles.
Washer Nozzle — Adjustment
Adjust front and rear washer nozzles with a suitable tool. Each nozzle has two jets which should be set to provide water at the specified aiming points.
| Specification | Value |
|---|---|
| Front Washer nozzles output volume | 250cm³/sec |
| Rear Washer nozzle output volume | 150cm³/sec |
Front Washer nozzles output volume
250cm³/sec
Rear Washer nozzle output volume
150cm³/sec
Washer Nozzle — Replacement
- 1To remove washer nozzle pull tubing off of check valve, pinch fixing lugs and push nozzle through bonnet aperture.
UEL097 - 2Push fit new nozzle, taking care not to damage surrounding point.
- 3Adjust nozzle to give correct spray pattern.

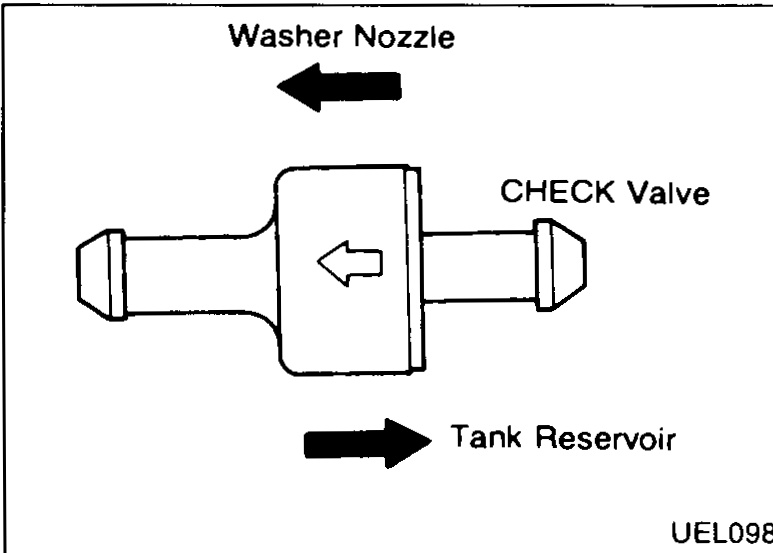

Check Valve
CAUTION
A check valve is provided in the washer fluid line. Be careful not to connect check valve in the wrong direction.
