Exterior Lamps - Rear Combination Lamps - Bulb Replacement / Removal / Installation
EL-59prose procedureRear Combination Lamp - Bulb Replacement
NOTE
LHD and RHD versions have the following variations:
Rear combination lamp bulb layout - LHD vs RHD
Stop and Tail
Rating12V - 21/5W
LHDTop Both Sides
RHDTop Both Sides
Turn Signal Lamp
Rating12V - 21W
LHDNext to top both sides
RHDNext to top both sides
Fog Lamp (Rear)
Rating12V - 21W
LHDBottom LH side
RHDBottom RH side
Reverse Lamp
Rating12V - 21W
LHDBottom RH side
RHDBottom LH side

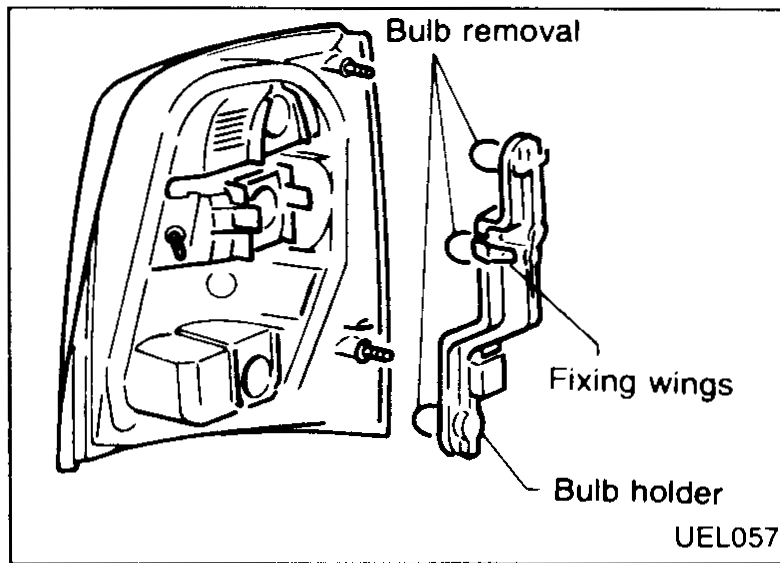

Rear combination lamp bulb replacement
- 1
UEL057 - 2
- 3
Rear Combination Lamp - Removal
Rear combination lamp removal
- 1
- 2
- 3

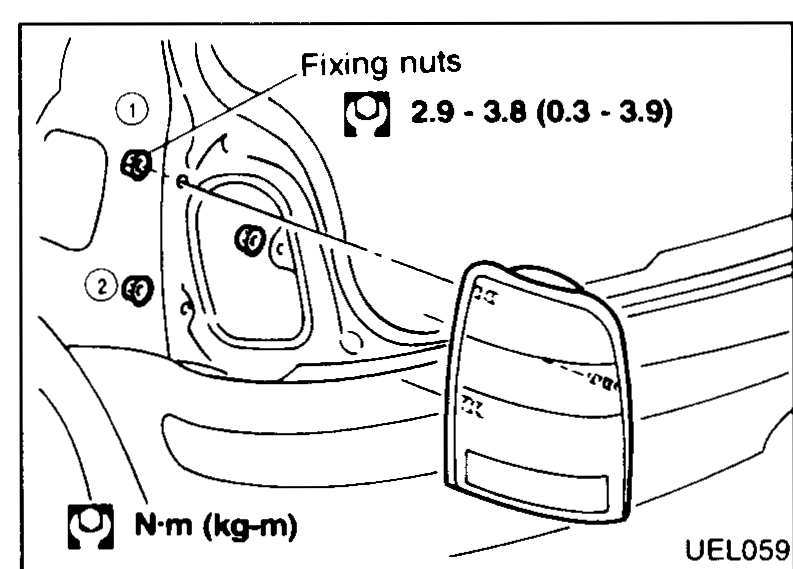

UEL059 - 4
UEL058
Rear Combination Lamp - Installation
Rear combination lamp installation
- 1
- 2
- 3
- 4
- 5
NOTE
• Hot Butyl should be applied without excess or gaps and must not protrude outside periphery of lens edges.
• Bead joint should be at the bottom of lamp in mounting position.
| Specification | Value |
|---|---|
| Fixing nuts | 2.9 - 3.8N·m (0.3 - 0.39 kg-m) |
Fixing nuts
2.9 - 3.8N·m (0.3 - 0.39 kg-m)
WARNING
• Take care not to damage surface of lens, rim and coating of vehicle body panel when mounting.
• Do not use organic solvents to clean exterior of the lamp.
