Power Supply Protection
EL-1002prose procedureFuses
- 1If fuse is blown, be sure to eliminate cause of problem before installing new fuse.

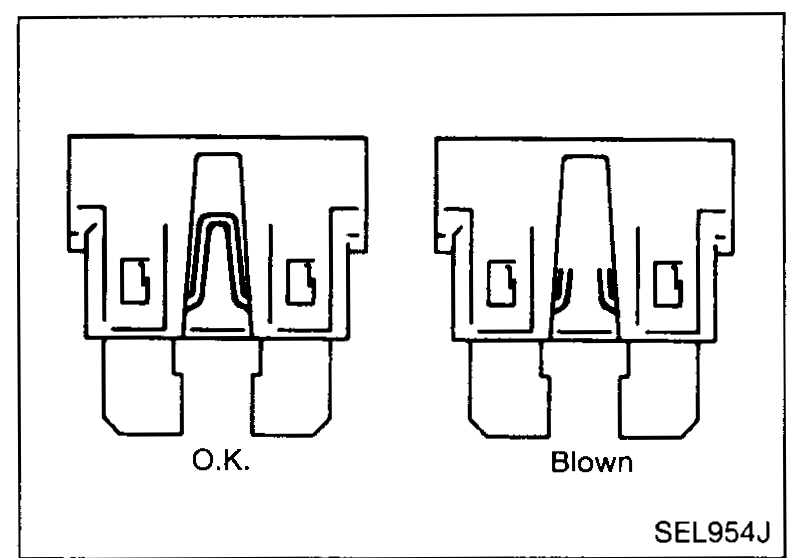

SEL954J - 2Use fuse of specified rating. Never use fuse of more than specified rating.
- 3Do not install fuse in oblique direction; always insert it into fuse holder properly.
- 4Remove fuse for clock if vehicle is not used for a long period of time.
- 5Use fuse puller provided in fuse box to remove fuses.
Fuse Location
Power Supply Fuses are located in fuselink box at front of engine compartment.
Component protection fuses are located in main fuse box situated in lower driver-side dash panel.
Fuse Ratings
| Specification | Value |
|---|---|
| RED | 10A |
| BLUE | 15A |
| YELLOW | 20A |
RED
10A
BLUE
15A
YELLOW
20A
