Nissan Micra K11 silhouetteK11

Exterior Lamps - High Mounted Stop Lamp / License Plate Lamp

EL-60prose procedure

HIGH MOUNTED STOP LAMP - Bulb replacement

High mounted stop lamp bulb replacement

  1. 1
  2. 2
  3. 3

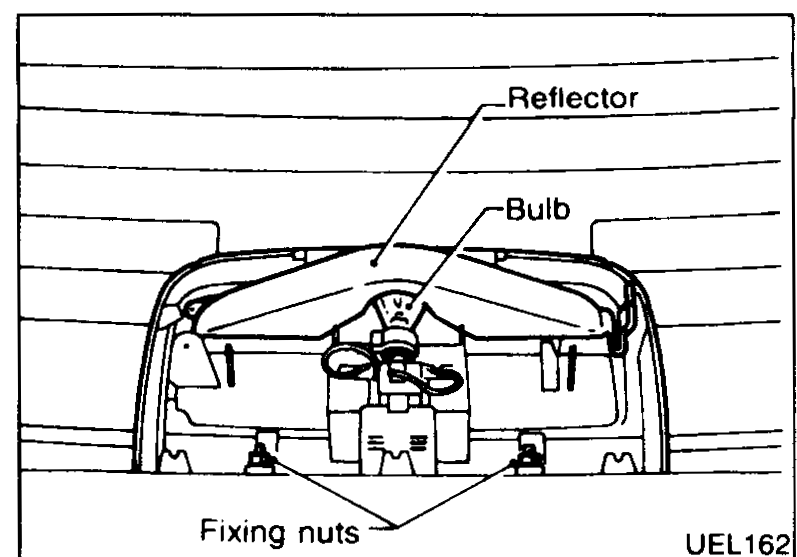

    High mounted stop lamp viewed from the back-door inside, showing reflector, bulb and fixing nuts.
    UEL162
  4. 4
  5. 5
Bulb
12V 21W

HIGH MOUNTED STOP LAMP - Removal and Installation

High mounted stop lamp removal and installation

  1. 1
  2. 2
  3. 3

LICENSE PLATE LAMP - Bulb removal

License plate lamp bulb removal

  1. 1
  2. 2

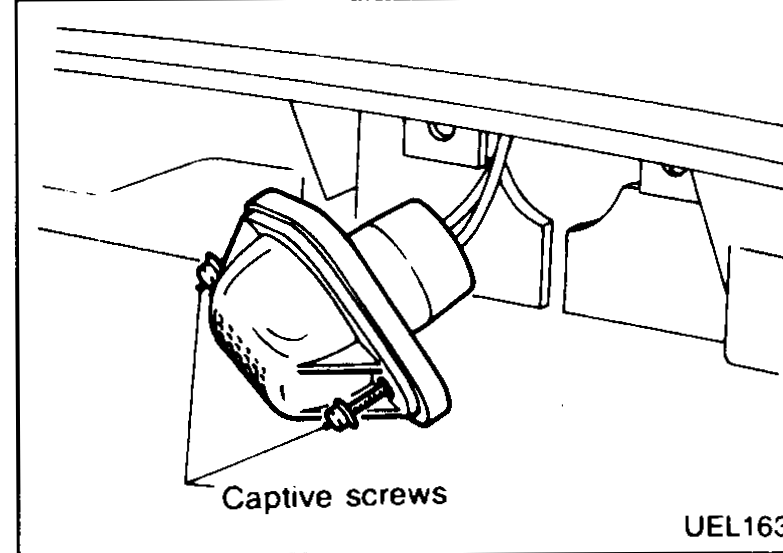

    License plate lamp shown with lens cover and captive screws beneath the rear bumper.
    UEL163
  3. 3
Bulb
12V 5W
