Interior Lamps — Switch Bulb Replacement / N·CVT Selector Bulb Replacement
EL-77prose procedureDefogger/Hazard/Rear Fog Switch — Bulb Replacement
- 1Remove battery negative cable from battery.
- 2Remove screws securing front fascia to centre console. (Refer to BF Section.)

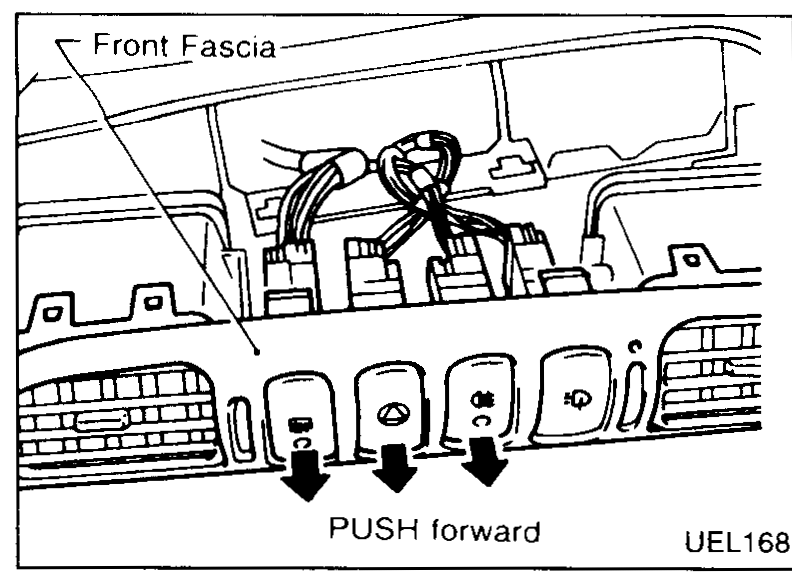

- 3Displace front fascia forwards for access to switch bodies.
UEL168 - 4Remove connector from back of switch.
- 5Pinch fixing wings of switch and push through aperture in front fascia.

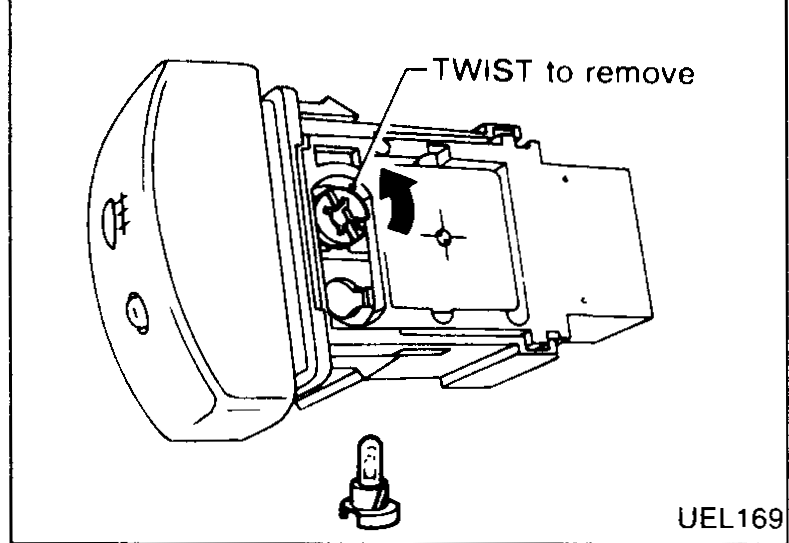

- 6Unscrew defective bulb and replace bulb and lamp holder.
UEL169
To replace switch, use the same procedure as above.
Headlamp Aim Switch/Driving Lamp/Front Fog Lamp/Illumination Control Switch — Replacement
The Headlamp aim switch bulbs are not replaceable, replace the switch complete.
Headlamp Aim Switch/Driving Lamp/Front Fog Lamp/Illumination Control Switch — Replacement
- 1Remove battery negative cable from battery.
- 2Remove screws from instrument pack cowl. (Refer to "Instrument Pack — Removal")
- 3Displace Instrument pack cowl.
- 4Remove connector from back of switch.
- 5Pinch fixing wings of switch and push through aperture in instrument cowl.
- 6Replace switch.
N·CVT Selector — Bulb Replacement
- 1Remove battery negative cable from battery.

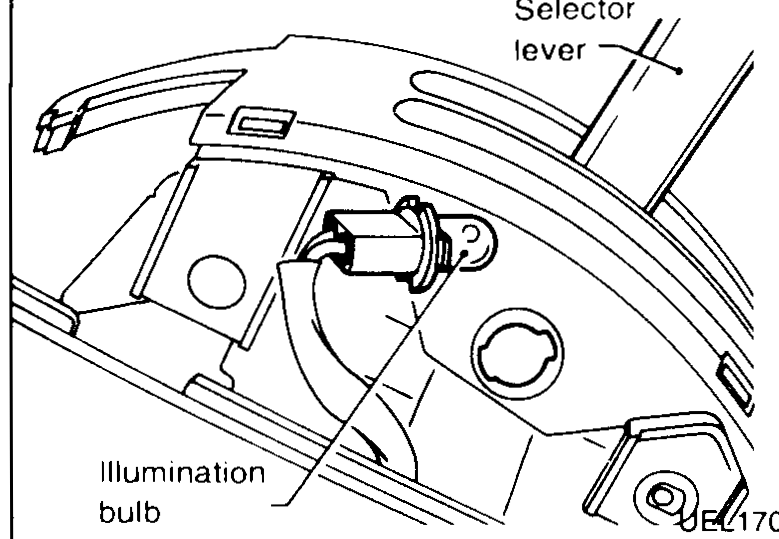

UEL170 - 2Prise off top cover of selector lever trim.
- 3Twist and pull out bulb holder.
- 4Pull bulb out of holder and replace bulb and filter cap.
