METER AND GAUGES — Instrument Pack — Removal / Installation

EL-86prose procedure

Note step 8 mentions a SPEEDOMETER CABLE — earlier in this section (EL-84 / EL-85) the speed sensor is electronic, no cable. K11 went through a mid-life change from mechanical-cable to VSS-electronic. This procedure covers both — on electronic-sensor cars step 8 doesn't apply.

Continued from EL-85

Instrument Pack — Removal

  1. 1
    Remove battery negative cable from battery.
  2. 2
    Adjust tilt steering column (where fitted) to lowest position for access to instrument pack cowl fixing screws.
  3. 3
    Remove fixing screws from base of instrument pack cowl (2 off) and pull cowl forward to release cowl's rear fixing clips from dash panel.

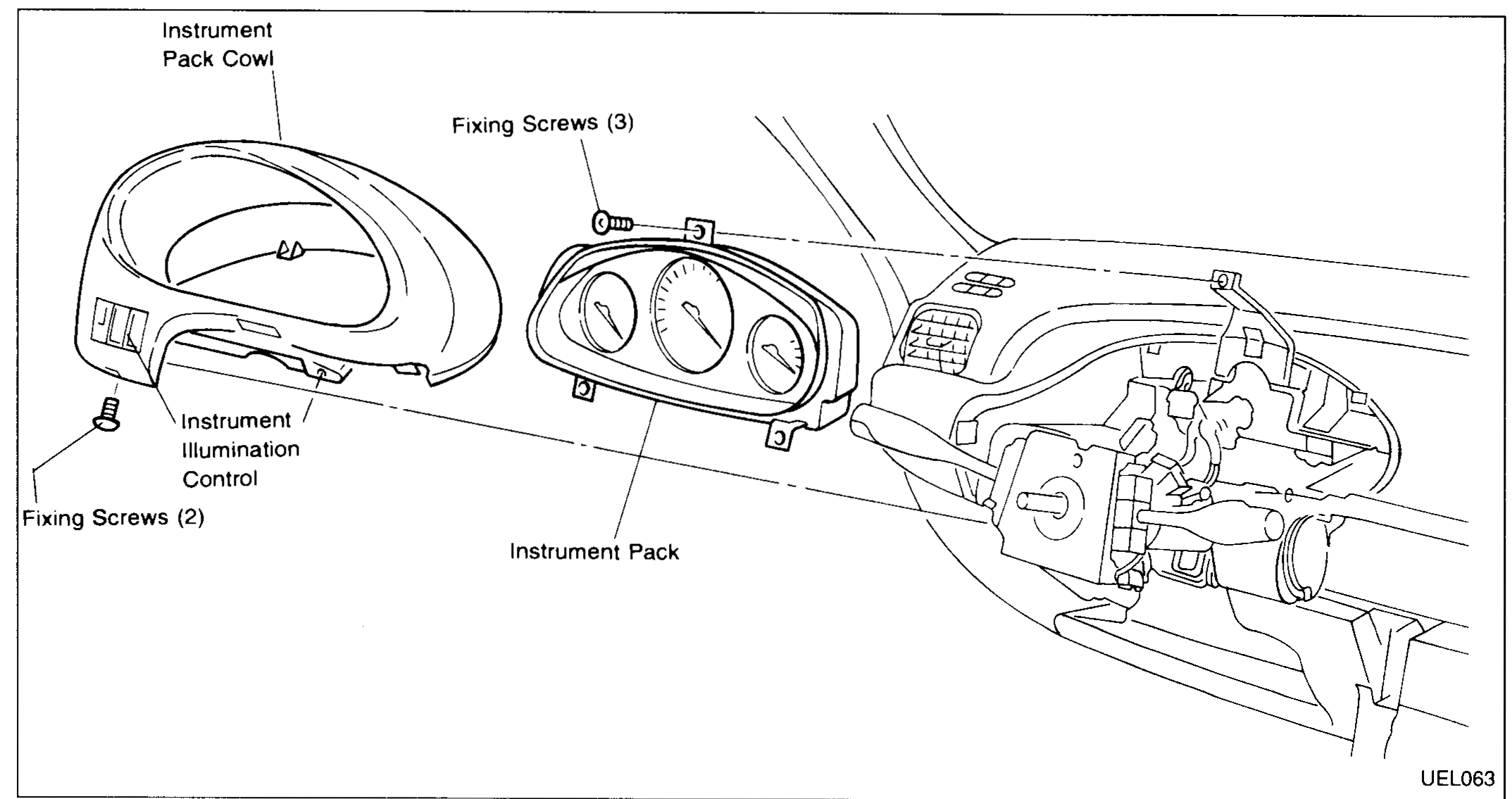

    Instrument pack and cowl callouts — Instrument Pack Cowl, Fixing Screws (3) for instrument pack, Instrument Illumination Control, Fixing Screws (2) for cowl, Instrument Pack visible behind cowl.
    UEL063
  4. 4
    Remove instrument illumination rheostat connector (and accessory switch connectors where fitted) from back of cowl.

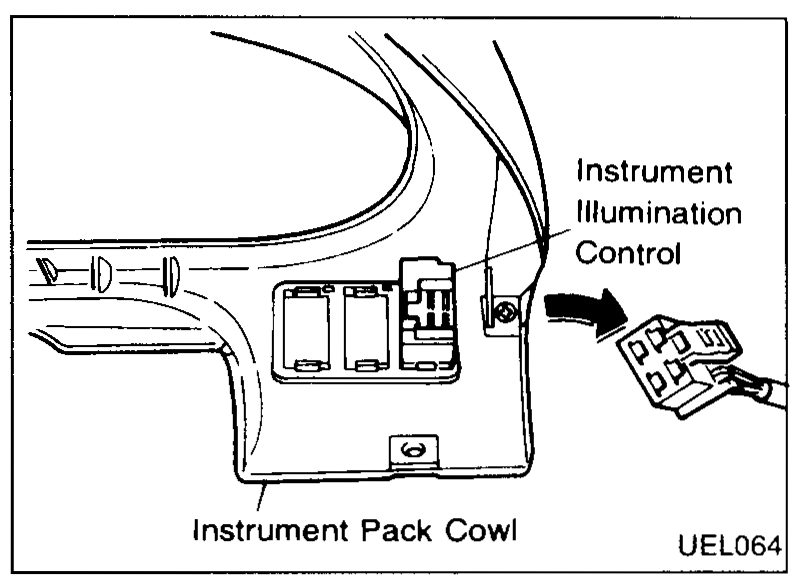

    Instrument Illumination Control rheostat — connector at back of cowl.
    UEL064
  5. 5
    Remove cowl.
  6. 6
    Remove instrument pack fixing screws (3 off) to release instrument pack from mounting brackets.
  7. 7
    Remove connectors (3 off) from rear of instrument pack by pressing side release buttons and pulling connector from back of pack.
  8. 8
    Remove speedometer cable from rear of instrument pack by pressing release lever and pulling cable connector away from pack.

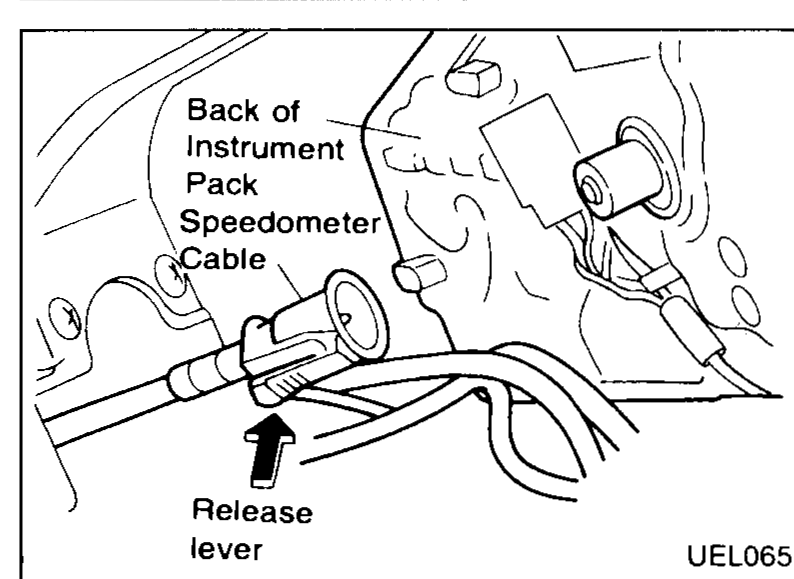

    Back of Instrument Pack — Speedometer Cable + Release lever callouts.
    UEL065
  9. 9
    Remove instrument pack.
