Headlamp - Bulb Replacement
EL-56prose procedureBulb Replacement
NOTE
The headlamp is a semi-sealed beam type which uses a replaceable halogen bulb for the main and dipped beam.
The headlamp unit also contains the clearance lamp and front turn signal indicator bulbs.
Headlamp bulb wattage
Main Beam/Dipped Beam
Rating12 V 60/55 W (H4)
Clearance Lamp
Rating12 V 5 W
Front turn signal lamp
Rating12 V 21 W (yellow)
NOTE
All headlamp bulbs can be replaced from the engine compartment side without removing the headlamp body from the vehicle.
Main/Dipped Beam (H4)
CAUTION
Grasp only the base when handling the bulb. Never touch the glass envelope.
Main/Dipped Beam (H4) bulb replacement
- 1
- 2

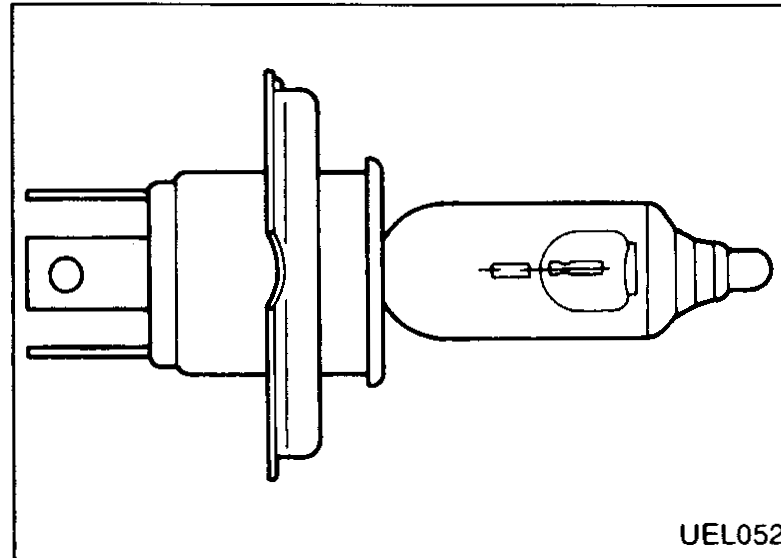

UEL052 - 3

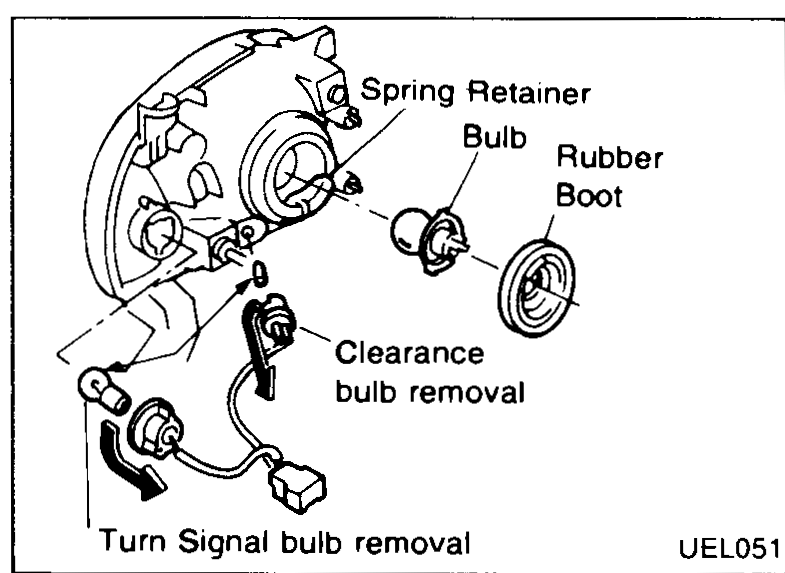

UEL051 - 4
- 5
- 6
Clearance Lamp
Clearance lamp bulb replacement
- 1
- 2
- 3

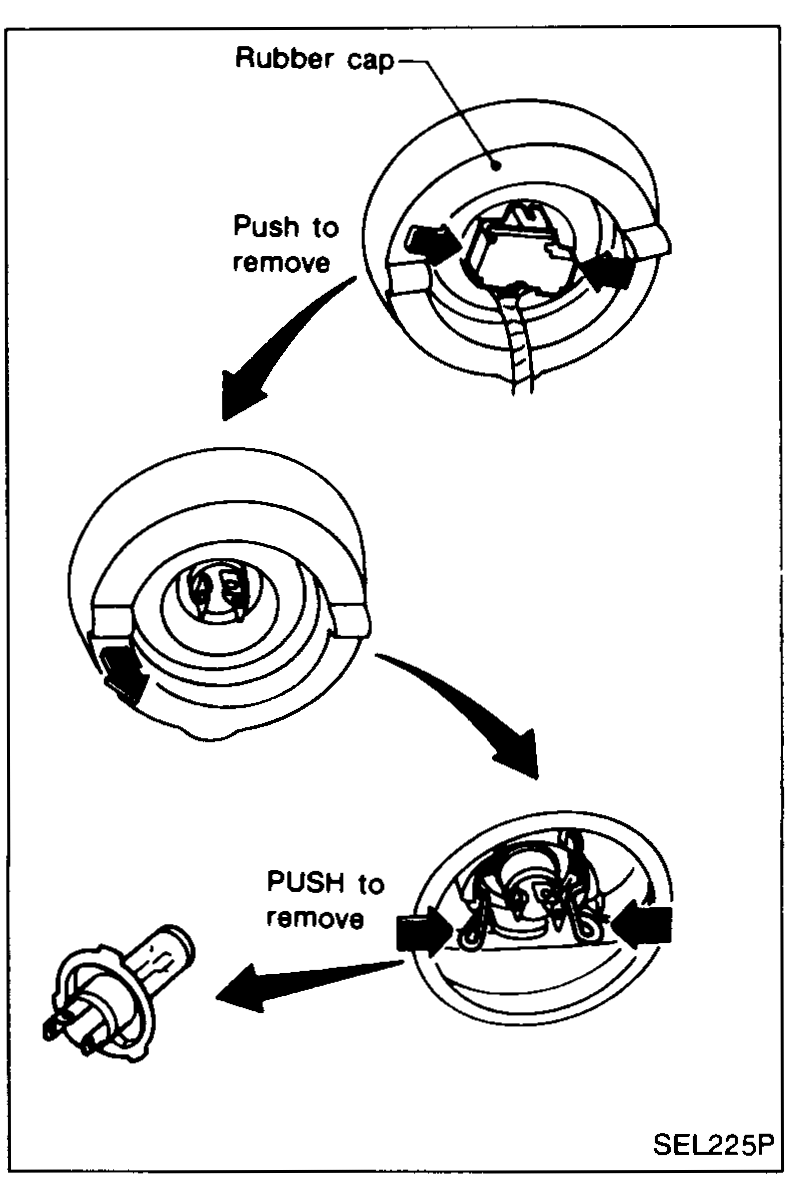

SEL225P - 4
- 5
- 6
Front Turn Signal Lamp
Front turn signal lamp bulb replacement
- 1
- 2
- 3
- 4
- 5
