Horn, Cigarette Lighter and Clock

EL-113prose procedure
Continued from EL-112

Horn — Replacement

  1. 1
    Remove fixing bolt (13 mm).

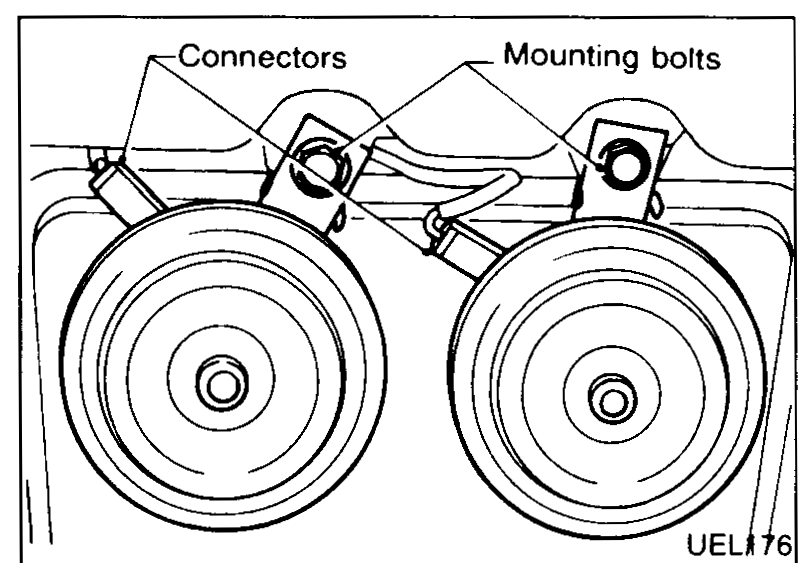

    Twin horns (high note and low note) mounted on a bracket. Callouts identify the connectors and mounting bolts.
    UEL176
  2. 2
    Disconnect connector from horn.
  3. 3
    Refit new horn in reverse order to removal procedure and test operation.
    For vehicles containing two horns (high note and low note) ensure correct horn is replaced. Pitch can be changed using adjusting bolt (5.5 mm) in back of horn.

Horn Switch — Replacement

  1. 1
    Pull horn pad from steering wheel.
    Steering wheel with horn pad; arrow indicates pulling the horn pad off the steering wheel.
    UEL177
  2. 2
    Disconnect connectors from switch at back of horn pad.
  3. 3
    Replace horn pad by press fitting to steering wheel and test operation.

Cigarette Lighter — Replacement

  1. 1
    Remove instrument centre console front fascia (Refer to BF Section).

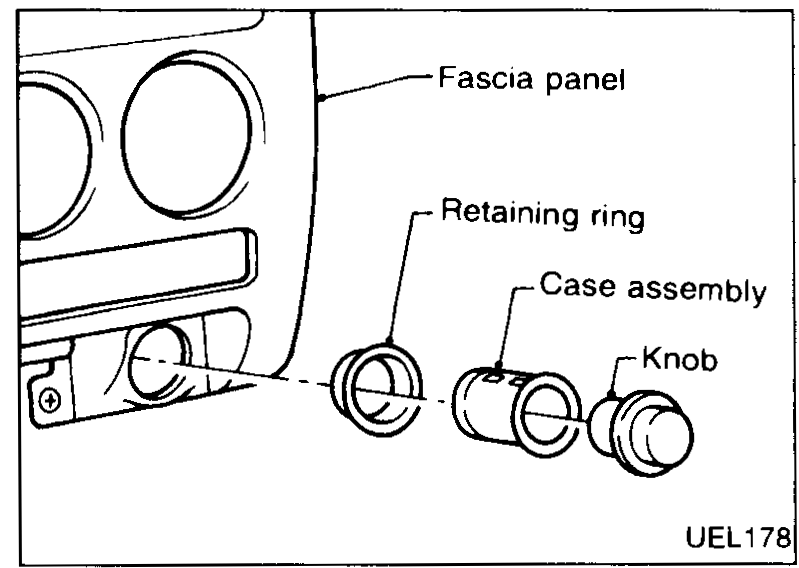

    Cigarette lighter assembly in the instrument fascia. Callouts identify the fascia panel, retaining ring, case assembly and knob.
    UEL178
  2. 2
    Prise defective case from fascia.
  3. 3
    Push fit replacement lighter assembly into instrument panel, the case is retained in place by plastic clips of ring.
  4. 4
    Test operation.
    The cigarette lighter knob and case assembly may be replaced as seperate items.
    The lighter illumination bulb is not replaceable, unit must be changed.

Clock

The clock is an integral part of the tachometer or coolant temperature gauge refer to "Meter and Gauges" section for details of replacement.
