STARTING SYSTEM — Starter — Removal/Installation + SDS (Supplement-VII)
EL-7007prose procedureBosch starter SDS — note the 'Reduction' cold-spec models have completely different no-load specs (lower rpm, higher current). Both Upper and Lower Mounting Bolts are 31.4-42.2 N·m.
Starter Motor
Removal and Installation
Removal
- 1Remove battery negative cable from battery.
- 2Remove air cleaner unit from top of engine.
- 3Remove upper starter motor mounting bolt (14 mm).

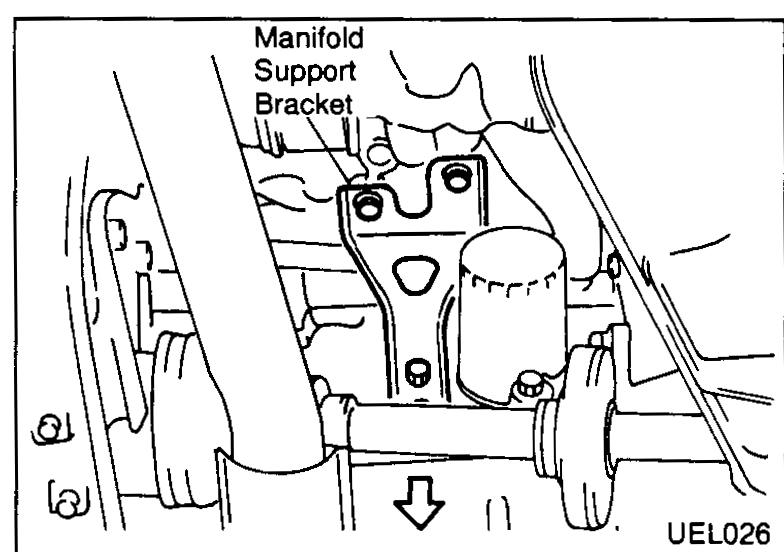

- 4From beneath car remove manifold support bracket.
UEL026 - 5Remove battery cable from starter motor.
- 6Disconnect harness connector from starter motor harness.
- 7Remove lower starter motor mounting bolt.
- 8Remove starter motor.
Installation
• Installation procedure is the reverse order of the removal procedure.
Service Data and Specifications (SDS)
STARTER
Type
Standard – CVT0 001 116 008
Standard – MT0 001 116 009
Cold spec – CVT0 001 107 092
Cold spec – MT0 001 107 093
Model
Standard – CVTNon-reduction
Standard – MTNon-reduction
Cold spec – CVTReduction
Cold spec – MTReduction
System voltage [V]
Standard – CVT12
Standard – MT12
Cold spec – CVT12
Cold spec – MT12
No-load Terminal volt [V]
Standard – CVT11.5
Standard – MT11.5
Cold spec – CVT11
Cold spec – MT11
No-load Current [A]
Standard – CVTLess than 48
Standard – MTLess than 48
Cold spec – CVTLess than 75
Cold spec – MTLess than 75
No-load Revolution [rpm]
Standard – CVTMore than 5800
Standard – MTMore than 5800
Cold spec – CVTMore than 2700
Cold spec – MTMore than 2700
Minimum diameter of commutator [mm]
Standard – CVT33.5
Standard – MT33.5
Cold spec – CVT31.8
Cold spec – MT31.8
Minimum length of brush [mm]
Standard – CVT3.0
Standard – MT3.0
Cold spec – CVT3.0
Cold spec – MT3.0
New brush plate recommended with brush length below [mm]
Standard – CVT7.5
Standard – MT7.5
Cold spec – CVT7.0
Cold spec – MT7.0
Brush spring tension [N·m]
Standard – CVT5.2 at 7.5 mm brush length
Standard – MT5.2 at 7.5 mm brush length
Cold spec – CVT7.7 at 7.0 mm brush length
Cold spec – MT7.7 at 7.0 mm brush length
Max. clearance between pinion front edge and pinion stopper [mm]
Standard – CVT3.9
Standard – MT3.9
Cold spec – CVT3.9
Cold spec – MT3.9
WARNING
Bosch part numbers: 0 001 116 008 / 009 for standard (non-reduction); 0 001 107 092 / 093 for cold spec (with reduction gear). The 'Reduction' models draw notably more current (less than 75A vs less than 48A) and turn slower at no-load (more than 2700 rpm vs more than 5800 rpm) because the reduction gearing trades speed for torque.
