Warning Lamps — Replacement
NOTE
Instrument warning bulbs can be replaced without disassembling the instrument pack.
Twist bulbholder anti-clockwise to remove.
Ensure correct wattage bulb is used when refitting.
3W
Used forFuel low, Battery Charge Warning Lamps
2W
Used forInstrument illumination
1-2W
Used forN·CVT, Main Beam, RH Turn, LH Turn, Brake, Oil and ABS Warning Lamps

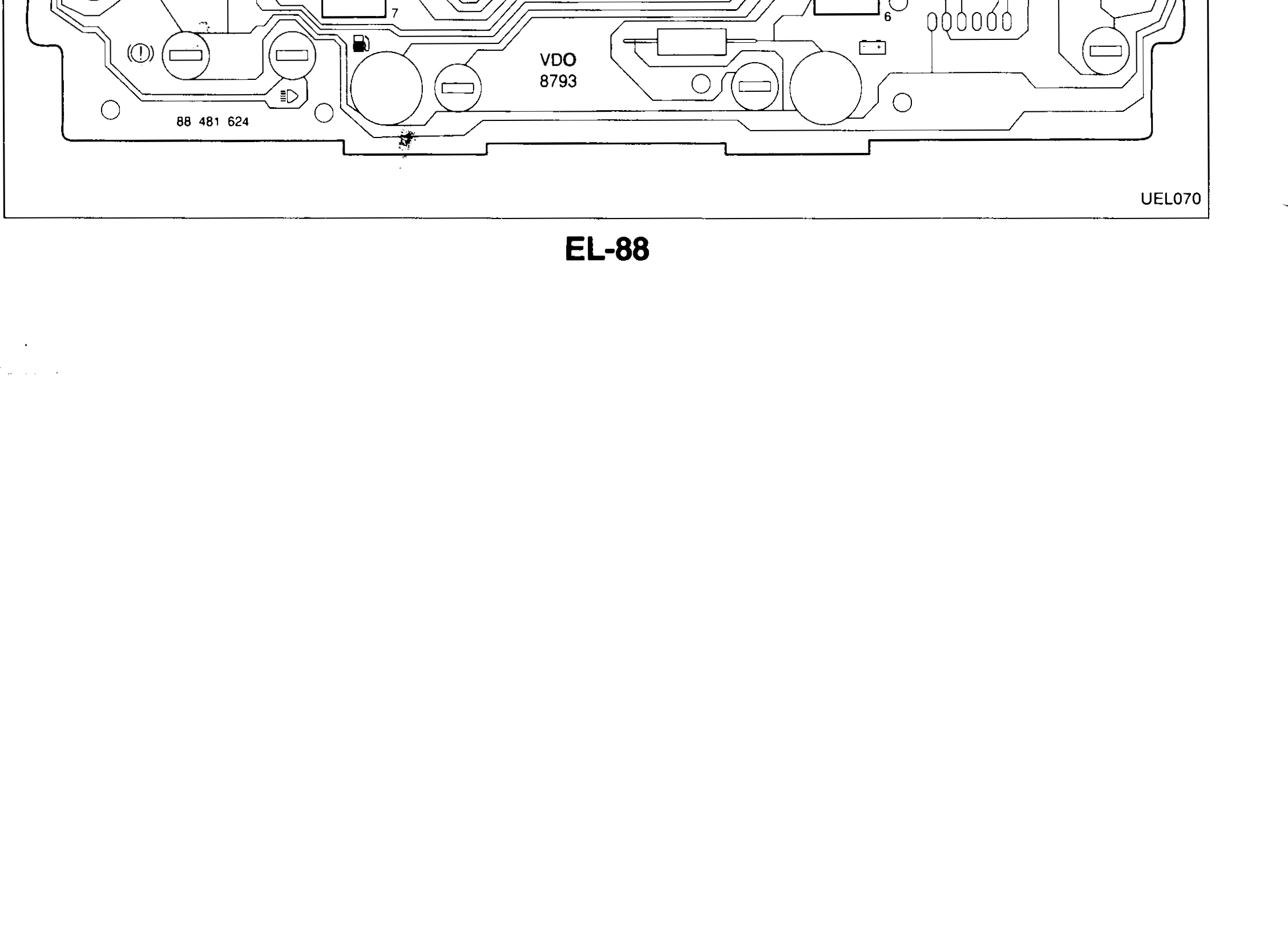

Flexible Printed Circuit Board — Replacement
- 1Remove all warning lamps from rear of instrument pack.
UEL070 - 2Remove 2 screws securing flexible printed circuit board (f.p.c.b.) to raised area of lower housing.
- 3Carefully peel f.p.c.b. from rear of lower housing retaining lugs.
NOTE
Replace components in reverse order, taking care not to damage f.p.c.b. and inserting warning lamps of the correct wattage into the appropriate aperture.
CAUTION
Instrument Pack repair should be performed in a clean dust-free environment.
