Harness Layout - Engine Room Harness (L.H.D. Models)

EL-128component photo

L.H.D. MODELS. Engine room harness connector location chart. Connector positions are approximate; many bubbles overlap densely in the original.

Continued from EL-127

Engine Room Harness

L.H.D. MODELS

Component LocationFig. fig1

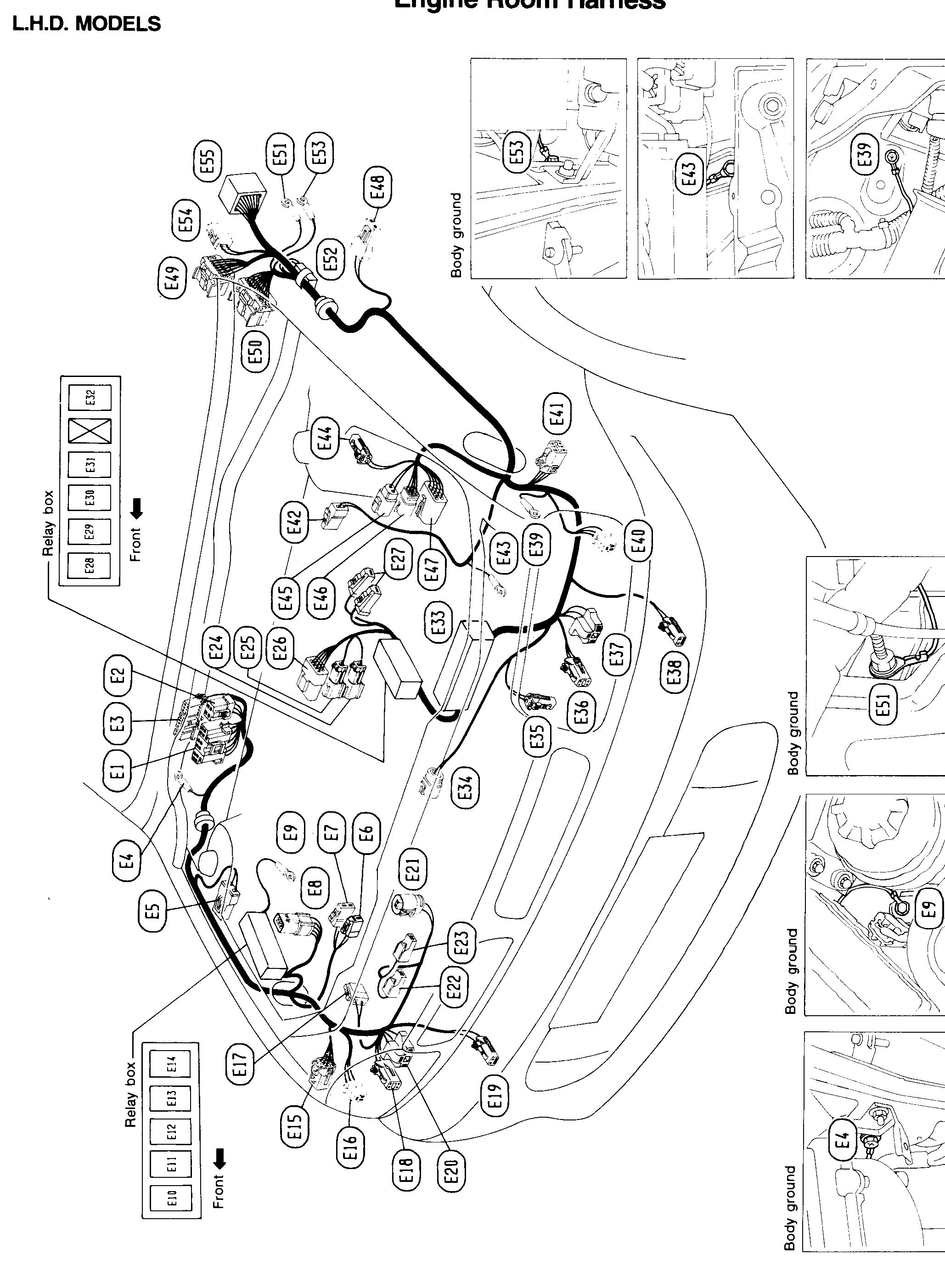

Engine room harness layout (L.H.D.) showing routing and the location of connectors E1 through E55, the relay box (positions E10-E14, E28-E32) and several body-ground points (E4, E39, E43, E53).

Engine room harness layout for L.H.D. models. Top-down/perspective view of the engine bay showing harness routing with numbered connector callouts E1 through E55 in oval bubbles. A relay box on the left (Front arrow) shows positions E10-E14 (lower stack) and E28-E32 (upper stack). Right margin has body-ground inset photos referencing connectors E53, E43, E39, E4 (Body ground locations).
MEL917B
1Relay box(Front left of engine bay; lower stack positions E10-E14, upper stack E28-E32)
2Connectors E1-E55(Distributed across engine bay along harness route)
3Body ground(Inset photos: E53, E43, E39, E4)
