Location of Electrical Units - Passenger Compartment (Cont'd) - R.H.D. Model
EL-1043component photoPassenger Compartment (Cont'd) - R.H.D. Model

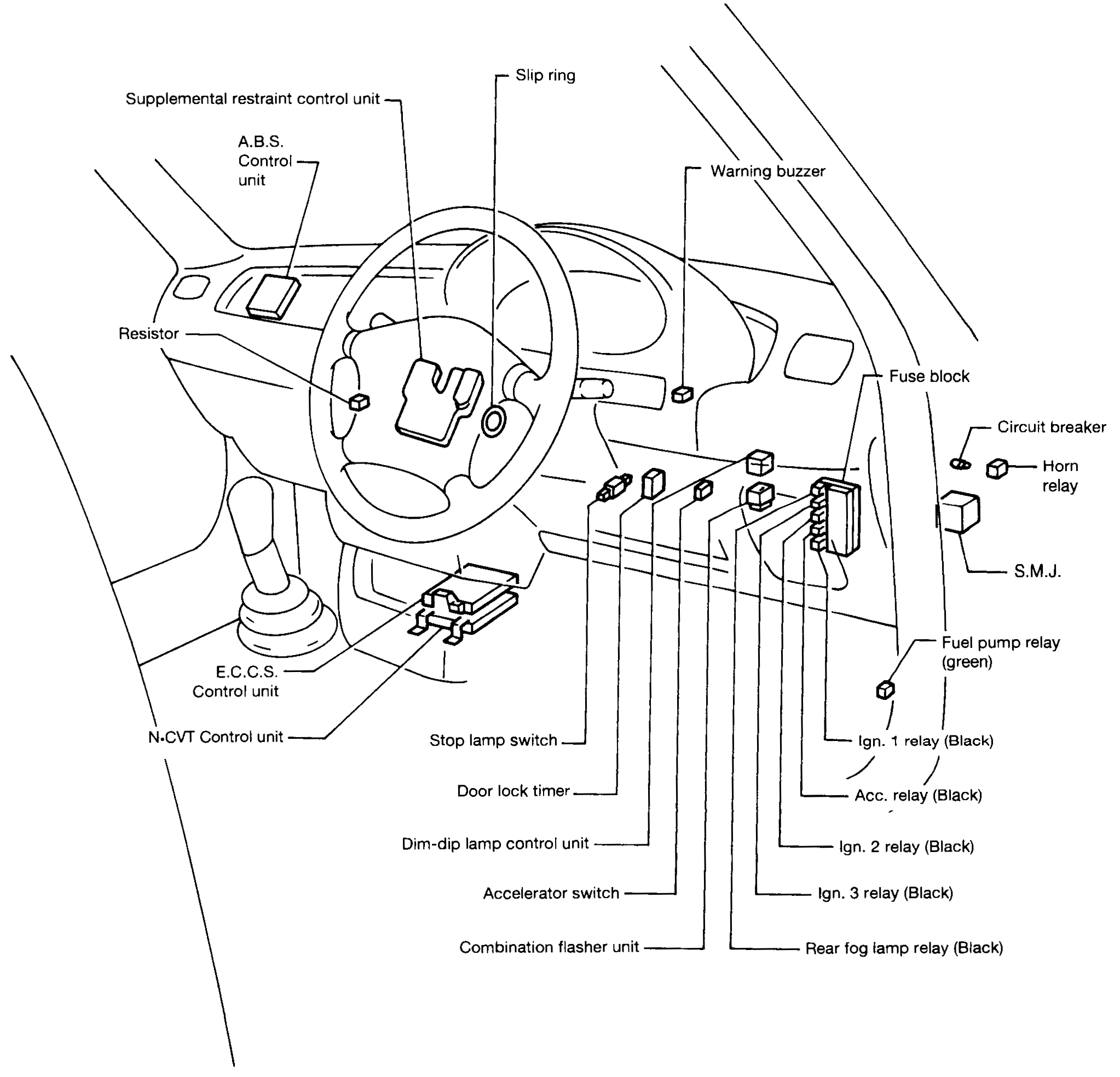

Component LocationFig. fig1
R.H.D. passenger compartment - location of electrical units
NEL067
1Supplemental restraint control unit(upper left of dashboard)
2A.B.S. Control unit(upper left of dashboard)
3Slip ring(centre of steering wheel)
4Warning buzzer(centre dash above steering column)
5Resistor(far left of dashboard)
6Fuse block(right of dash)
7Circuit breaker(far right, near fuse block)
8Horn relay(far right relay area)
9S.M.J.(right of dash)
10Fuel pump relay (green)(right relay cluster)
11Ign. 1 relay (Black)(right relay cluster)
12Acc. relay (Black)(right relay cluster)
13Ign. 2 relay (Black)(right relay cluster)
14Ign. 3 relay (Black)(right relay cluster)
15Rear fog lamp relay (Black)(right relay cluster)
16E.C.C.S. Control unit(left of centre console)
17N-CVT Control unit(left of centre console)
18Stop lamp switch(centre lower dash)
19Door lock timer(centre lower dash)
20Dim-dip lamp control unit(centre lower dash)
21Accelerator switch(centre lower dash)
22Combination flasher unit(centre lower dash)
