STARTING SYSTEM — Starter — Yoke Assembly Check / Armature Check

EL-30prose procedure

Commutator min-diameter value is on the SDS page at end of section, not here.

Continued from EL-29

Yoke Assembly Check

Armature Check

  1. 1

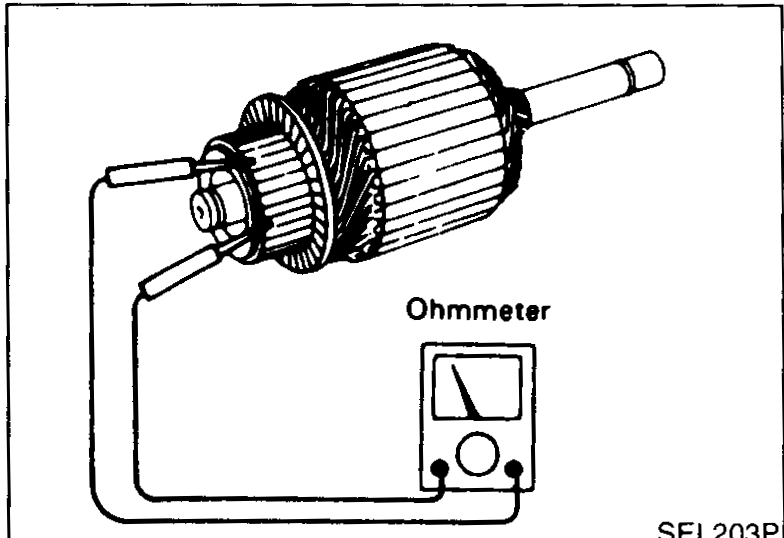

    Test continuity between adjoining segments. No continuity ... Replace.
    Armature continuity test — ohmmeter probes between two adjoining commutator segments.
    SEL203P
  2. 2
    Insulation test (between each commutator bar and shaft). Continuity exists ... Replace.
    Armature insulation test — ohmmeter probes between a commutator bar and the armature shaft.
    SEL204P
  3. 3

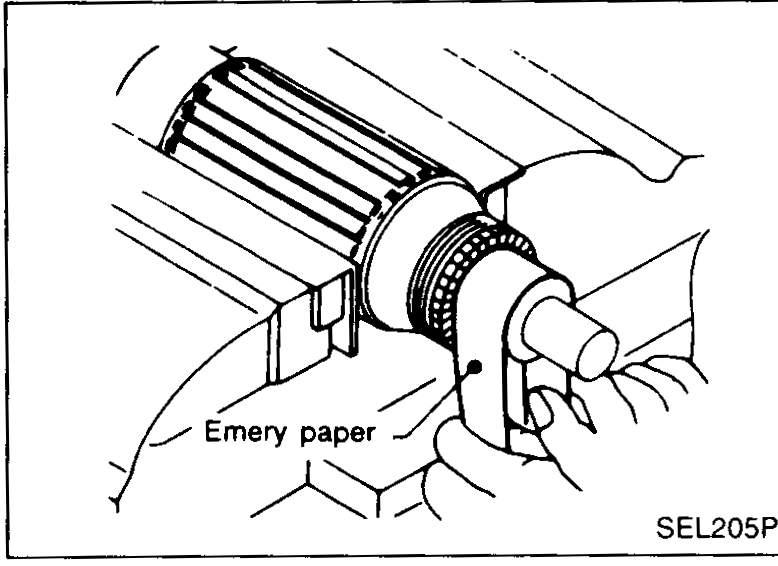

    Check commutator surface. Check the armature and commutator for wear or damage. A dirty or burned surface may be cleaned with fine grade emery paper.
    Commutator surface dressing — fine-grade emery paper applied to the commutator while rotated by hand.
    SEL205P
  4. 4

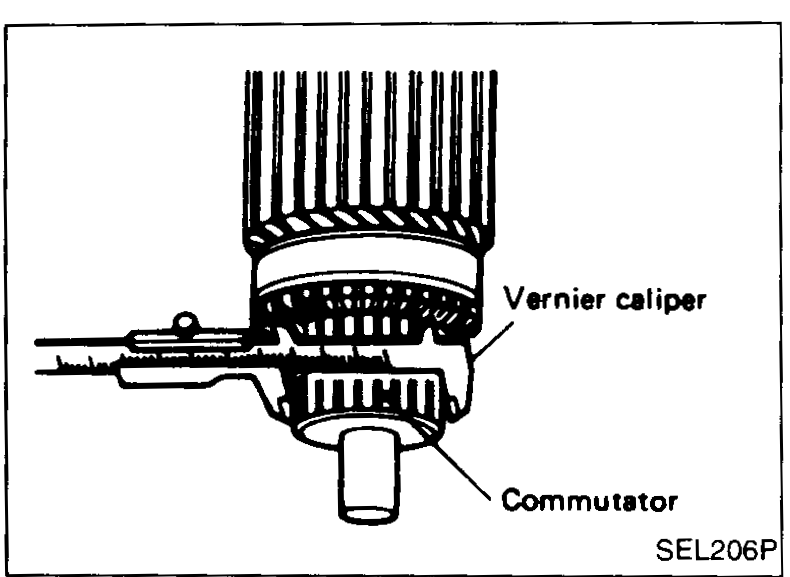

    Check diameter of commutator. Commutator minimum diameter: Refer to "Service Data and Specifications". Less than specified value ... Replace.
    Commutator outer-diameter measurement with vernier caliper.
    SEL206P
