Wipers and Washers — Rear Washer Nozzle, Spray Patterns
EL-110spec tableFront washer spray pattern shown separately for RHD (UEL100) and LHD (UEL101) — mirror-image jet layouts.
Rear Washer Nozzle — Replacement
- 1Open Back Door.
- 2Remove Washer Tubing.
- 3Undo and remove nozzle securing nut.

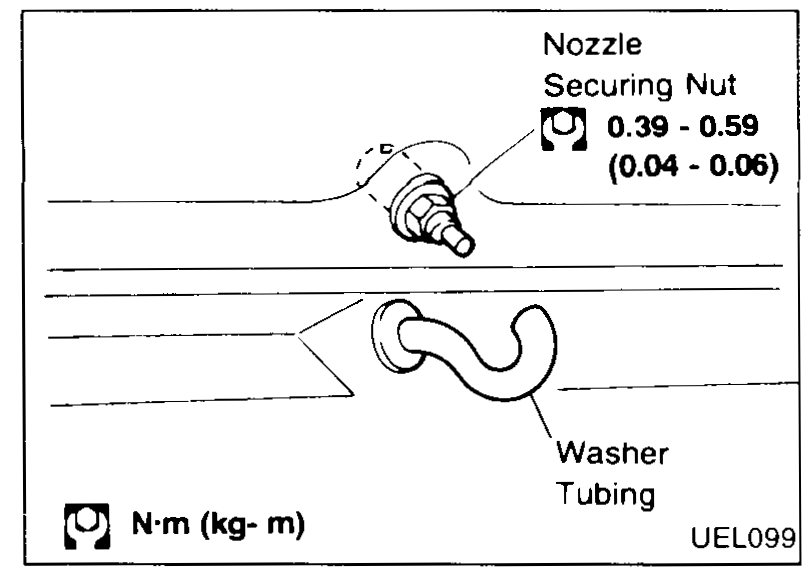

UEL099 - 4Remove nozzle.Refit using reverse procedure to removal.Adjust aiming to attain correct spray pattern.
Front Washer Spray Pattern
Ensure that washers operate correctly and that spray jets hit the screen within the specified areas so that washer fluid is contained within the wiper swept area.
Front Washer Spray Pattern dimensions
⌀ A
Dimension80 (mm)
Reference⌀ C
Dimension80 (mm)
⌀ B
Dimension80 (mm)
Reference⌀ D
Dimension80 (mm)
1
Dimension163 (mm)
Reference5
Dimension121 (mm)
2
Dimension419 (mm)
Reference6
Dimension118 (mm)
3
Dimension292 (mm)
Reference7
Dimension374 (mm)
4
Dimension467 (mm)
Reference8
Dimension238 (mm)
Rear Washer Spray Pattern
Ensure that washer operates correctly and that spray jets hit the screen in the specified areas when the vehicle is stationary.
Rear Washer Spray Pattern dimensions
⌀ A
Dimension50 (mm)
⌀ B
Dimension50 (mm)
1
Dimension50 (mm)
2
Dimension30 (mm)
3
Dimension35 (mm)
