AUDIO AND ANTENNA - Radio Removal and Installation

EL-122prose procedure
Continued from EL-121

Radio - Removal

  1. 1
    Remove negative battery cable from battery.

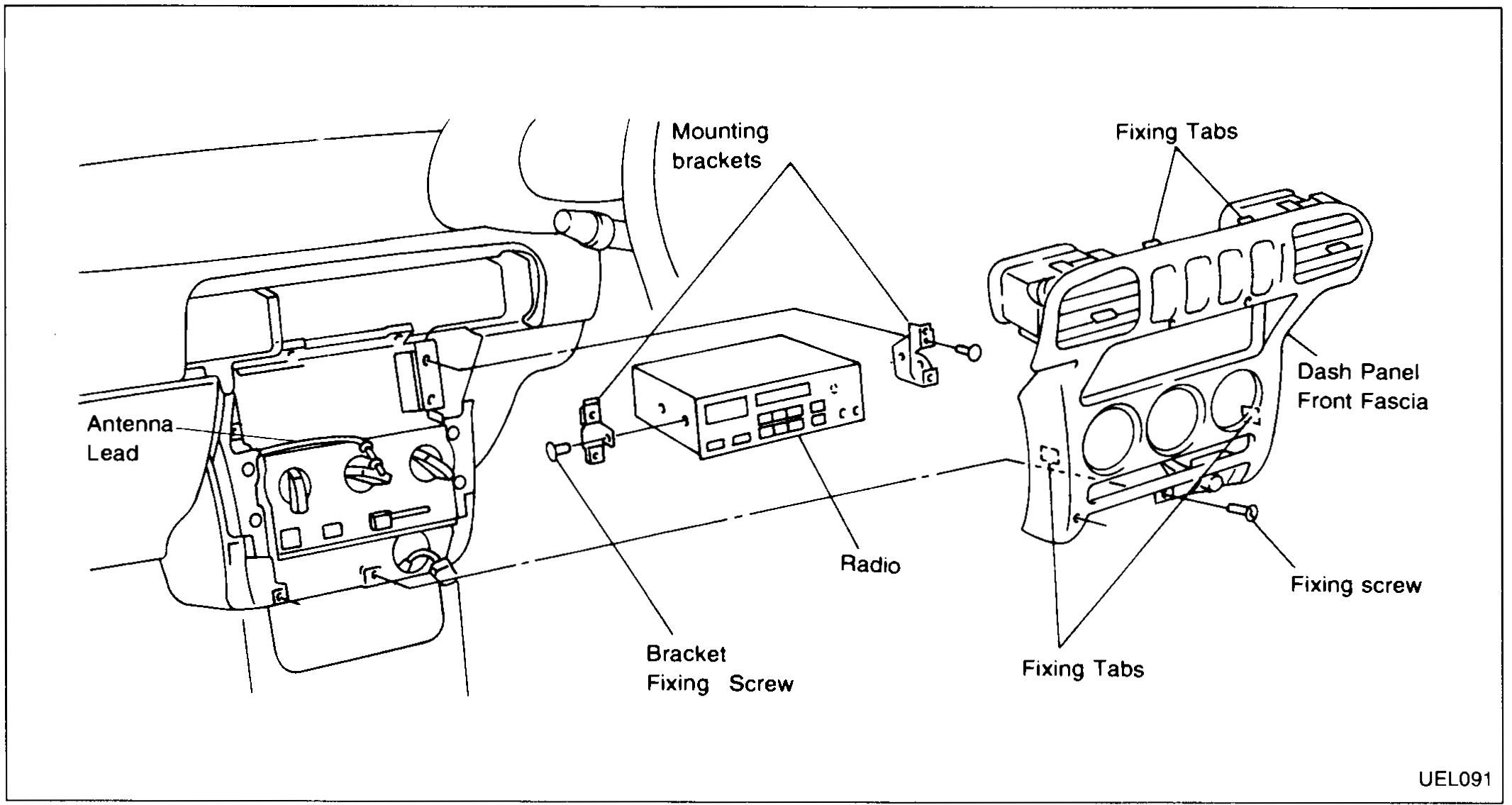

    Exploded view of radio installation in the dashboard. Shows the antenna lead at left, the radio unit with mounting brackets, the dash panel front fascia at right with fixing tabs, and the bracket fixing screw and fixing screw locations. Callouts identify Antenna Lead, Mounting brackets, Radio, Bracket Fixing Screw, Dash Panel Front Fascia, Fixing Tabs (top and bottom), and Fixing screw.
    UEL091
  2. 2
    Remove fixing screws from front dashboard fascia.
  3. 3
    Press in fascia fixing wings and remove panel.
  4. 4
    Remove four fixing screws from radio mounting bracket.
  5. 5
    Disconnect antenna and power/speaker connectors from rear of radio.
  6. 6
    Remove radio.

Radio - Installation

  1. 1
    Installation is the reverse procedure of removal.
