Headlamp - Removal / Installation
EL-55prose procedure| Specification | Value |
|---|---|
| Nuts (2 off) | 4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb) |
| Lower fixing screw | 4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb) |
| Upper fixing screw | 4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb) |
Nuts (2 off)
4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb)
Lower fixing screw
4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb)
Upper fixing screw
4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb)
Removal
Headlamp removal
- 1
- 2
- 3
- 4

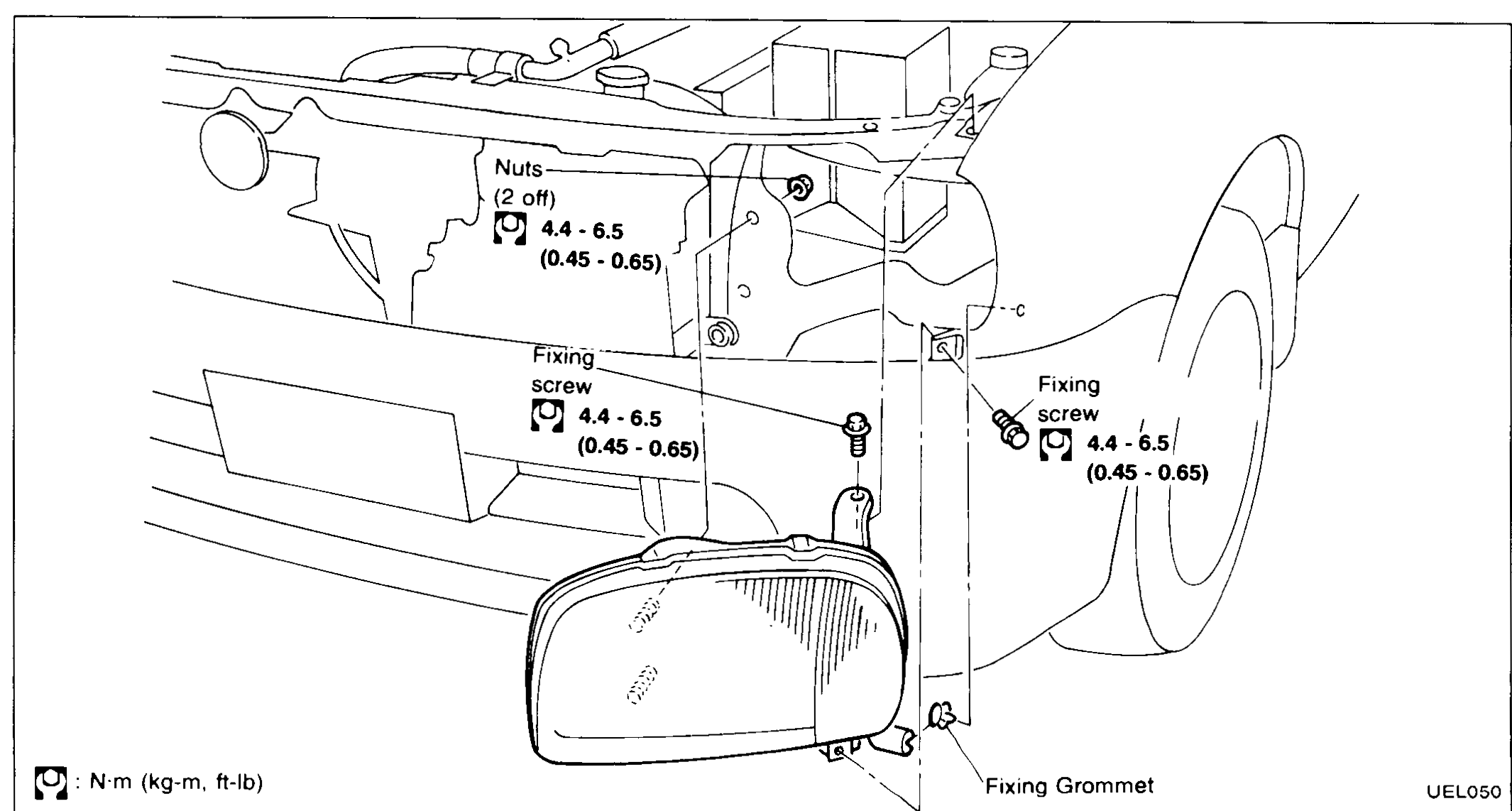

UEL050 - 5
- 6
- 7
- 8
Installation
Headlamp installation
- 1
- 2
- 3
WARNING
• Ensure all bulb sockets and wiring are fully secured to the lamp housing and all connectors are securely locked into position.
• Do not pull on harness wire to move lamp.
• Do not use organic solvents on the lamp housing.
See also
BF - Body Front Grille
