NATS (Nissan Anti-Theft System) / Gasoline engine — CONSULT-II Inspection Procedure (Supplement-VII)

EL-7059prose procedure

CONSULT-II inspection procedure for NATS. Program card AEN00A required. DLC behind fuse-box cover in driver footwell. Source typo: 'RESELTS' for 'RESULTS' on menu screenshot.

Continued from EL-7058

CONSULT-II

CONSULT-II INSPECTION PROCEDURE

  1. 1
    Turn ignition switch OFF.
  2. 2
    Insert NATS program card into CONSULT-II. Program card: NATS (AEN00A)
  3. 3

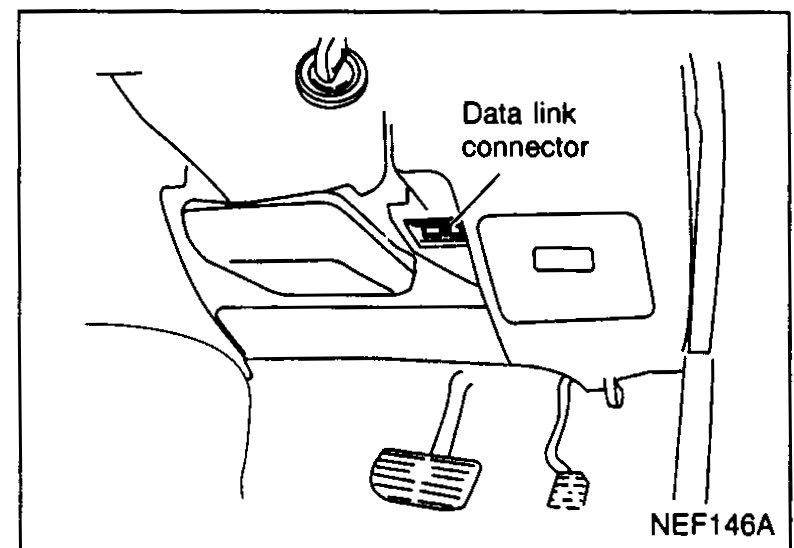

    Connect CONSULT-II to Data link connector which is located behind the fuse box cover.
    Driver-side footwell view showing the Data link connector behind the fuse box cover (CONSULT-II diagnostic port). Brake pedal partially visible.
    NEF146A
  4. 4
    Turn ignition switch ON.
  5. 5
    Touch 'START'.
    CONSULT-II startup screen showing NISSAN logo + CONSULT-II + EEN99A program version + START button.
    SEL149X
  6. 6
    Perform each diagnostic test mode according to each service procedure.

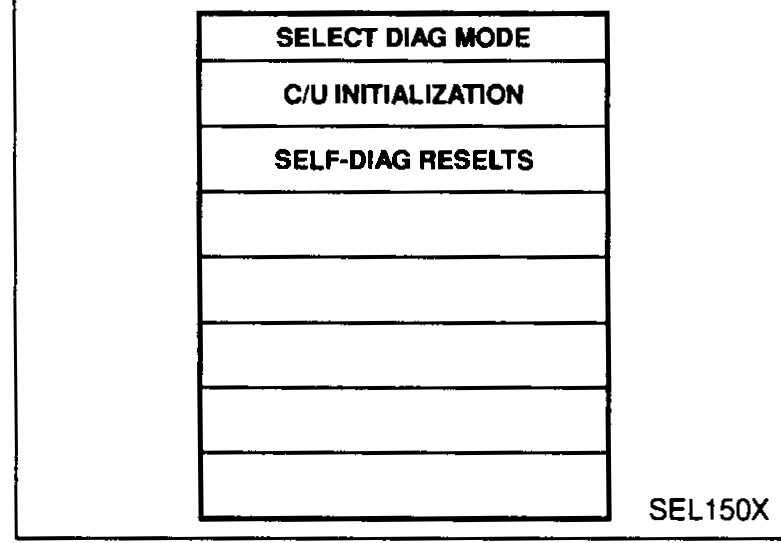

    CONSULT-II diagnostic menu showing options: SELECT DIAG MODE / C/U INITIALIZATION / SELF-DIAG RESULTS.
    SEL150X
For further information, see the CONSULT-II Operation Manual, NATS.
