Exterior Lamps - Side Turn Signal Lamp / Combination Flasher Unit / Flasher Unit Check
EL-75prose procedureSide Turn Signal Lamp - Bulb Replacement

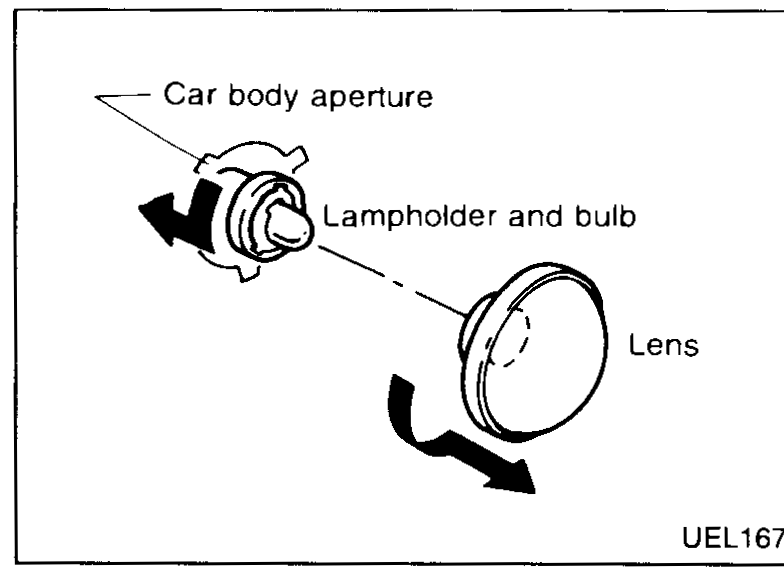

Side turn signal lamp bulb replacement
- 1
- 2
UEL167 - 3
- 4
| Specification | Value |
|---|---|
| Bulb | 12V 5W |
Bulb
12V 5W
NOTE
• Push fit side turn lamp holder into body aperture to refit.
Combination Flasher Unit
NOTE
• The flasher unit is non-serviceable and can only be replaced as a complete unit.
Location
NOTE
• The flasher control unit is located on the steering column cross member.
Flasher Unit Check
NOTE
• Before checking ensure that standard bulbs are fitted.
• Connect a battery and test lamp to the combination flasher unit as shown. Combination flasher unit is properly functioning if it blinks when power is supplied to the circuit.
