EXTERIOR LAMPS — High Mounted Stop Lamp / License Plate Lamp

EL-60prose procedure

License-plate-lamp lens uses captive screws — they stay in the lens when undone (useful detail; means they won't fall into the bumper cavity).

Continued from EL-59

HIGH MOUNTED STOP LAMP — Bulb replacement

  1. 1
    Remove battery negative cable from battery.
  2. 2
    Open Back Door to access lamp.
  3. 3
    Remove screws in lamp rear cover and remove cover.

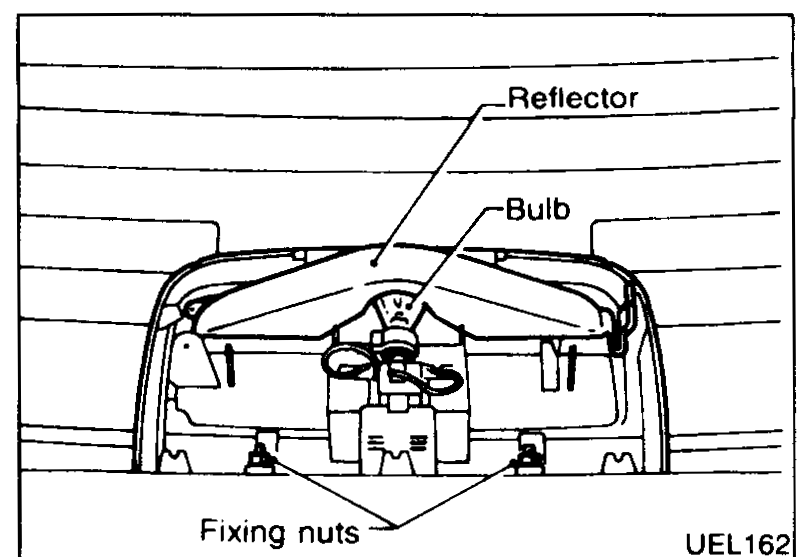

    High-mounted stop lamp viewed from inside back-door trim — Reflector, Bulb, Fixing nuts callouts.
    UEL162
  4. 4
    Unclip reflector.
  5. 5
    Twist out defective bulb and replace.
    1. Bulb: 12V 21W

HIGH MOUNTED STOP LAMP — Removal and Installation

  1. 1
    Remove battery negative cable from battery.
  2. 2
    Remove screws in lamp rear cover (2 off) and remove cover.
  3. 3
    Remove fixing nuts and remove assembly.

LICENSE PLATE LAMP — Bulb removal

  1. 1
    Remove battery negative cable from battery.
  2. 2
    Unscrew lens fixing screws (2 off), pull off lens cover (screws remain captive).
    License plate lamp under rear-bumper trim — Captive screws callout on lens-fixing.
    UEL163
  3. 3
    Pull out defective bulb and replace.
    1. Bulb: 12V 5W
