HEADLAMP — Removal / Installation
EL-55prose procedureUnverifiedTorque heading on the diagram says 'N·m (kg-m, ft-lb)' but only two numbers shown (4.4-6.5 / 0.45-0.65) — looks like the ft-lb column is missing. Captured both numbers per source.
Removal
- 1Remove battery negative earth cable from battery.
- 2Remove headlamp wiper arm (where fitted).
- 3Remove body front grille by releasing square-head fixing studs (2 off) and prising grille from body fasteners (see BF section for details).
- 4Remove lower fixing screw.

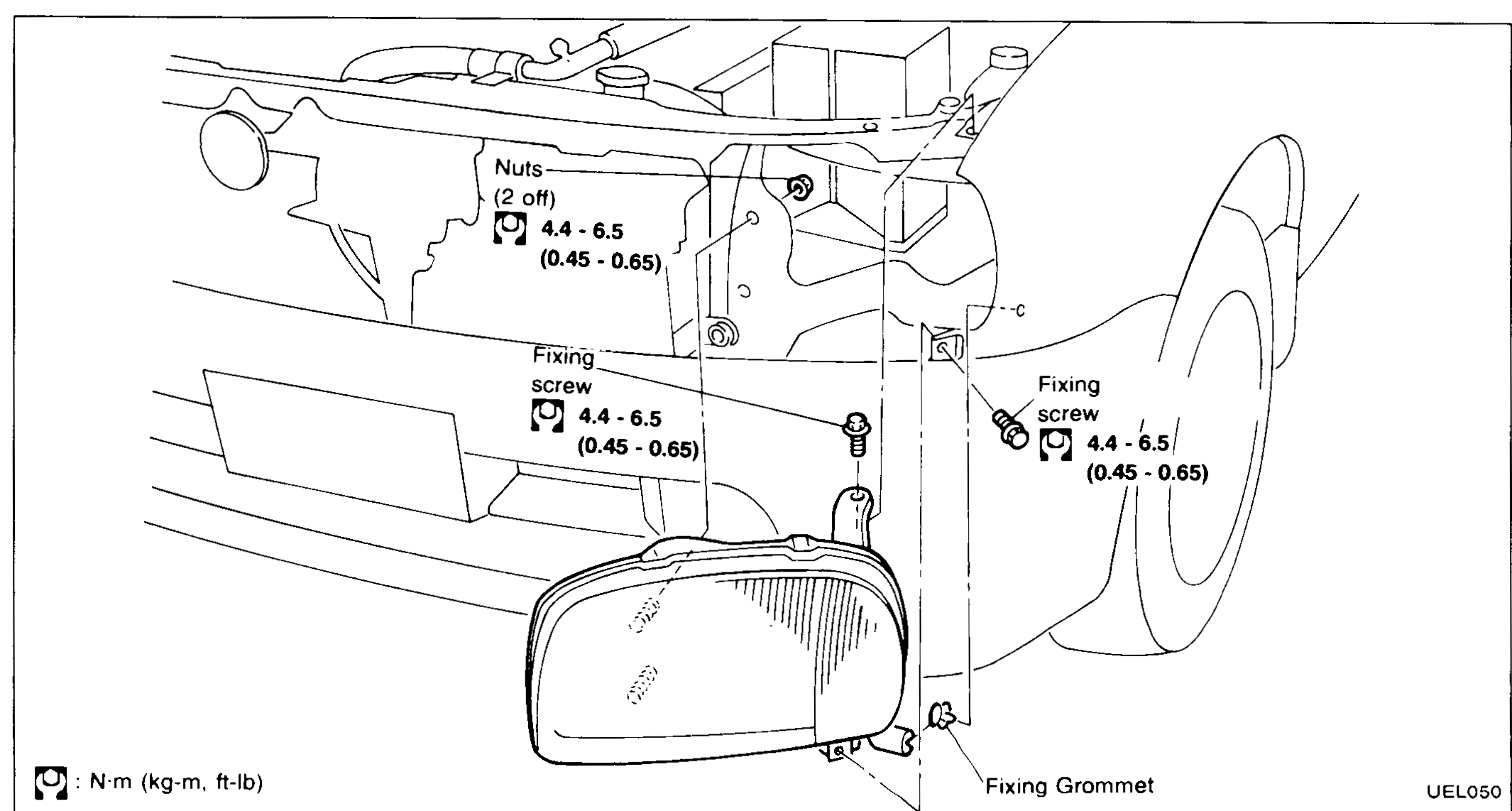

UEL050 - 5Remove lower and upper retaining nuts.
- 6Remove upper fixing screw.
- 7Remove electrical connectors from back of headlamp.
- 8Remove headlamp.
Installation
- 1Align headlamp with mountings and locate fixing grommet to position.
- 2Installation is the reverse process to removal, ensure fixing screws and nuts are fitted in the reverse order to removal and tightened to the specified torque figures.
- 3Check headlamp aiming is within specifications and adjust if necessary (see headlamp aiming procedure).
CAUTION
• Ensure all bulb sockets and wiring are fully secured to the lamp housing and all connectors are securely locked into position.
• Do not pull on harness wire to move lamp.
• Do not use organic solvents on the lamp housing.
| Specification | Value |
|---|---|
| Headlamp retaining nuts (2 off) | 4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb) |
| Headlamp fixing screws (upper + lower) | 4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb) |
Headlamp retaining nuts (2 off)
4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb)
Headlamp fixing screws (upper + lower)
4.4 - 6.5N·m (0.45 - 0.65 kg-m, ft-lb)
