POWER SUPPLY PROTECTION
EL-1002prose procedureDiagrams differentiate LHD and RHD models.
Fuses
- aIf fuse is blown, be sure to eliminate cause of problem before installing new fuse.

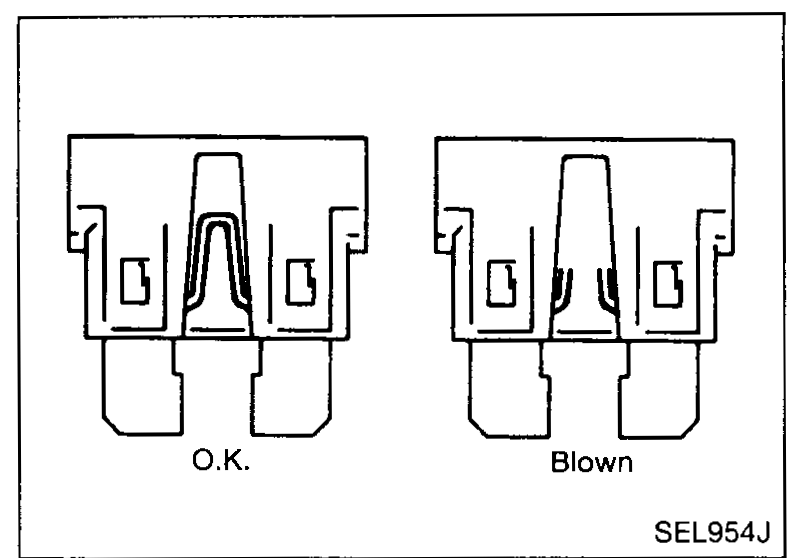

SEL954J - bUse fuse of specified rating. Never use fuse of more than specified rating.
- cDo not install fuse in oblique direction; always insert it into fuse holder properly.
- dRemove fuse for clock if vehicle is not used for a long period of time.
- eUse fuse puller provided in fuse box to remove fuses.
FUSE LOCATION
NOTE
• Power Supply Fuses are located in fuselink box at front of engine compartment.
• Component protection fuses are located in main fuse box situated in lower driver-side dash panel.
FUSE RATINGS
| Specification | Value |
|---|---|
| RED | 10A |
| BLUE | 15A |
| YELLOW | 20A |
RED
10A
BLUE
15A
YELLOW
20A
