Location of Electrical Units - Passenger Compartment (Cont'd)
EL-125component photoR.H.D. MODEL. Diagram shows passenger compartment electrical unit locations for right-hand-drive vehicles. References N-CVT control unit (automatic transmission variant).
Passenger Compartment (Cont'd)

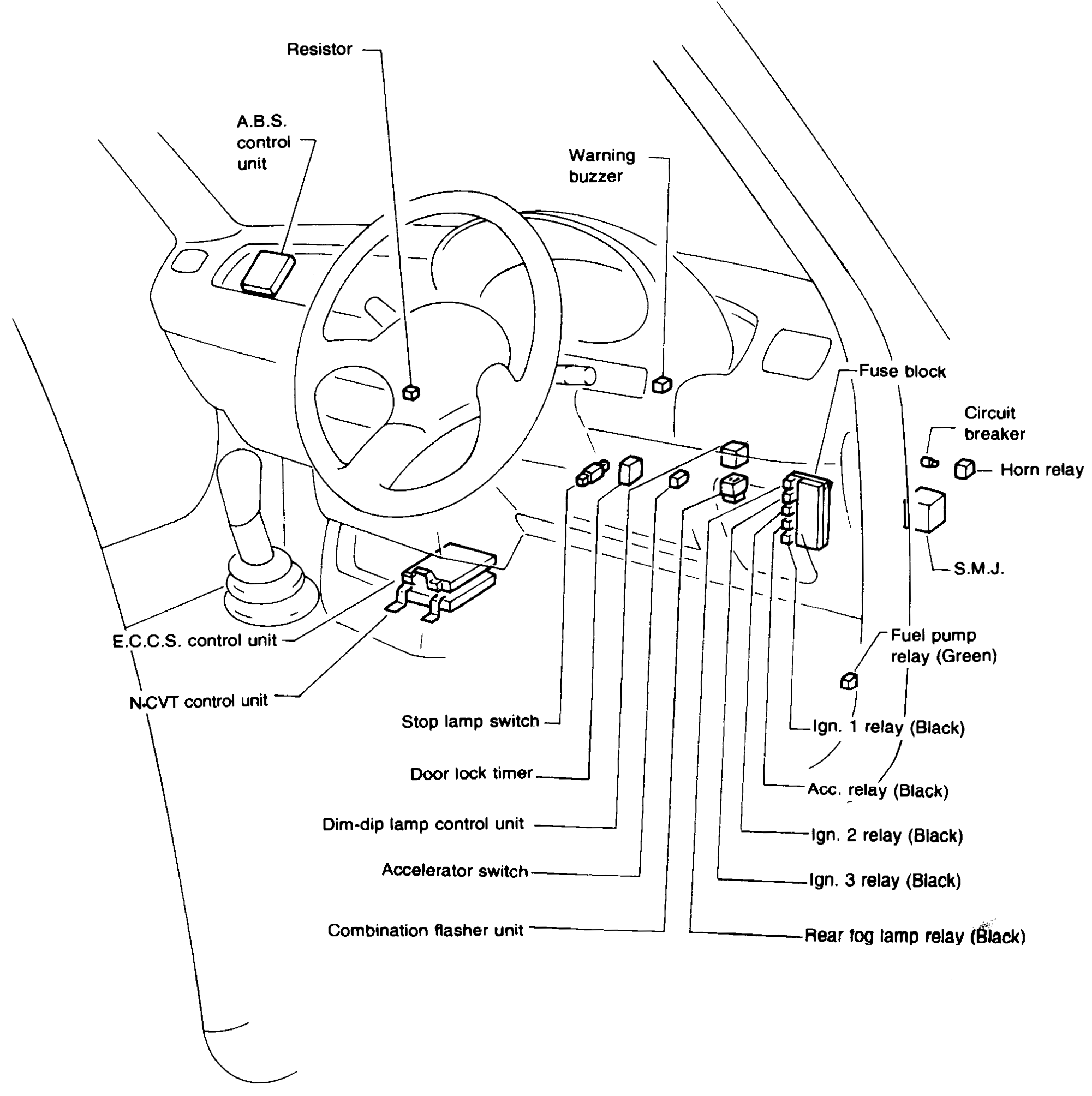

R.H.D. MODEL
Component LocationFig. fig1
R.H.D. passenger compartment diagram locating electrical units around the dashboard, steering column, centre console and right-side relay/fuse cluster.
NEL003
1A.B.S. control unit(Left side of dash)
2Resistor(Behind steering column)
3Warning buzzer(Right of steering column)
4Fuse block(Right side of dash)
5Circuit breaker(Right of fuse block)
6Horn relay(Right side cluster)
7S.M.J.(Right side)
8Fuel pump relay (Green)(Right relay cluster)
9Ign. 1 relay (Black)(Right relay cluster)
10Acc. relay (Black)(Right relay cluster)
11Ign. 2 relay (Black)(Right relay cluster)
12Ign. 3 relay (Black)(Right relay cluster)
13Rear fog lamp relay (Black)(Right relay cluster)
14E.C.C.S. control unit(Centre console / lower dash)
15N-CVT control unit(Centre console / lower dash)
16Stop lamp switch(Pedal area)
17Door lock timer(Lower dash centre)
18Dim-dip lamp control unit(Lower dash centre)
19Accelerator switch(Lower dash centre)
20Combination flasher unit(Lower dash centre)
