Harness Layout - Outline
EL-127component photoSeparate outline diagrams for L.H.D. and R.H.D. models. 5-door model rear door harnesses noted.
Outline

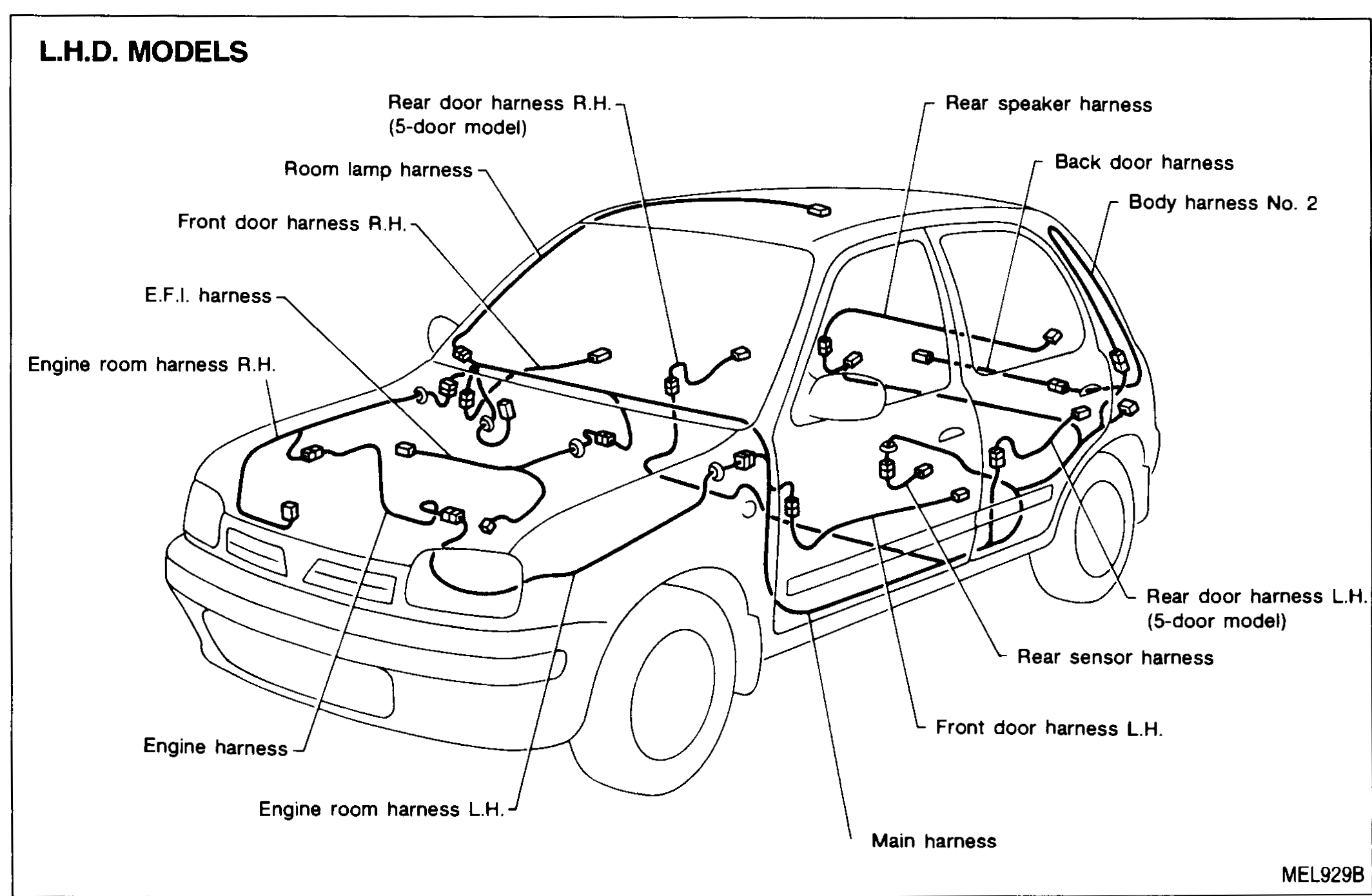

L.H.D. MODELS
Component LocationFig. fig1
L.H.D. harness layout outline. Identifies all body/engine harness segments and their routing.
MEL929B
1Rear door harness R.H. (5-door model)(Rear right door)
2Room lamp harness(Roof centre)
3Front door harness R.H.(Front right door)
4E.F.I. harness(Engine bay)
5Engine room harness R.H.(Engine bay right)
6Rear speaker harness(Rear roof / parcel shelf)
7Back door harness(Tailgate)
8Body harness No. 2(Rear body)
9Rear door harness L.H. (5-door model)(Rear left door)
10Rear sensor harness(Rear underbody)
11Front door harness L.H.(Front left door)
12Main harness(Cabin centre floor)
13Engine harness(Engine block)
14Engine room harness L.H.(Engine bay left)

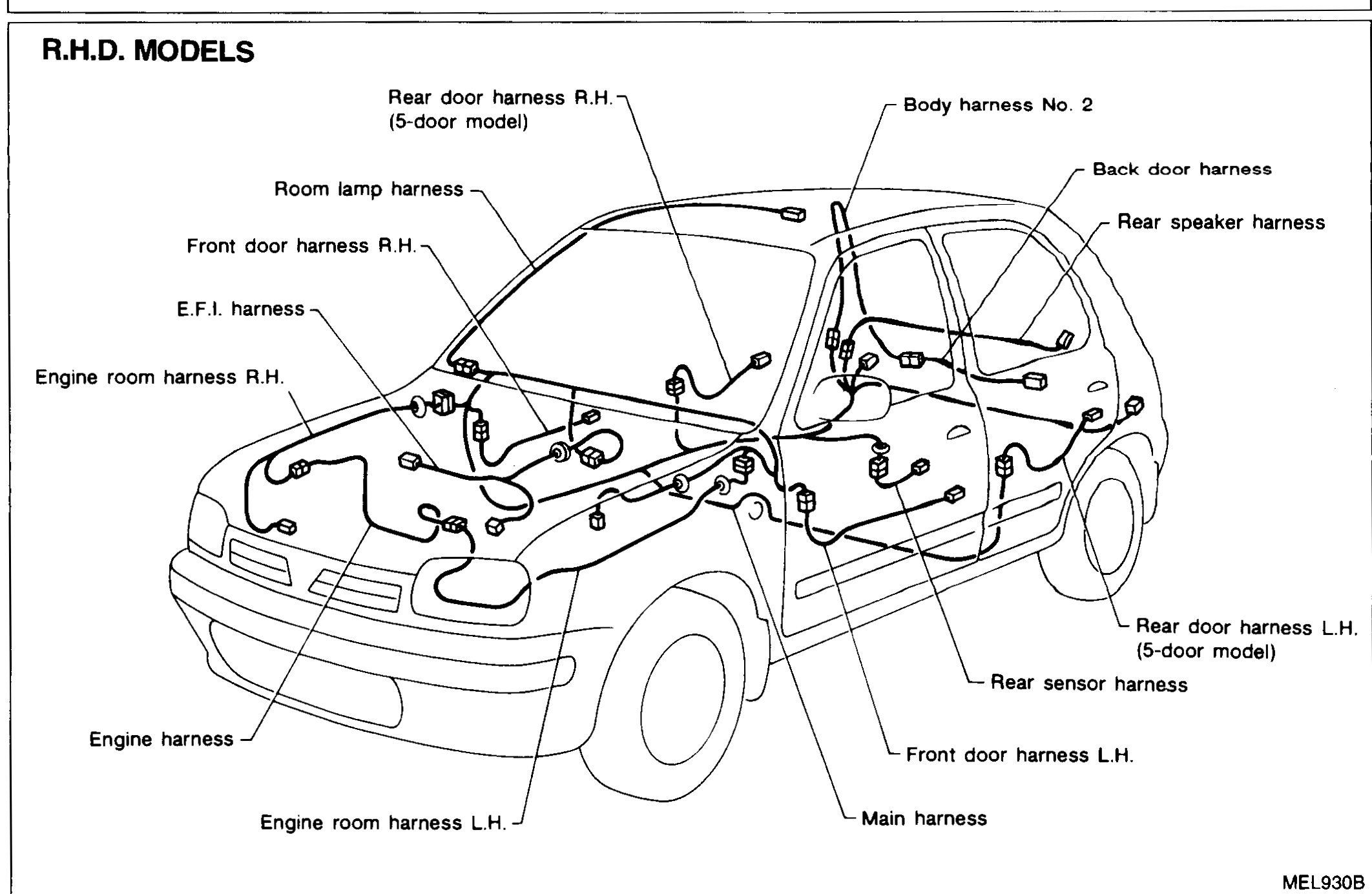

R.H.D. MODELS
Component LocationFig. fig2
R.H.D. harness layout outline. Identifies all body/engine harness segments and their routing.
MEL930B
1Rear door harness R.H. (5-door model)(Rear right door)
2Room lamp harness(Roof centre)
3Front door harness R.H.(Front right door)
4E.F.I. harness(Engine bay)
5Engine room harness R.H.(Engine bay right)
6Body harness No. 2(Rear body)
7Back door harness(Tailgate)
8Rear speaker harness(Rear roof / parcel shelf)
9Rear door harness L.H. (5-door model)(Rear left door)
10Rear sensor harness(Rear underbody)
11Front door harness L.H.(Front left door)
12Main harness(Cabin centre floor)
13Engine harness(Engine block)
14Engine room harness L.H.(Engine bay left)
