DTC P0500 VEHICLE SPEED SENSOR (VSS) - DTC Confirmation Procedure (Cont'd)

EF & EC-7197prose procedure

CG10, CGA3

DTC Confirmation Procedure (Cont'd)

1
Start engine
2

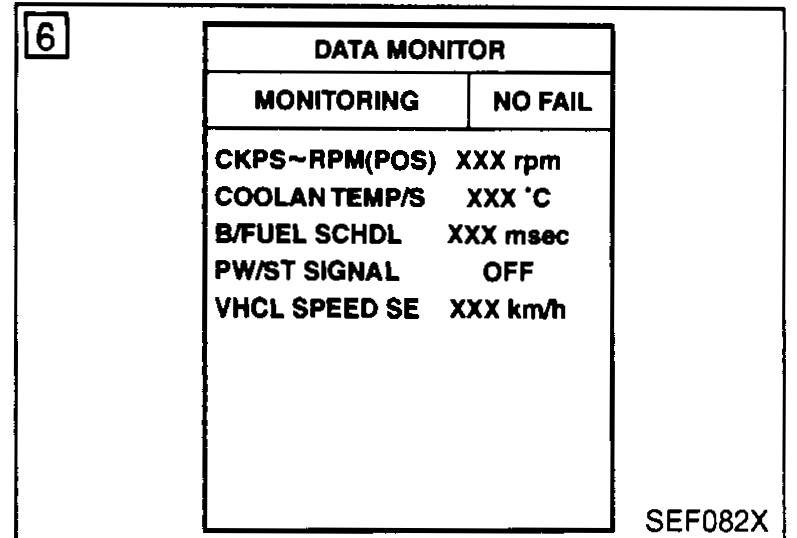

Read vehicle speed sensor signal in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
SEF082X
3
If NG, go to "Diagnostic Procedure", EC-7199. If OK, go to following step.
4
Select "DATA MONITOR" mode with CONSULT-II.
5
Warm engine up to normal operating temperature.
6
Maintain the following conditions for at least 13 consecutive seconds.
7
If 1st trip DTC is detected, go to "Diagnostic Procedure", EC-7199.

Parameter	Value
ENG. SPEED	More than 2,000 rpm (M/T); More than 3,000 rpm (CVT)
B/FUEL SCHDL	More than 2.2 msec.
Selector lever	Suitable position

ENG. SPEED

ValueMore than 2,000 rpm (M/T); More than 3,000 rpm (CVT)

B/FUEL SCHDL

ValueMore than 2.2 msec.

Selector lever

ValueSuitable position

IMPORTANT

Drive vehicle more than 10 kw/h at least 3 seconds and stop.

1
Lift up drive wheels.
2
Start engine.
3
Read vehicle speed sensor signal in "MODE 1" with GST. The vehicle speed sensor on GST should be able to exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
4
If NG, go to "Diagnostic Procedure", EC-7199.
