ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION — CONSULT-II Inspection Procedure

EF & EC-7039prose procedure

CONSULT-II

CG10, CGA3

CONSULT-II Inspection Procedure

  1. 1
    Turn ignition switch OFF.
  2. 2

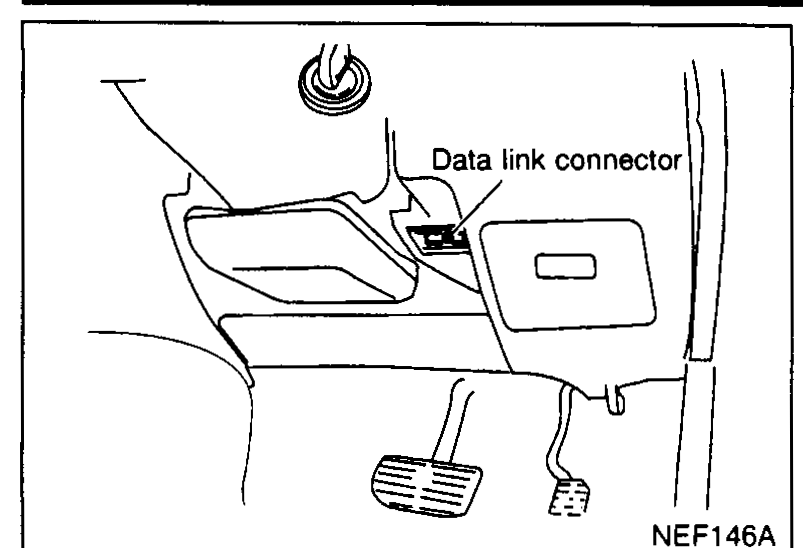

    Connect CONSULT-II to data link connector which is located side of the fuse block cover.
    Driver footwell with data link connector beside fuse block cover.
    NEF146A
  3. 3
    Turn ignition switch ON.
  4. 4

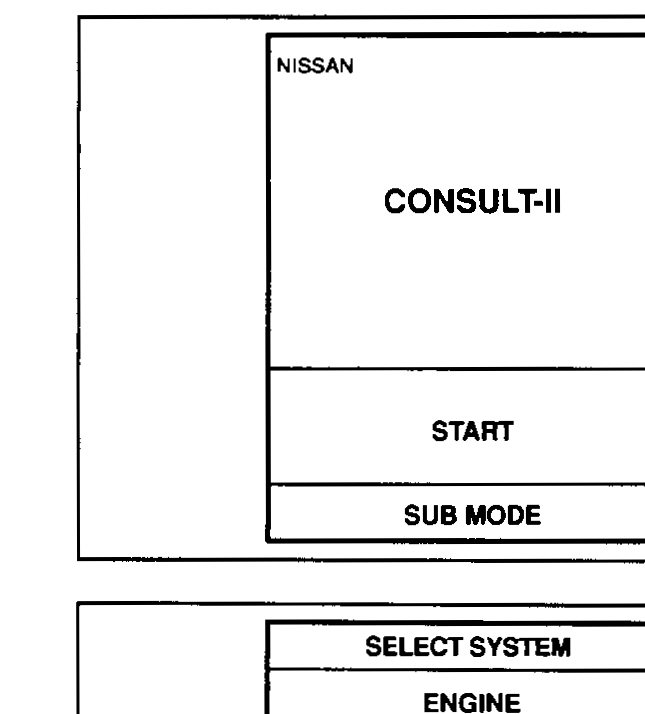

    Touch "START".
    CONSULT-II initial screen with NISSAN/CONSULT-II/START/SUB MODE.
    PBR455D
  5. 5
    Touch "ENGINE".
    CONSULT-II SELECT SYSTEM screen with ENGINE highlighted.
    SEF995X
  6. 6
    Perform each diagnostic test mode according to each service procedure.
    CONSULT-II SELECT DIAG MODE menu: WORK SUPPORT, SELF-DIAG RESULTS, DATA MONITOR, DATA MONITOR (SPEC), ACTIVE TEST, DTC & SRT CONFIRMATION, ECM PART NUMBER.
    SEF824Y
