DTC P0141 HEATED OXYGEN SENSOR 2 HEATER (REAR) - Diagnostic Procedure (Cont'd) / Component Inspection

EF & EC-7153flowchart

Continued from EF & EC-7152

Diagnostic Procedure (Cont'd)

DTC P0141 Heated Oxygen Sensor 2 Heater (Rear) Diagnostic Procedure (Cont'd)

5. CHECK HEATED OXYGEN SENSOR 2 HEATER (REAR) Refer to "Component Inspection", EC-7153.

Replace heated oxygen sensor 2 (rear).

6. CHECK INTERMITTENT INCIDENT Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT", EC-7070.

INSPECTION END

Component Inspection

HEATED OXYGEN SENSOR HEATER 2 (REAR)

Heated Oxygen Sensor Heater 2 (Rear) Inspection

1
Check resistance between terminals 1 and 4. Resistance: 2.3 - 4.3 ohm at 25 deg C (77 deg F)

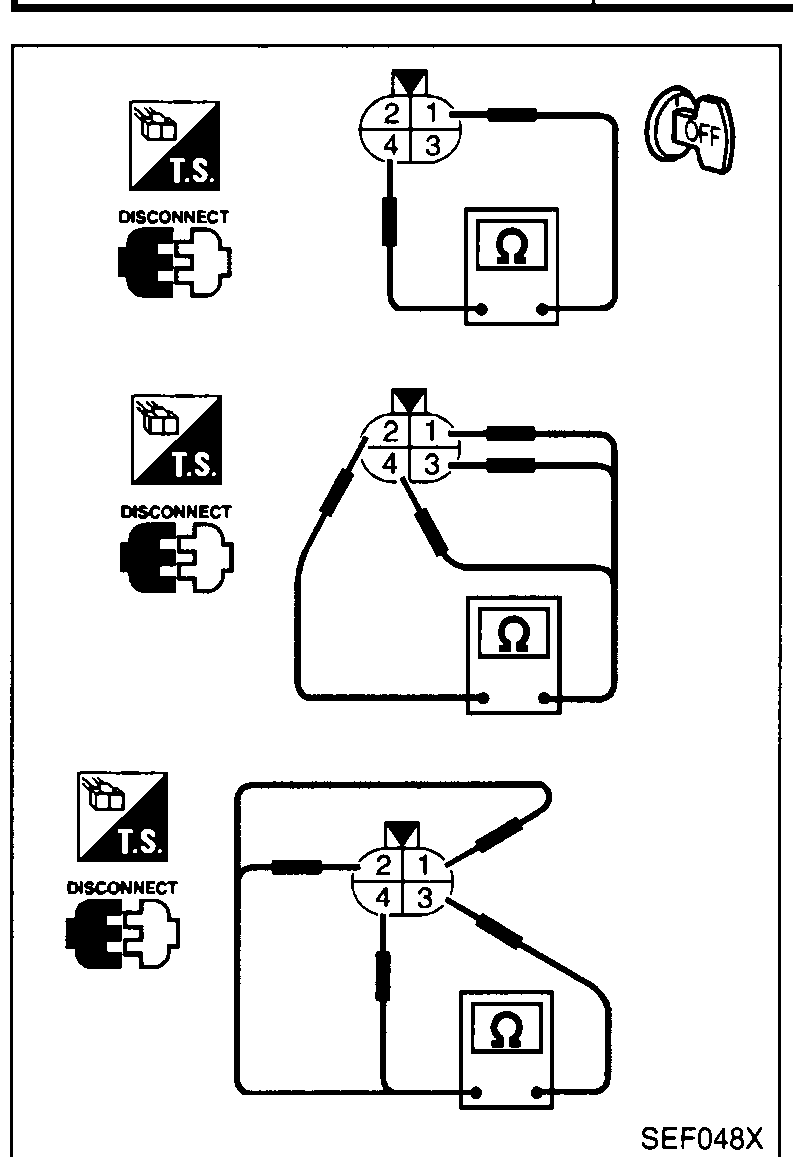

SEF048X
2
Check continuity.

Heated Oxygen Sensor 2 (Rear) Heater Continuity Check

Terminal No.	Continuity
2 and 1, 3, 4	No
3 and 1, 2, 4	No

2 and 1, 3, 4

ContinuityNo

3 and 1, 2, 4

ContinuityNo

If NG, replace the heated oxygen sensor 2 (rear).

CAUTION

Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
