DTC P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE (CIRCUIT) - Diagnostic Procedure (Cont'd) / Component Inspection

EF & EC-7195flowchart
Continued from EF & EC-7194
CG10, CGA3

Diagnostic Procedure (Cont'd)

Diagnostic Procedure - Steps 4 to 5

1
4. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE: Refer to "Component Inspection" EC-7195.
2
OK or NG
NG
Replace EVAP canister purge volume control solenoid valve.
OK (GO TO 5)
3
5. CHECK INTERMITTENT INCIDENT: Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT", EC-7070.
INSPECTION END

Component Inspection

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

With CONSULT-II

EVAP Valve Inspection with CONSULT-II

  1. 1
    Start engine.
  2. 2
    Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II. Check that engine speed varies according to the valve opening. If OK, inspection end. If NG, go to following step.
    CONSULT-II ACTIVE TEST screen showing PURG VOL CONT/V XXX%, MONITOR CKPS-RPM(POS) XXX rpm, FR O2 MNTR RICH, A/F ALPHA XXX%, THRTL POS SEN XXX V
    078X
  3. 3
    Check air passage continuity.

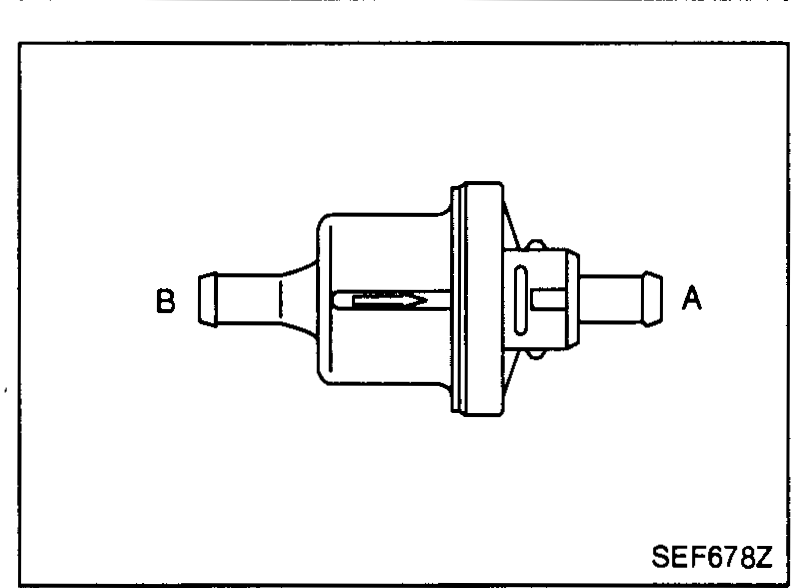

    EVAP canister purge volume control solenoid valve with ports A and B labeled
    SEF678Z

Air Passage Continuity (CONSULT-II)

100.0%
Air passage continuity between A and BYes
0.0%
Air passage continuity between A and BNo
If NG, replace the EVAP canister purge volume control solenoid valve.

Without CONSULT-II

Check air passage continuity.

Air Passage Continuity (Without CONSULT-II)

12V direct current supply between terminals
Air passage continuity between A and BYes
No supply
Air passage continuity between A and BNo
If NG or operation takes more than 1 second, replace solenoid valve.
