ENGINE AND EMISSION CONTROL OVERALL SYSTEM — Engine Control Component Parts Location
EF & EC-7011component photoEngine Control Component Parts Location
CG10, CGA3

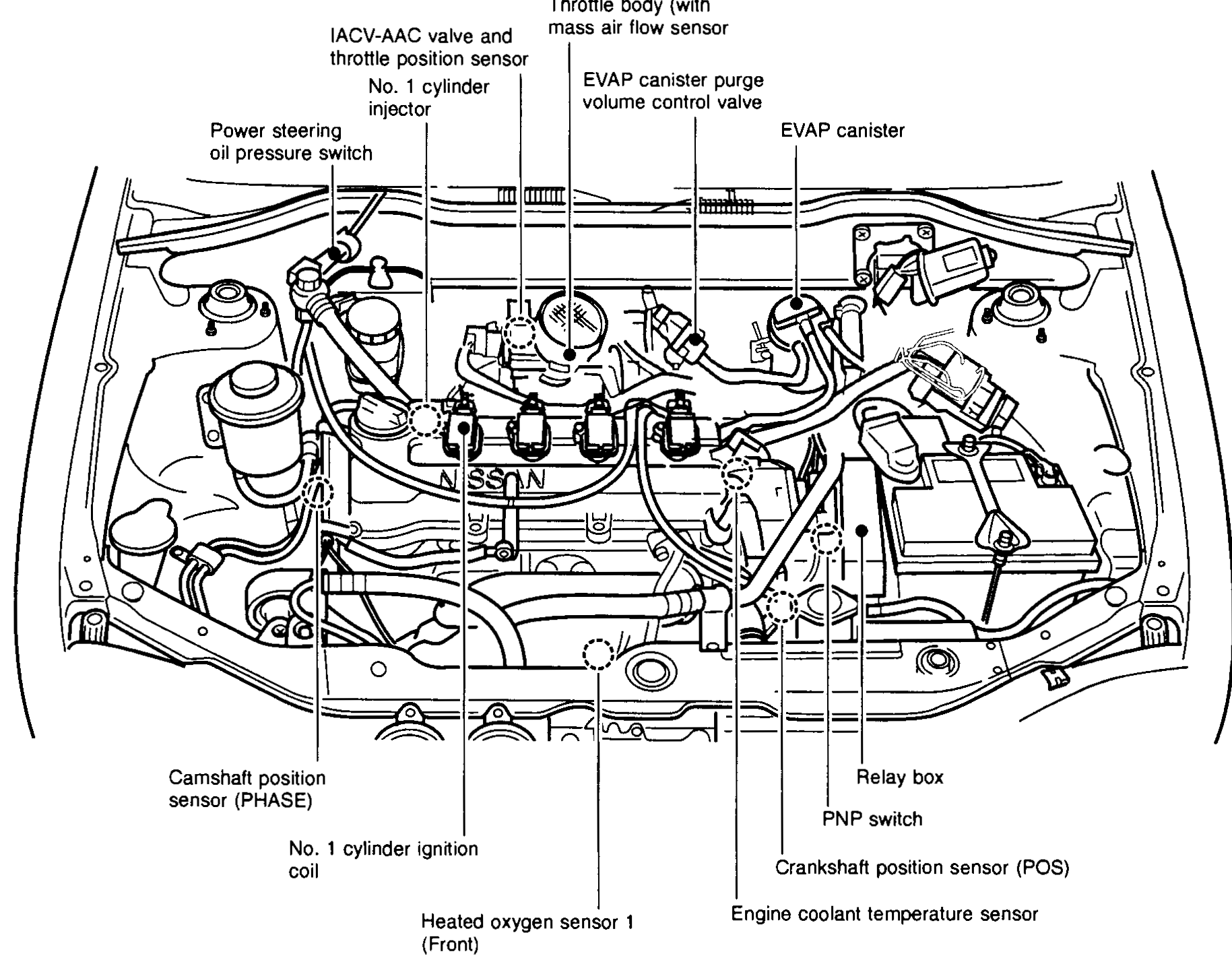

Component LocationFig. fig1
Engine bay showing locations of engine control component parts.
NEF144A
1Power steering oil pressure switch(front-left of engine bay)
2IACV-AAC valve and throttle position sensor(top-center on intake manifold)
3No. 1 cylinder injector(top of engine)
4Throttle body (with mass air flow sensor)(top-center)
5EVAP canister purge volume control valve(right side of engine bay)
6EVAP canister(right side of engine bay)
7Camshaft position sensor (PHASE)(lower-left of engine)
8No. 1 cylinder ignition coil(top of engine, near cylinder 1)
9Heated oxygen sensor 1 (Front)(exhaust manifold area)
10Engine coolant temperature sensor(lower-right of engine)
11Crankshaft position sensor (POS)(lower-right of engine)
12Relay box(right side of engine bay)
13PNP switch(right side of engine bay)
