ENGINE AND EMISSION BASIC CONTROL SYSTEM DESCRIPTION — Evaporative Emission System (Cont'd); EVAP Canister Purge Volume Control Solenoid Valve
EF & EC-7022prose procedureEvaporative Emission System (Cont'd)
CG10, CGA3
Fuel Tank Vacuum Relief Valve (Built into fuel filler cap)
Fuel Tank Vacuum Relief Valve check
- 1Wipe clean valve housing.

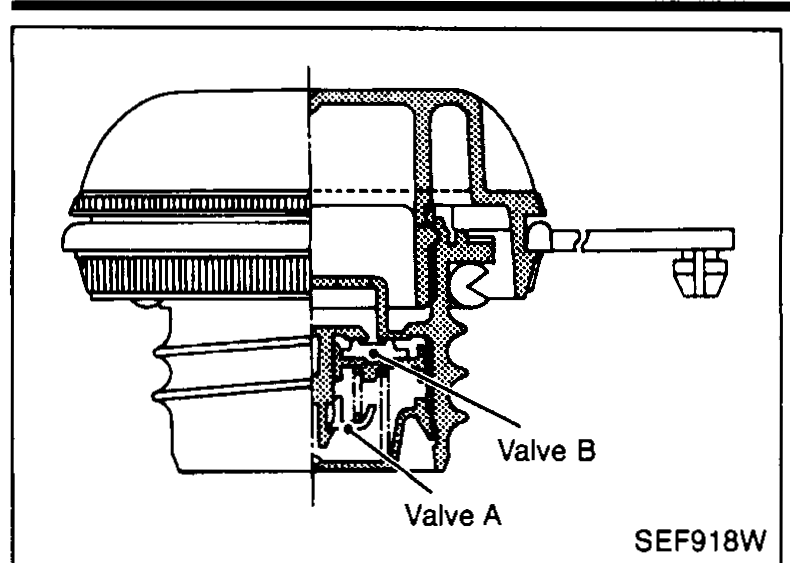

SEF918W - 2Check valve opening pressure and vacuum.
SEF943S - 3If out of specification, replace fuel filler cap as an assembly.
| Specification | Value |
|---|---|
| Pressure(0.16 - 0.20 bar, 0.163 - 0.204 kg/cm², 2.32 - 2.90 psi) | 16.0 - 20.0kPa |
| Vacuum(-0.060 to -0.035 bar, -0.061 to -0.036 kg/cm², -0.87 to -0.51 psi) | -6.0 to -3.5kPa |
Pressure(0.16 - 0.20 bar, 0.163 - 0.204 kg/cm², 2.32 - 2.90 psi)
16.0 - 20.0kPa
Vacuum(-0.060 to -0.035 bar, -0.061 to -0.036 kg/cm², -0.87 to -0.51 psi)
-6.0 to -3.5kPa
Evaporative Emission (EVAP) Canister Purge Volume Control Solenoid Valve
Refer to EC-7191.
