BASIC SERVICE PROCEDURE — Injector (Cont'd)
EF & EC-7026prose procedureInjector (Cont'd)
CG10, CGA3
Injector removal and installation (Cont'd)
- 7Align protrusions of fuel tubes with those of fuel injectors. Insert fuel injectors straight into fuel tubes.

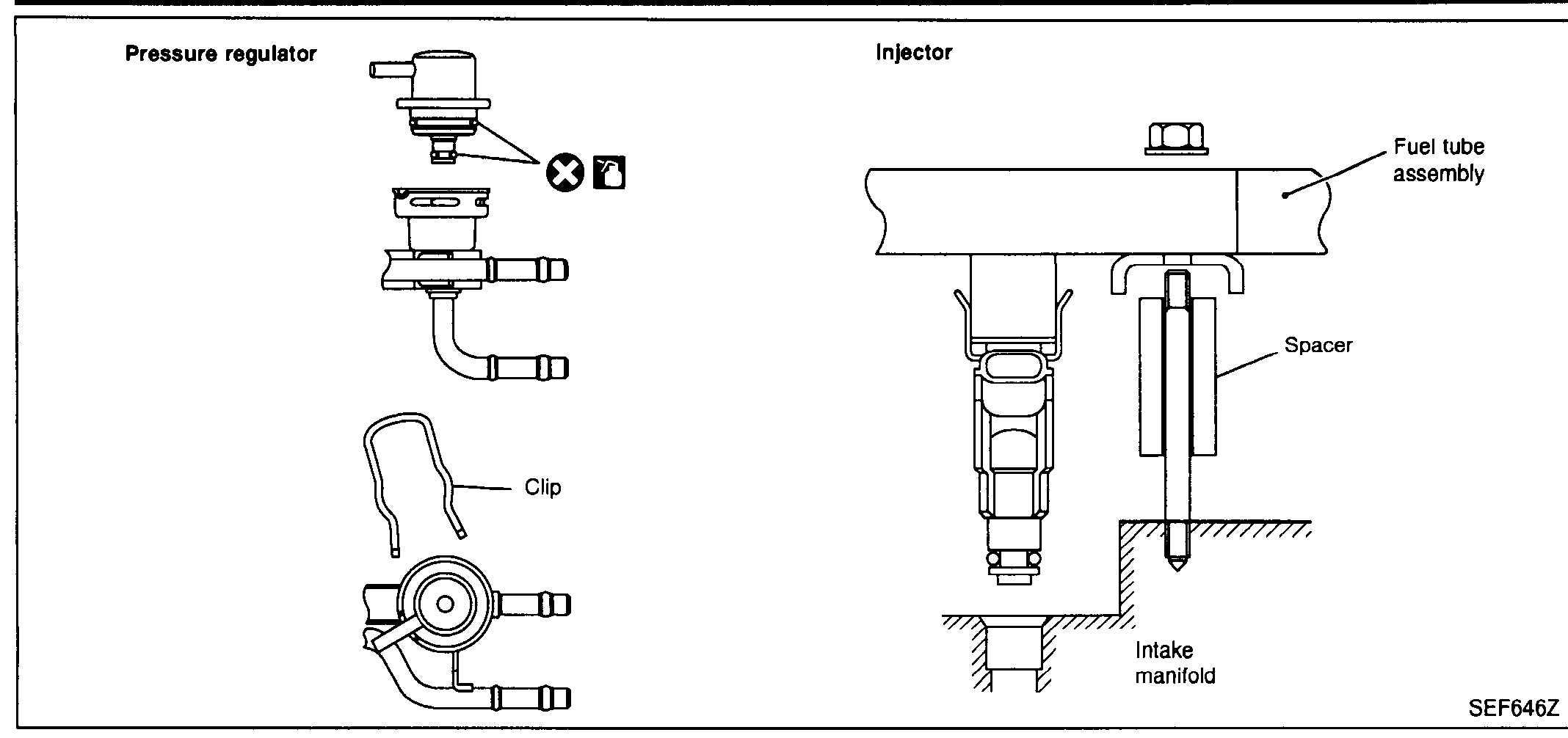

SEF646Z - 8After properly inserting fuel injectors, check to make sure that fuel tube protrusions are engaged with those of fuel injectors, and that flanges of fuel tubes are engaged with clips.
- 9Tighten fuel tube assembly mounting nuts in numerical sequence (indicated in the Figure at left) and in two stages.
SEF645Z - 10Insert fuel hoses into fuel tubes so that ends of fuel hoses butt up against fuel tubes; fasten with clamps, avoiding bulges.
| Specification | Value |
|---|---|
| Tightening torque 1st stage | 12 - 13N·m |
| Tightening torque 2nd stage | 17 - 23N·m |
Tightening torque 1st stage
12 - 13N·m
Tightening torque 2nd stage
17 - 23N·m
CAUTION
After properly connecting fuel tube assembly to injector and fuel hose, check connection for fuel leakage.
