ENGINE AND EMISSION CONTROL OVERALL SYSTEM — Engine Control Component Parts Location (Cont'd)

EF & EC-7013component photo

Engine Control Component Parts Location (Cont'd)

CG10, CGA3

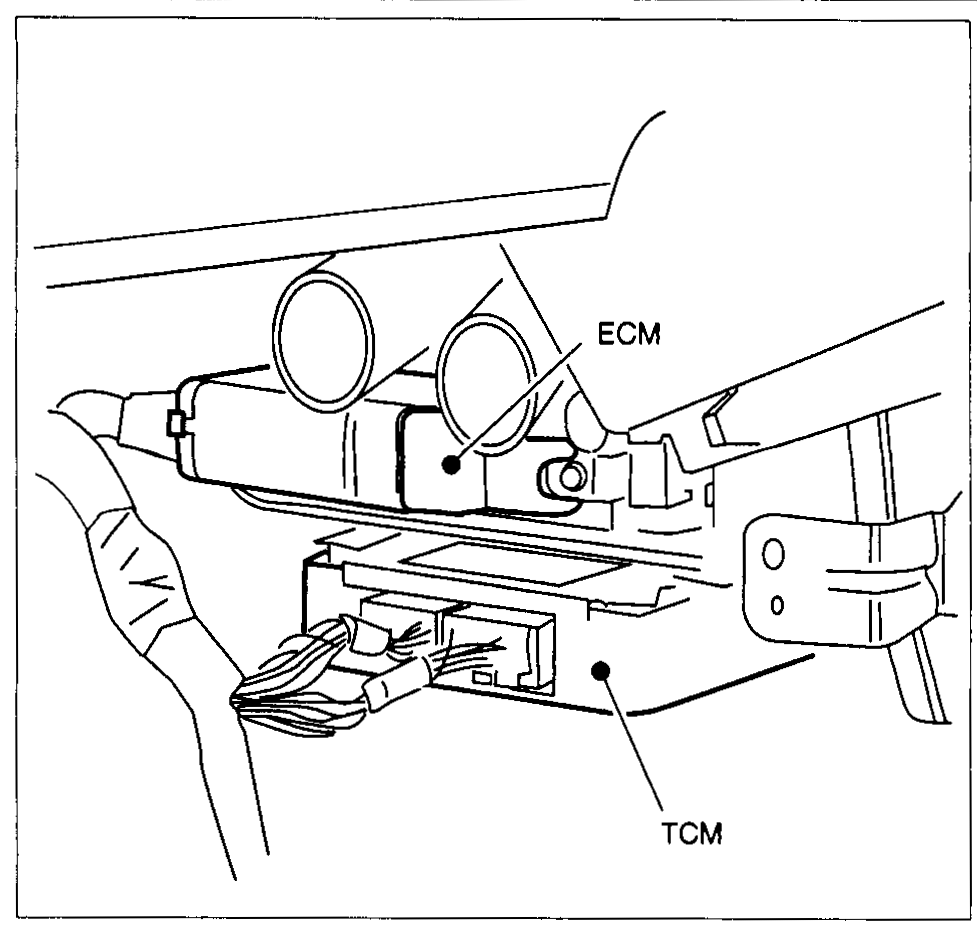

Component LocationFig. fig1

ECM and TCM under instrument panel.

1ECM(upper-right)

2TCM(lower-right)

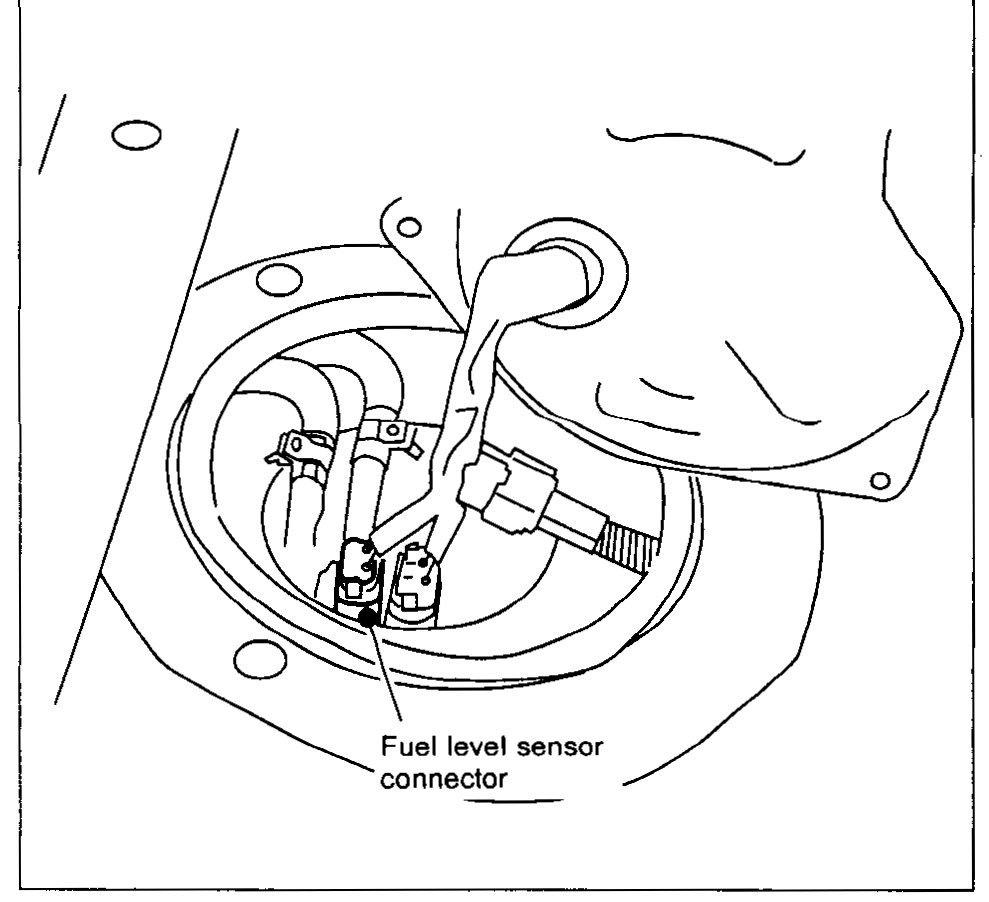

Component LocationFig. fig2

Fuel level sensor connector.

1Fuel level sensor connector(center)

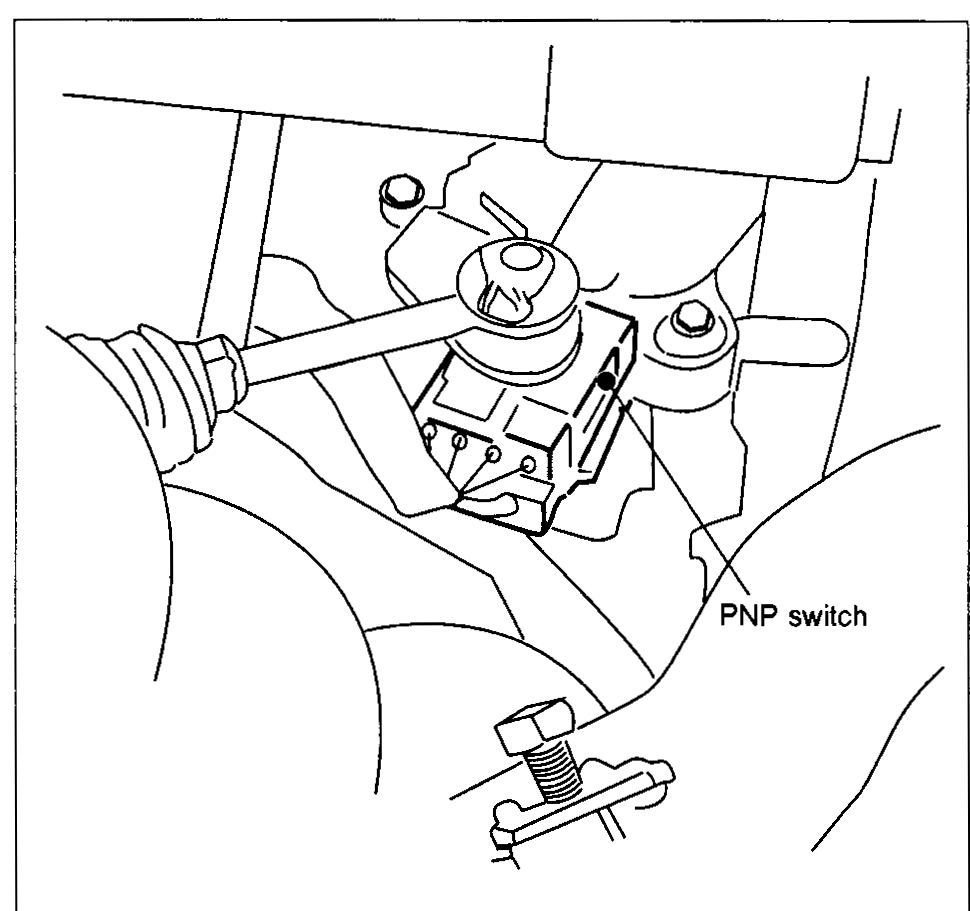

Component LocationFig. fig3

PNP switch on transmission.

1PNP switch(lower-center)

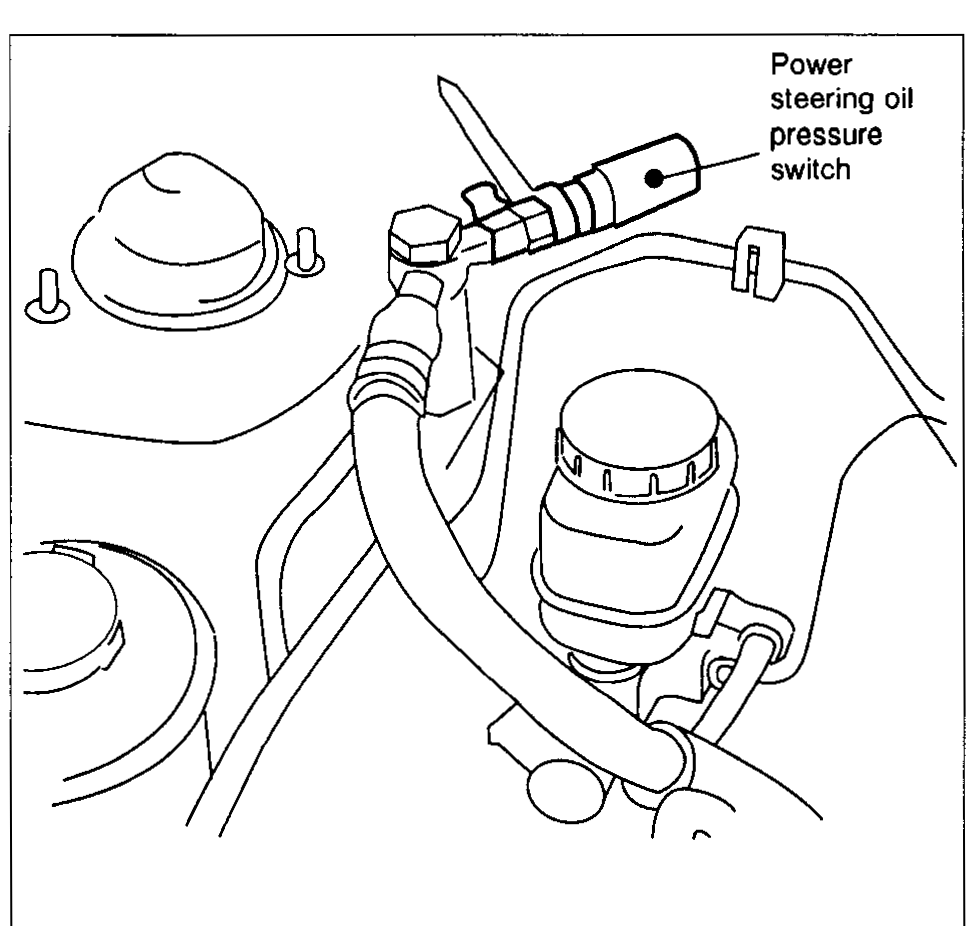

Component LocationFig. fig4

Power steering oil pressure switch.

1Power steering oil pressure switch(upper-right)

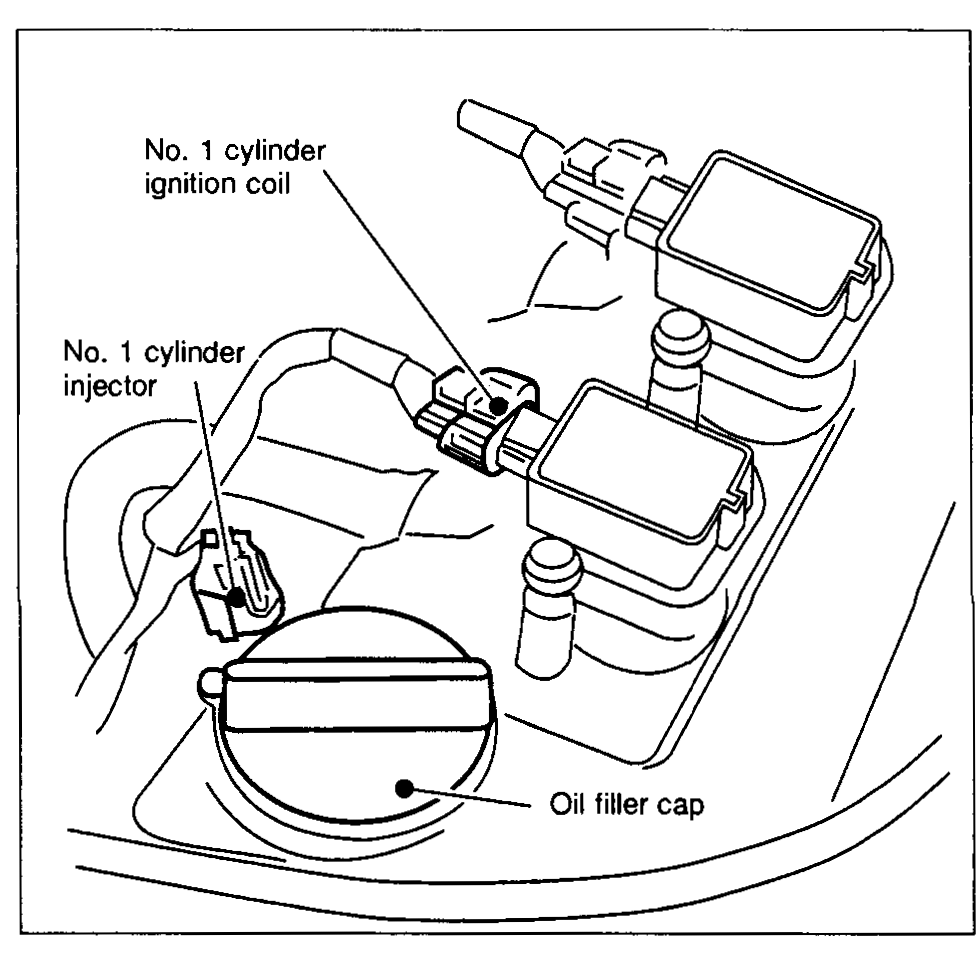

Component LocationFig. fig5

Cylinder 1 ignition coil and injector area.

NEF143A

1No. 1 cylinder ignition coil(upper-center)

2No. 1 cylinder injector(left)

3Oil filler cap(bottom-center)
