Idle Speed/Ignition Timing/Idle Mixture Ratio Adjustment

CG10, CGA3

DIRECT IGNITION SYSTEM — HOW TO CHECK IDLE SPEED AND IGNITION TIMING

Idle Speed

- Using CONSULT-II Check idle speed in "DATA MONITOR" mode with CONSULT-II.

Ignition Timing

Any of following two methods may be used.

Method A

  1. 1
    Attach timing light to loop wire as shown.

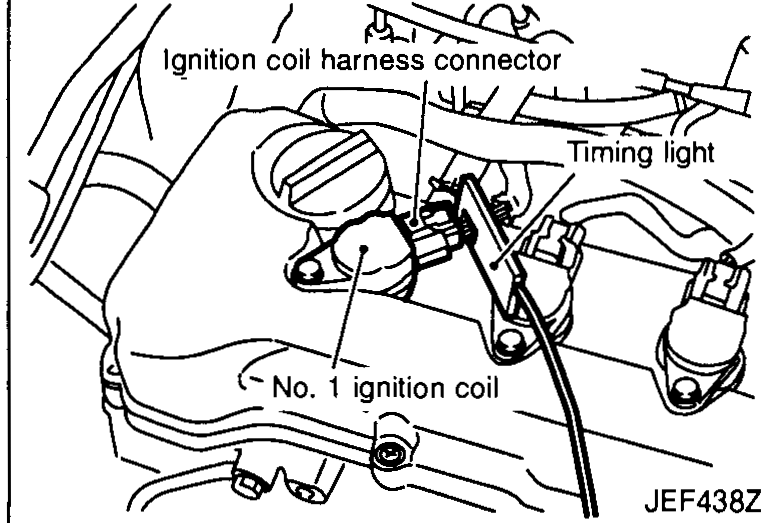

    Method A — timing light attached to loop wire near No. 1 ignition coil harness connector.
    JEF438Z
  2. 2
    Check ignition timing.

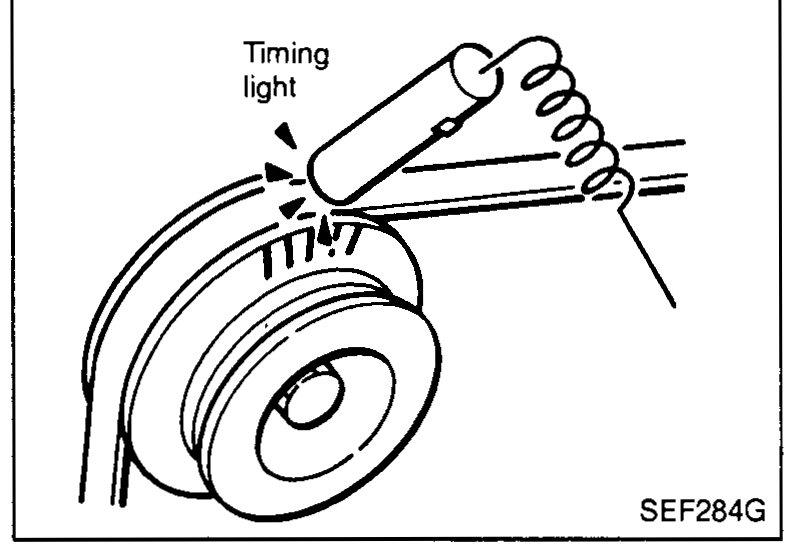

    Timing light pointed at crank pulley timing mark.
    SEF284G

Method B

  1. 1
    Remove No. 1 ignition coil.
    Method B — No. 1 ignition coil with timing light clamp on suitable high-tension wire to No. 1 spark plug.
    SEF933W
  2. 2

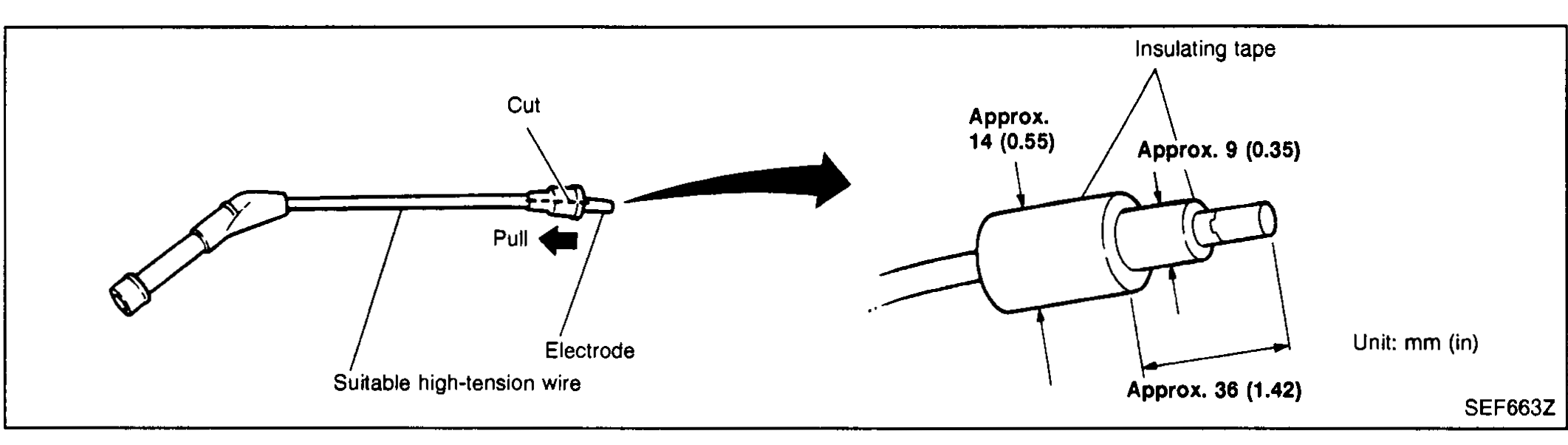

    Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
  3. 3
    Check ignition timing.
