Trouble Diagnoses - Consult

EF & EC-43prose procedure
Continued from EF & EC-42

Consult

CONSULT INSPECTION PROCEDURE

  1. 1
    Turn off ignition switch.
  2. 2
    Connect "CONSULT" to diagnostic connector. (Diagnostic connector is located behind the fuse box cover.)

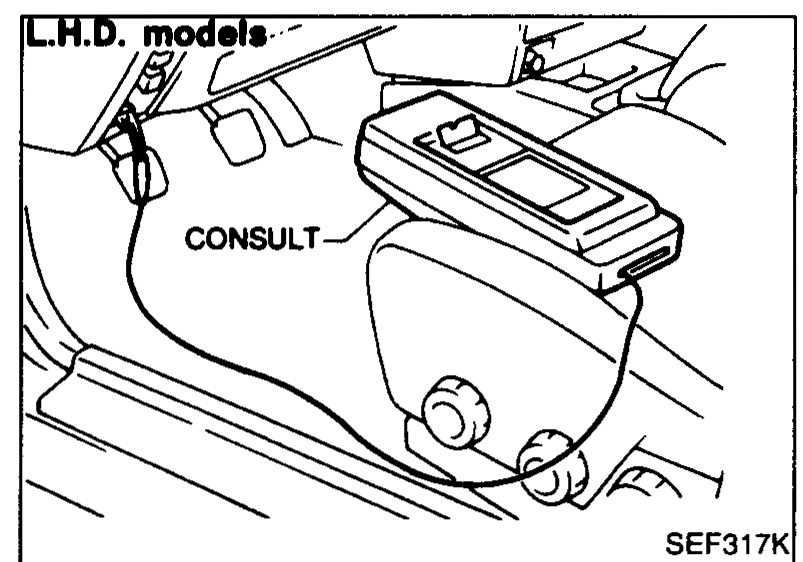

    L.H.D. models showing CONSULT diagnostic tool connected behind the fuse box cover.
    SEF317K
  3. 3
    Turn on ignition switch.
  4. 4
    Touch "START".
    NISSAN CONSULT main screen showing START and SUB MODE buttons.
    SEF392I
  5. 5
    Select diagnostic system required.

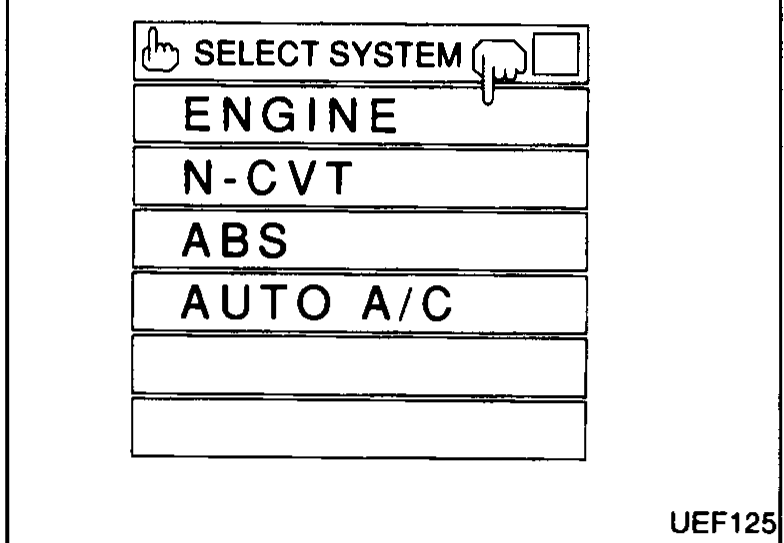

    CONSULT SELECT SYSTEM screen showing ENGINE, N-CVT, ABS, AUTO A/C options.
    UEF125
  6. 6
    Perform each diagnostic mode according to the inspection sheet as follows:

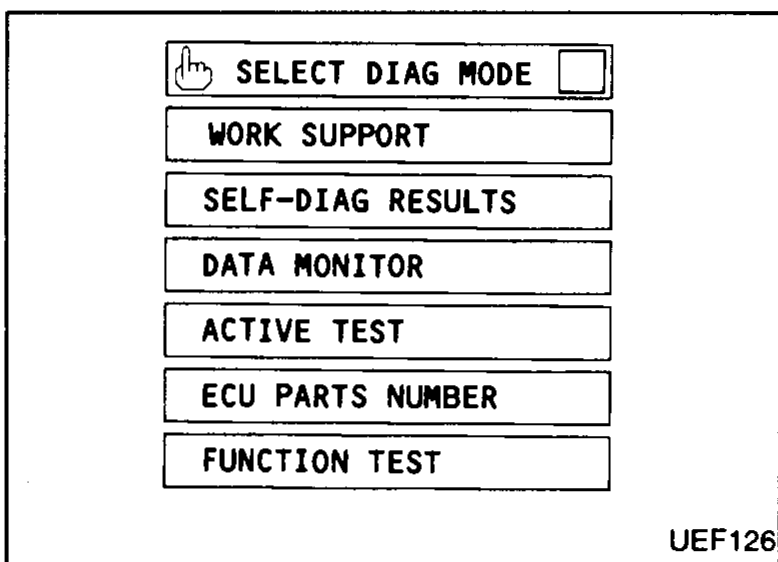

    CONSULT SELECT DIAG MODE screen showing WORK SUPPORT, SELF-DIAG RESULTS, DATA MONITOR, ACTIVE TEST, ECU PARTS NUMBER, FUNCTION TEST options.
    UEF126
