PRECAUTIONS — Precautions

EF & EC-7008prose procedure

Precautions

CG10, CGA3

1

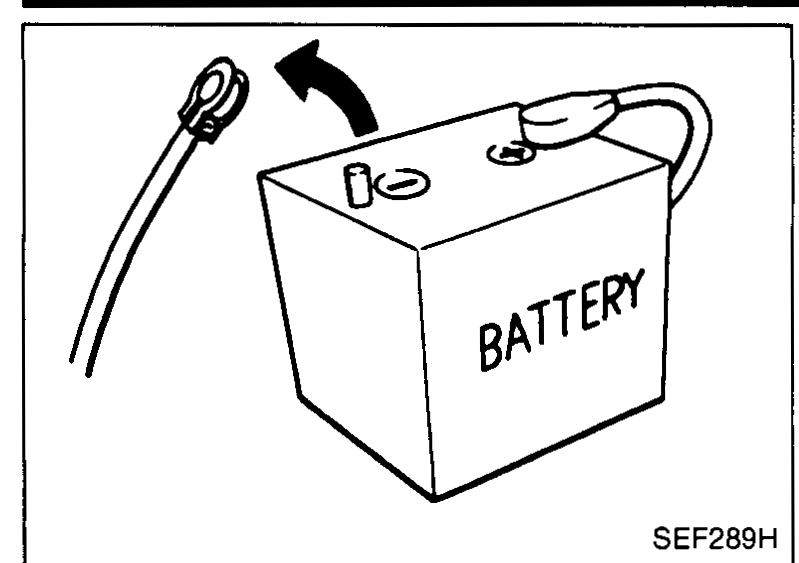

Before connecting or disconnecting the ECM harness connector, turn ignition switch OFF and disconnect negative battery terminal. Failure to do so may damage the ECM because battery voltage is applied to ECM even if ignition switch is turned off.
SEF289H
2
When connecting or disconnecting ECM harness connector, use lever as shown. When connecting, fasten connector securely with lever moved until it stops.
NEF163A
3

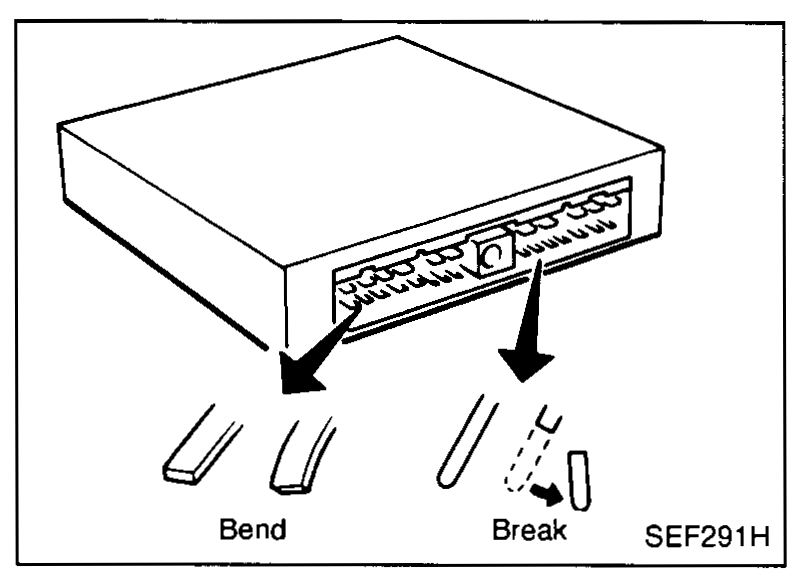

When connecting or disconnecting pin connectors into or from ECM, take care not to damage pin terminals (bend or break). Make sure that there are not any bends or breaks on ECM pin terminals when connecting pin connectors.
SEF291H
4
Before replacing ECM, perform Terminals and Reference Value inspection and make sure ECM functions properly. Refer to EC-7064.
MEF040D
5
After performing each TROUBLE DIAGNOSIS, perform "Overall Function Check" or "DTC Confirmation Procedure". The DTC should not be displayed in the "DTC Confirmation Procedure" if the repair is completed. The "Overall Function Check" should be a good result if the repair is completed.
SAT652J
