CYLINDER HEAD — Installation (Cont'd)

EM-7021prose procedure
Continued from EM-7020

Installation (Cont'd)

Installation (continued)

  1. 15

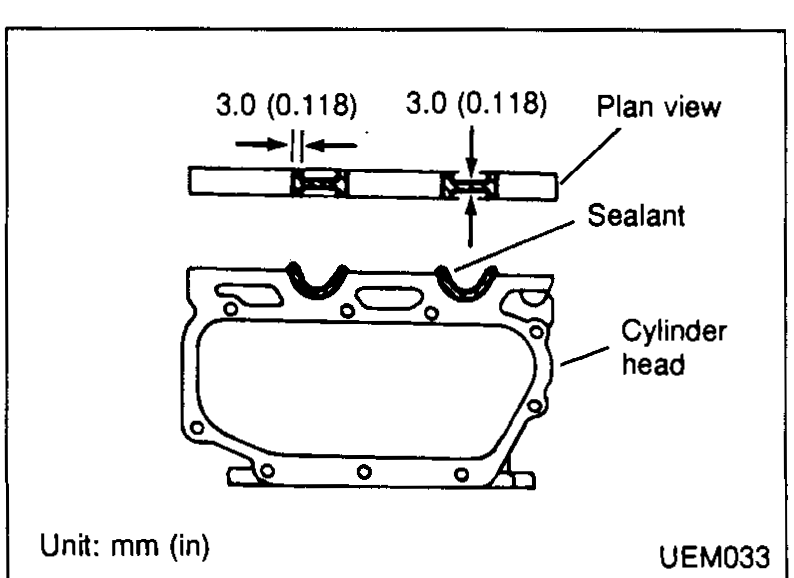

    Apply liquid gasket to the cylinder head as shown. Fit the gasket to the cover.
    Sealant bead width 3.0 mm (0.118 in) at front and rear arches.
    Plan view of the cylinder head showing two sealant bead locations at the front and rear arches, each 3.0 mm (0.118 in) wide. Callouts: 'Plan view', 'Sealant', 'Cylinder head'. Unit: mm (in).
    UEM033
  2. 16
    Fit the rocker cover to the cylinder head.

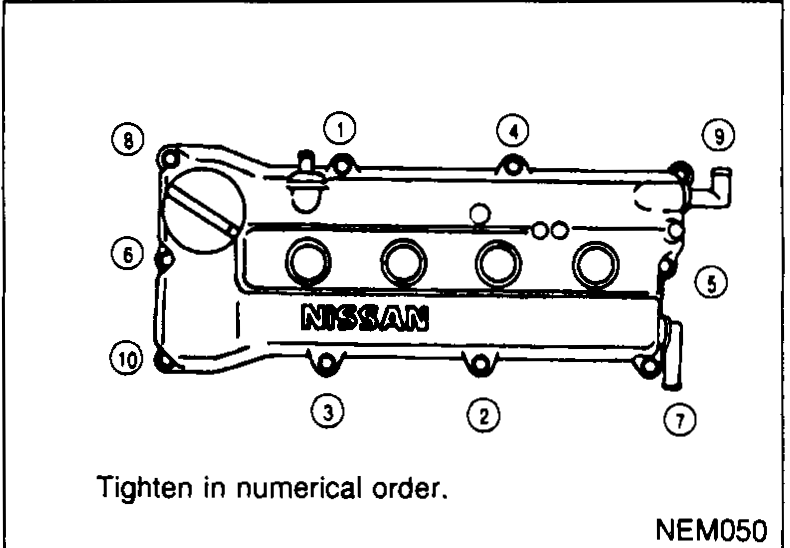

    Top view of the rocker cover showing the 10-bolt tightening sequence with callouts 1-10 around the perimeter. Caption: 'Tighten in numerical order.'
    NEM050
  3. 17
    Tighten the bolts in the correct order, as shown.
    Tighten in numerical order (1 through 10).
  4. 18
    Recheck bolts.
  5. 19
    Check a third time.
  6. 20
    Install camshaft position sensor (PHASE).
  7. 21
    Install all spark plugs and ignition coils.
  8. 22
    Install engine front mounting bracket.
  9. 23
    Install front exhaust tube.
  10. 24
    Install the front and side splashguards.
  11. 25
    Install front right wheel.
  12. 26
    Install air cleaner.
  13. 27
    Install and correctly tension the alternator and power steering drive belts. Refer to MA section for correct tension.
