Oil pan — Installation (continued)

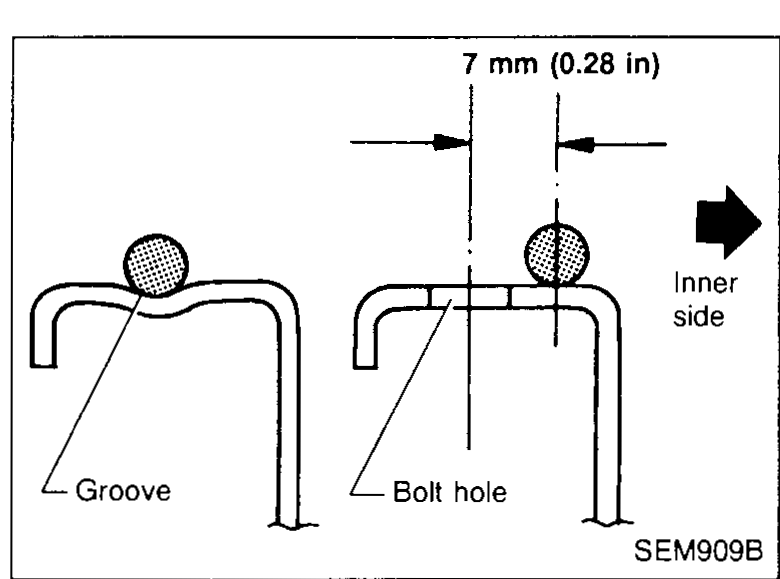

- 2Apply liquid gasket to inner sealing surface as shown at left.Bead applied 7 mm (0.28 in) inboard of each bolt hole, on the inner side of the groove.

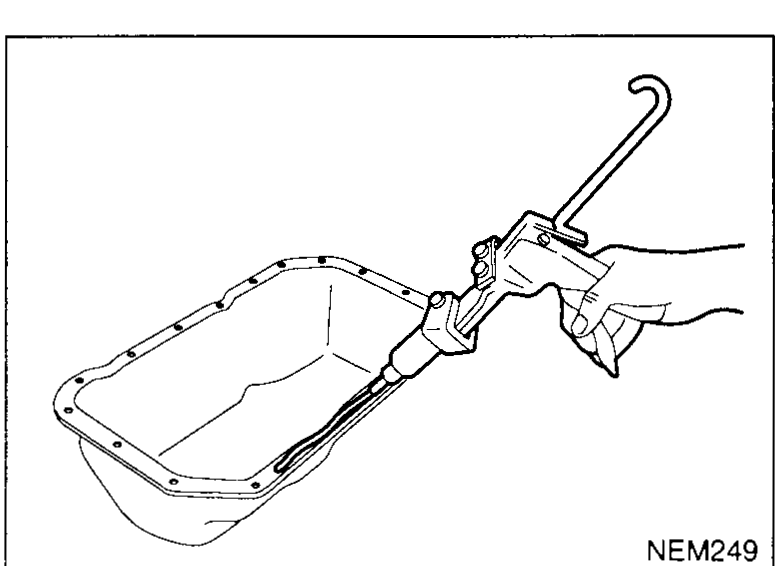

SEM909B - 3Apply a continuous bead of liquid gasket to mating surface of oil pan.Attaching should be done within 5 minutes after coating.
NEM249 - 4Install oil pan and tighten bolts gradually in two or three stages.Wait at least 30 minutes before refilling engine oil.Oil pan bolts torque: 10 N·m (1.02 kg-m, 88.5 in-lb)
| Specification | Value |
|---|---|
| Liquid gasket bead inset from bolt holesInner side of groove | 7 (0.28)mm (in) |
| Oil pan boltTighten gradually in 2 or 3 stages | ≈98N·m |
| Assembly time after coatingLiquid gasket | Within 5minutes |
| Wait before refilling oilLiquid gasket cure | At least 30minutes |
Liquid gasket bead inset from bolt holesInner side of groove
7 (0.28)mm (in)
Oil pan boltTighten gradually in 2 or 3 stages
98N·m
Assembly time after coatingLiquid gasket
Within 5minutes
Wait before refilling oilLiquid gasket cure
At least 30minutes
